HUBBELL WIRING DEVICE-KELLEMS

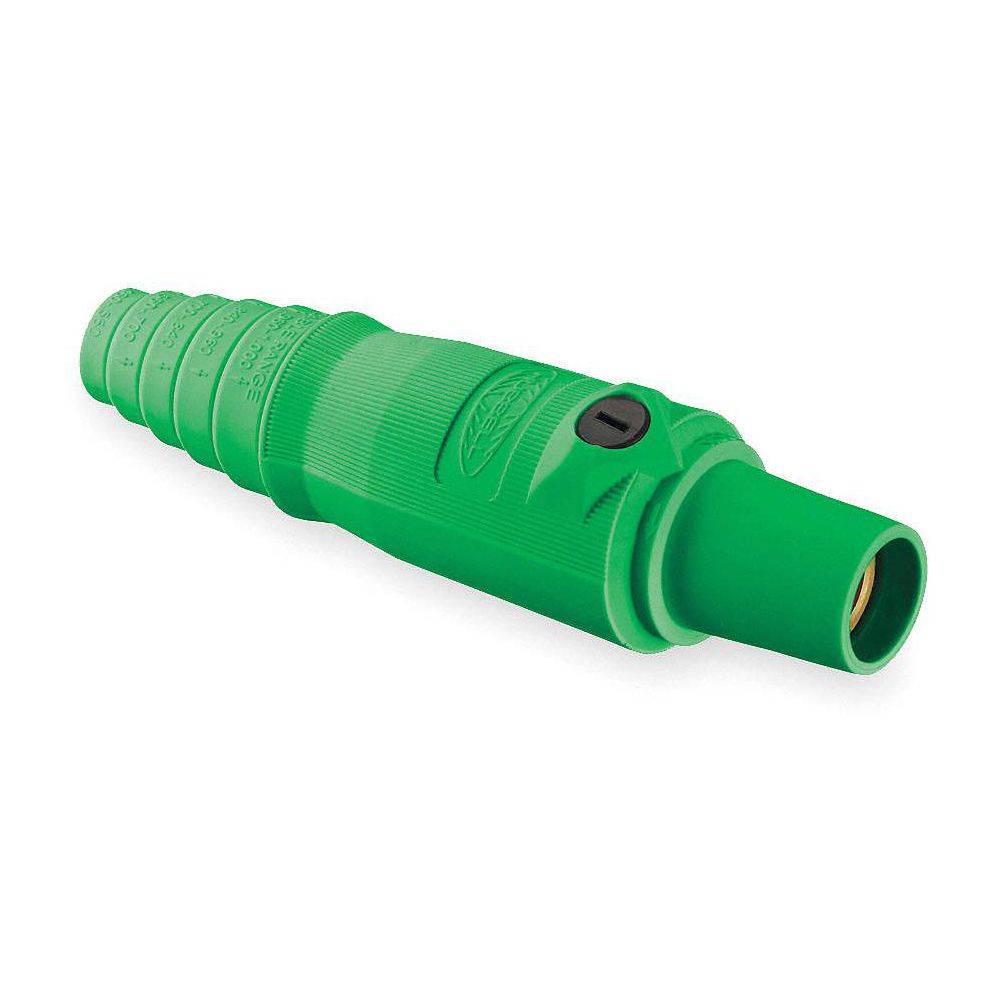

Hubbell Wiring Device-Kellems Connector, 12K, 3R, 4X NEMA Rating, 16, 300AC/DC Amps AC/DC, Taper Nose
#926040-7Pkg Qty: 1
$72.82 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
300
Amps AC/DC
300AC/DC
Brand
HUBBELL WIRING DEVICE-KELLEMS
Cable Range
6 to 2/0
Color Family
Green
Conductor Material
Brass
Item
Connector
Male/Female
Female
Mfr. Part Number
HBL300FGN
NEMA Rating
12, 3R, 4X
Package Quantity
1
Series
16
Shipping Weight
.85 lb.
Single Pole Device Style
Taper Nose
Terminal Connection
Double Set Screw
Voltage Rating
250V DC, 600V AC
Amps AC
300
Mfr. Part Number
HBL300FGN
Amps AC/DC
300AC/DC
NEMA Rating
12, 3R, 4X
Brand
HUBBELL WIRING DEVICE-KELLEMS
Package Quantity
1
Cable Range
6 to 2/0
Series
16
Color Family
Green
Shipping Weight
.85 lb.
Conductor Material
Brass
Single Pole Device Style
Taper Nose
Item
Connector
Terminal Connection
Double Set Screw
Male/Female
Female
Voltage Rating
250V DC, 600V AC
General
Compatible With
16
Compatible with Series
16
Contact Material
Brass
Contact Type
Single Cam
Current Rating
300 A
End Type
Taper Nose
Gender
Female
Housing Color
Green
Housing Material
Thermoplastic Elastomer
Material
Thermoplastic Elastomer
Material of Construction
Thermoplastic Elastomer
Maximum Wire Size
2/0 AWG
Minimum Wire Size
6 AWG
Overall Length
7.1 in.
Overall Width
1.95 in
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Terminal Connection Type
Double Set Screw
Type
Single Pole Device
UL 94 Flammability Rating
HB
Compatible With
16
Material of Construction
Thermoplastic Elastomer
Compatible with Series
16
Maximum Wire Size
2/0 AWG
Contact Material
Brass
Minimum Wire Size
6 AWG
Contact Type
Single Cam
Overall Length
7.1 in.
Current Rating
300 A
Overall Width
1.95 in
End Type
Taper Nose
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Gender
Female
Terminal Connection Type
Double Set Screw
Housing Color
Green
Type
Single Pole Device
Housing Material
Thermoplastic Elastomer
UL 94 Flammability Rating
HB
Material
Thermoplastic Elastomer
Product Description

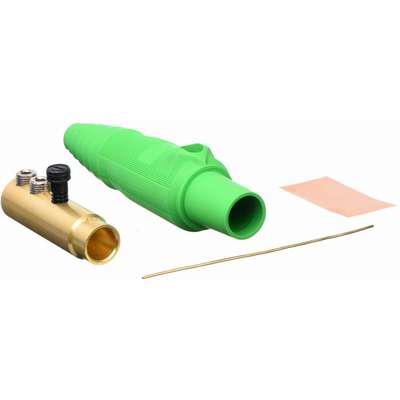

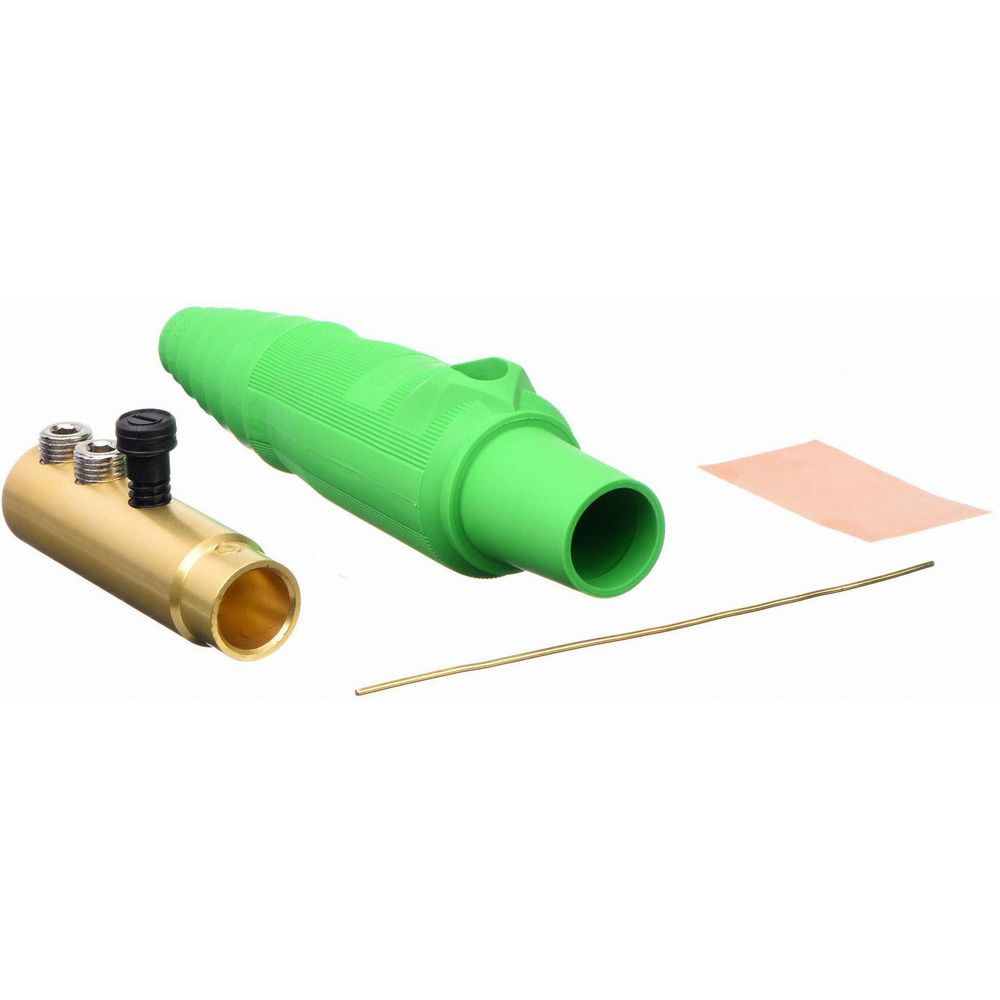

The nonmetallic retaining screw on this single pole connector is designed to lock contacts in place so they don't move within the housing. A special screw thread also helps prevent installation 180° out of rotation and requires fewer turns, reducing the chance of a conductive screw being substituted in its place. A large, raised alignment arrow helps ease mating of devices.
