SCHNEIDER ELECTRIC

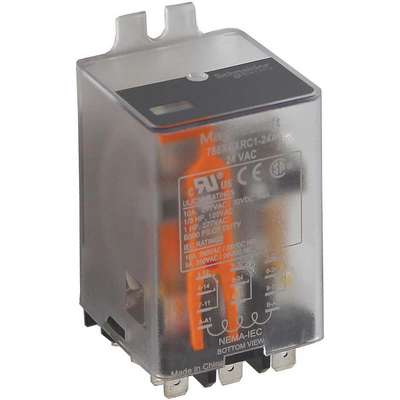

Schneider Electric 120VAC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Square

Hover over image to magnify
Plug In Relay,11 Pins,Square,
PI_Asset_3737455
PI_Asset_3737456
PI_Asset_3737457
PI_Asset_3737458
Plug In Relay,11 Pins,Square,
PI_Asset_3737455
PI_Asset_3737456
PI_Asset_3737457
PI_Asset_3737458
Schneider Electric 120VAC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Square Video

#925989-5 | Pkg Qty: 1

$25.37 pkg | $25.37 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 277 V
Mfr. Part Number
788XCXRC-120A
Base Type
Square
Mounting
Plug In
Body Depth
1.38 in.
Number of Pins
11
Body Height
1.97 in.
Number of Poles
3
Body Width
1.4 in.
Overall Height
1.97 in.
Brand
SCHNEIDER ELECTRIC
Package Quantity
1
Coil VA Rating
3
Pins
11
Coil Volts
120 VAC
Plug-In Relay Style
General Purpose
Contact Form
3PDT
Push To Test
Manual
Contact Material
Silver Alloy
Relay Power Consumption
3.0 VA
Contact Rating
10 A @ 277 VAC/30 VDC
Resistive Contact Amp Rating
10
DC Contact Rating
10 A @ 28 V
Shipping Weight
.18 lb.
Hz
50/60
Socket
Mfr. No. 70-463-1, 70-124-1, 70-124-2, 70-178-1, 70-178-2
Input Power Consumption
3.0 VA
Socket Code
C
Item
General Purpose Relay
Status Indicator
Mechanical Flag
General
AC Contact Rating - Relay
10A @ 277V
HP @ 120V
1/3 hp
Base Type - Plug In Relay
Square
HP @ 240V
1/2 hp
Body Depth - Relay
1.38 in
Mounting - Relay
Plug In
Body Height - Relay
1.97 in
Number of Pins - Relay
11
Body Width - Relay
1.4 in
Overall Height - Relay
1.97 in
Contact Form - Relay
3PDT
Power Consumption - Relay
3 VA
DC Contact Rating - Relay
10A @ 28V
Socket Code - Relay
C
Features
Clear Cover
Standards
CSA Certified, CE Marked

Product Description

General Purpose Relay, Coil Volts 120V AC, AC Contact Rating - Relay 10A @ 277V, DC Contact Rating - Relay 10A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 11, Contact Form - Relay 3PDT, Mounting - Relay Plug In, Socket Code - Relay C, Power Consumption - Relay 3.0 VA, Contact Material Silver Alloy, Status Indicator Mechanical Flag, Push To Test Manual

Item Barcode
9259895
Plug In Relay,11 Pins,Square,
 NameItemDescription
Grainger DropshipGrainger Dropship35KR65Plug In Relay,11
UNSPSC CODESUNSPSC CODES39122325
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Plug In Relay,11

For more product information by email, click here
