HUBBELL WIRING DEVICE-KELLEMS

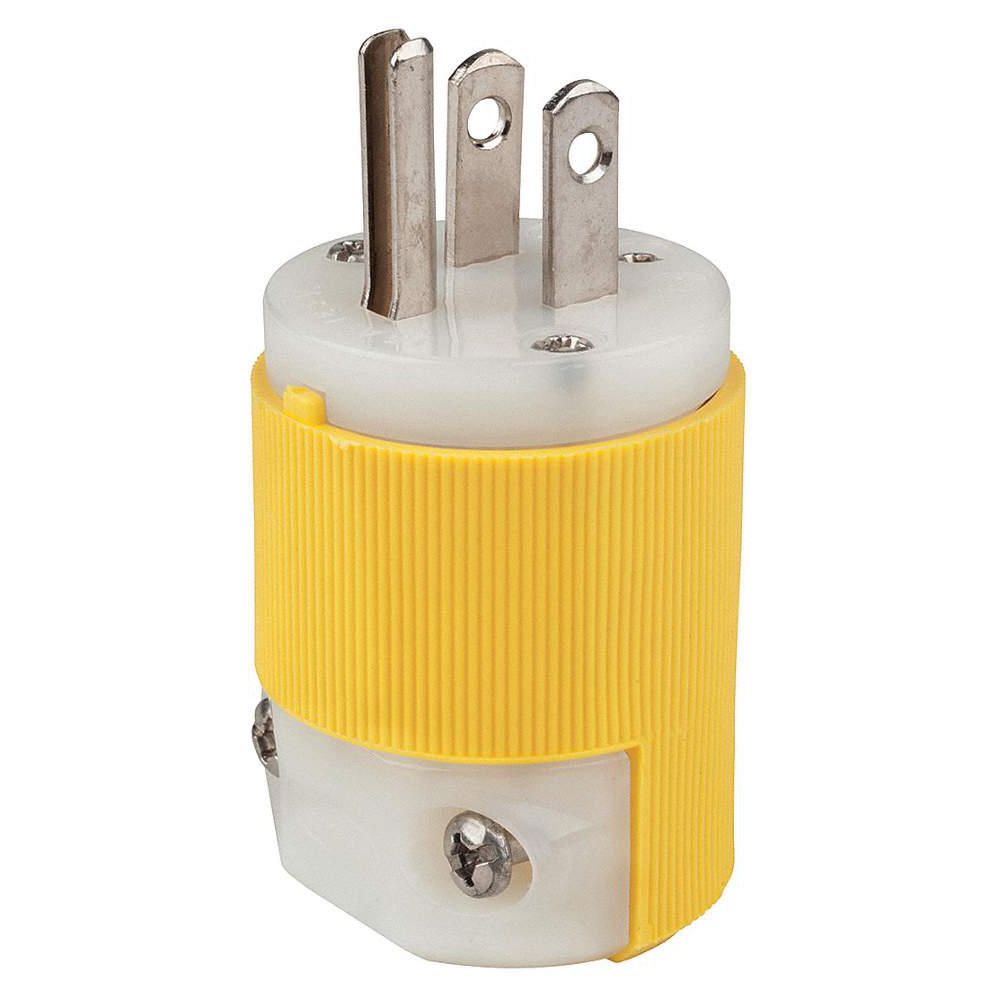

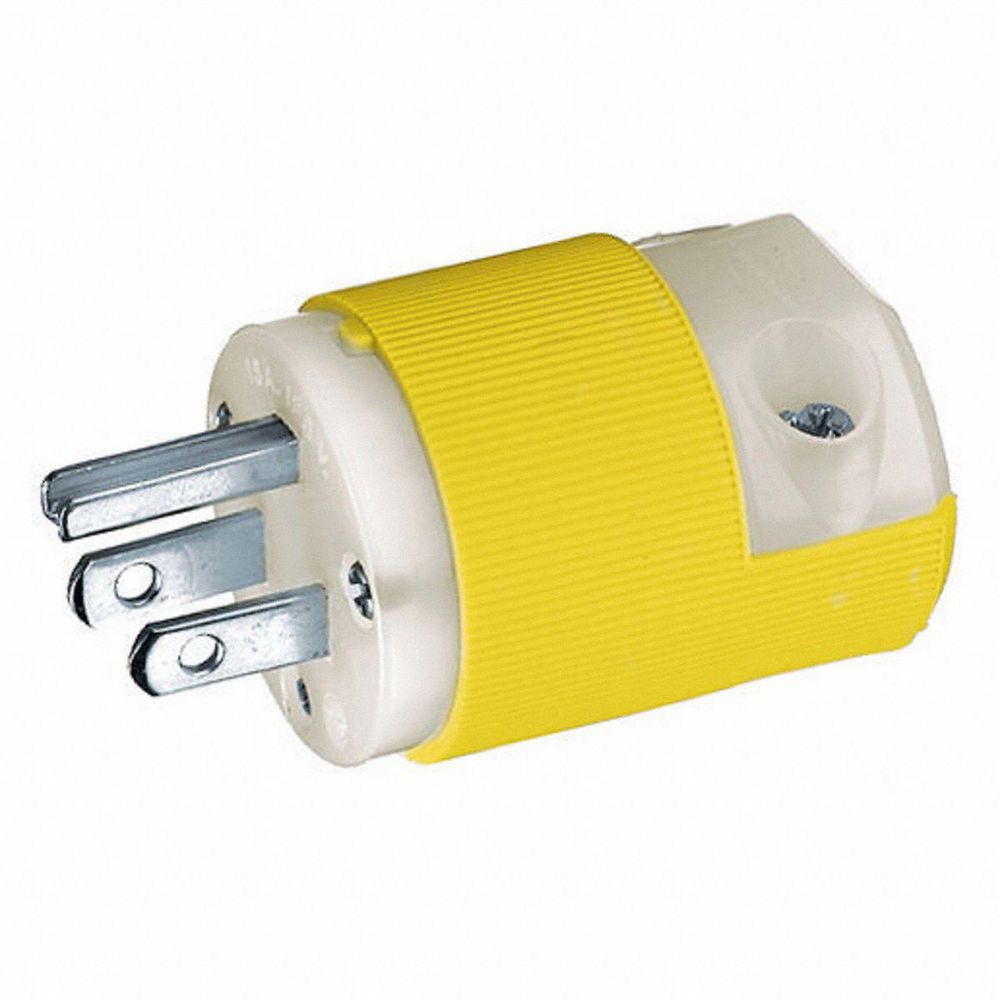

Hubbell Wiring Device-Kellems 15A Marine Grade Straight Blade Plug, Yellow; NEMA Configuration: 5-15P

Hover over image to magnify
Plug,5-15P,15A,125V
PI_Asset_1983454
Plug,5-15P,15A,125V
PI_Asset_1983454
Double tap image to magnify
Plug,5-15P,15A,125V
3D197_1
Plug,5-15P,15A,125V
3D197_1

#925916-3Pkg Qty: 1

$30.60 pkg | $30.60 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Mar 28.
|

Technical Specifications

Key Specifications
Amps
15 A
Maximum Wire Size
10 AWG
Antimicrobial
No
Mfr. Part Number
HBL52CM66C
Body Length
1.52 in.
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Color Family
Yellow
NEMA Configuration - Plugs & Connectors
5-15
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.230 in. to 0.720 in.
Number of Poles
2
Corrosion Resistant
Yes
Number of Wires
3
Current Rating
15 A
Outside Diameter
1.52 in.
Description
Insulgrip, Grounding
Package Quantity
1
Grade
Marine
Phase
Single
Grounding
Grounded
Polarized
Yes
Horsepower
1/2 hp
Shipping Weight
.2 lb.
Housing Color
Yellow
Standards
CSA Certified C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706
Housing Material
Polycarbonate
Sub-Category
Plugs
IP Rating
IP20
UL 94 Flammability Rating
HB
Insulation Material
Nylon
Voltage
125V AC
Item
Straight Blade Plug
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
Maximum Operating Temperature
75 °C
General
Amps - Plugs and Receptacles
15 A
Phase - Plugs and Receptacles
1
Grade - Plugs and Receptacles
Marine
Sub-Category
Plugs
HP
0.5
Voltage - Plugs and Receptacles
125V AC
NEMA Plug Configuration - Plugs and Receptacles
5-15P

Product Description

NEMA Straight-Blade Plugs and Connectors CSA Certified. Note: See page 611 for NEMA configurations.
