SQUARE D

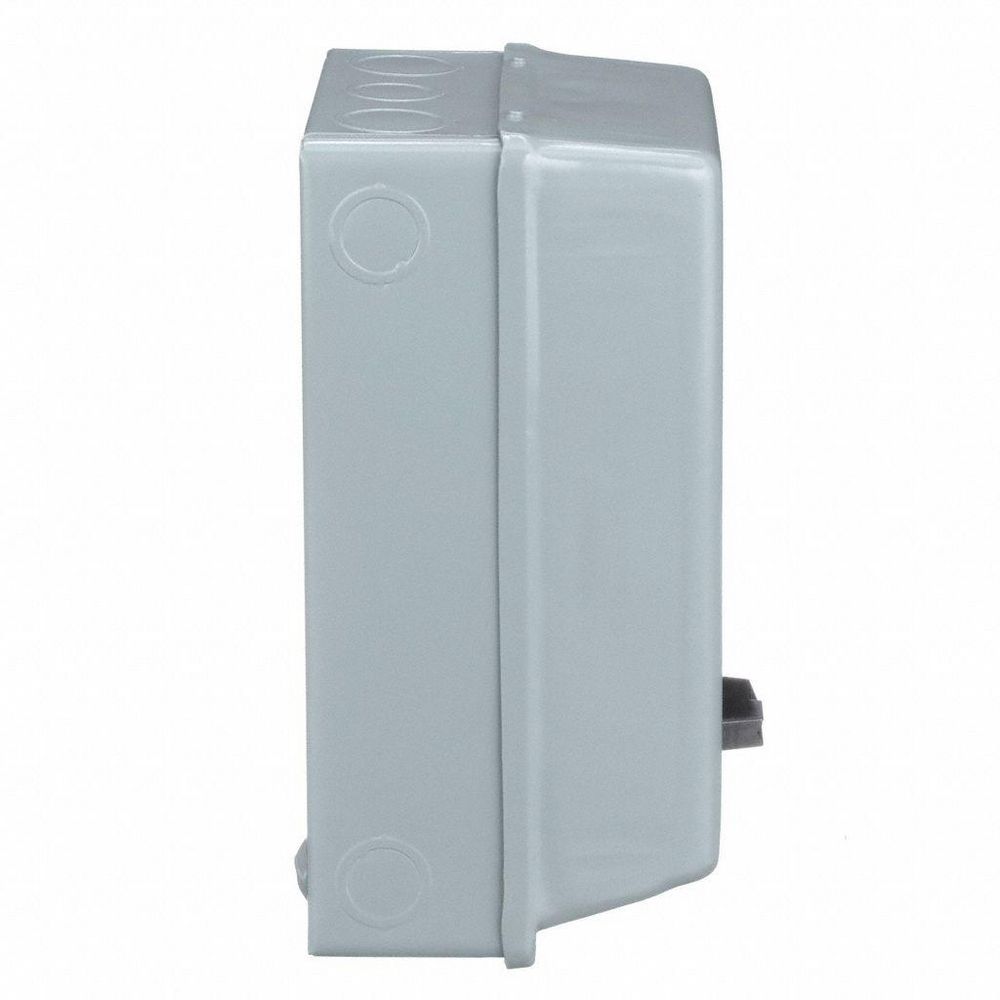

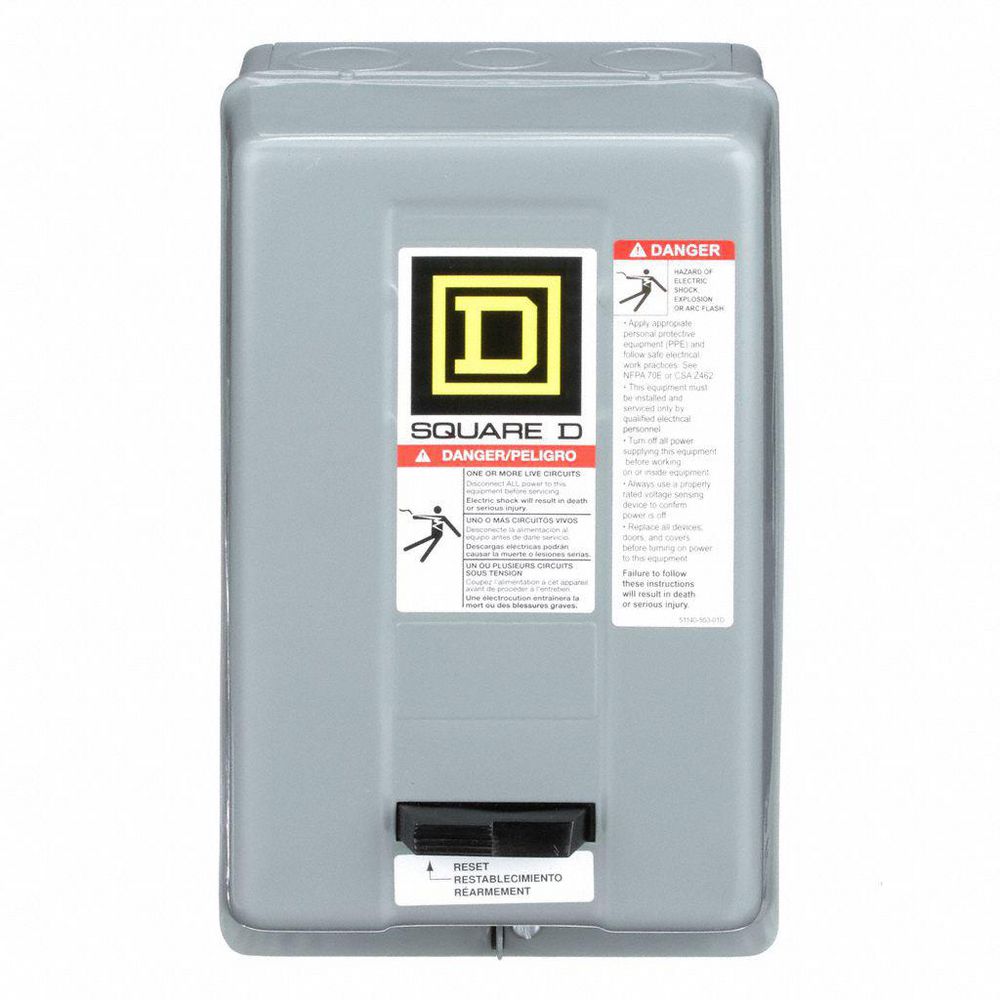

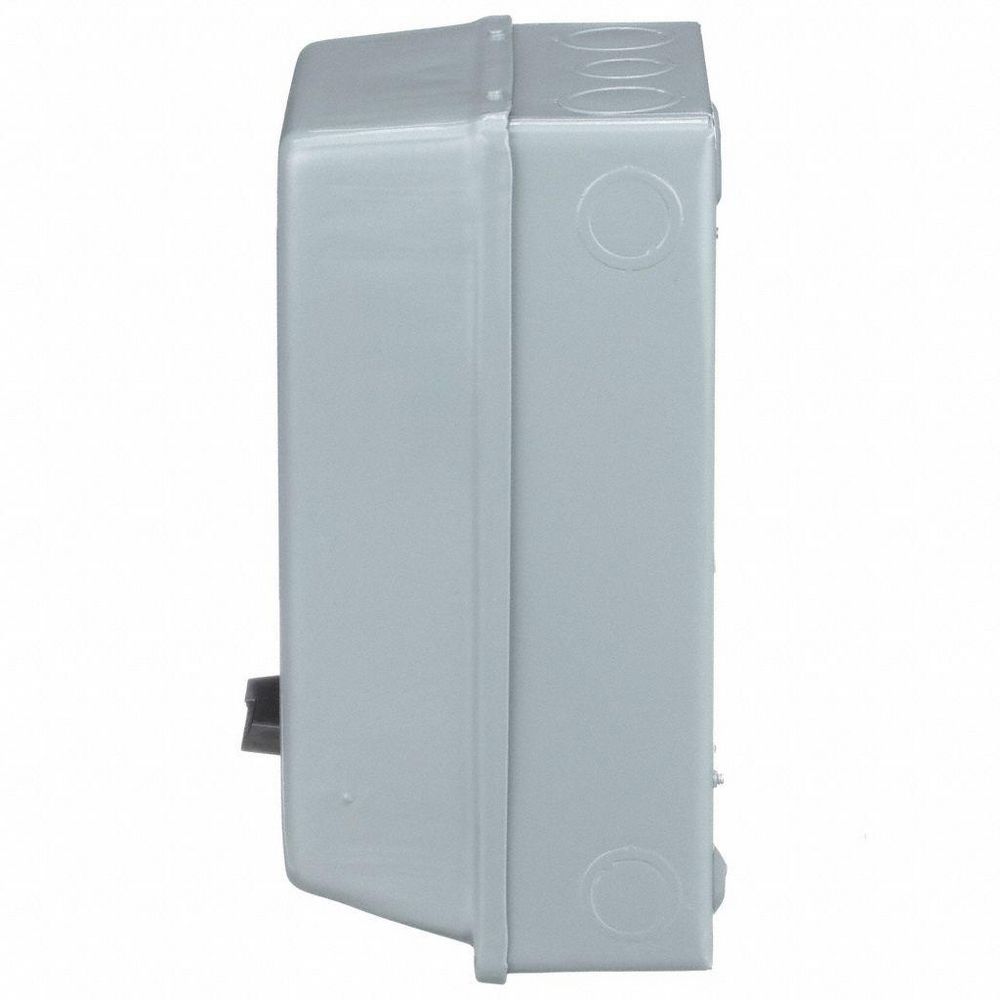

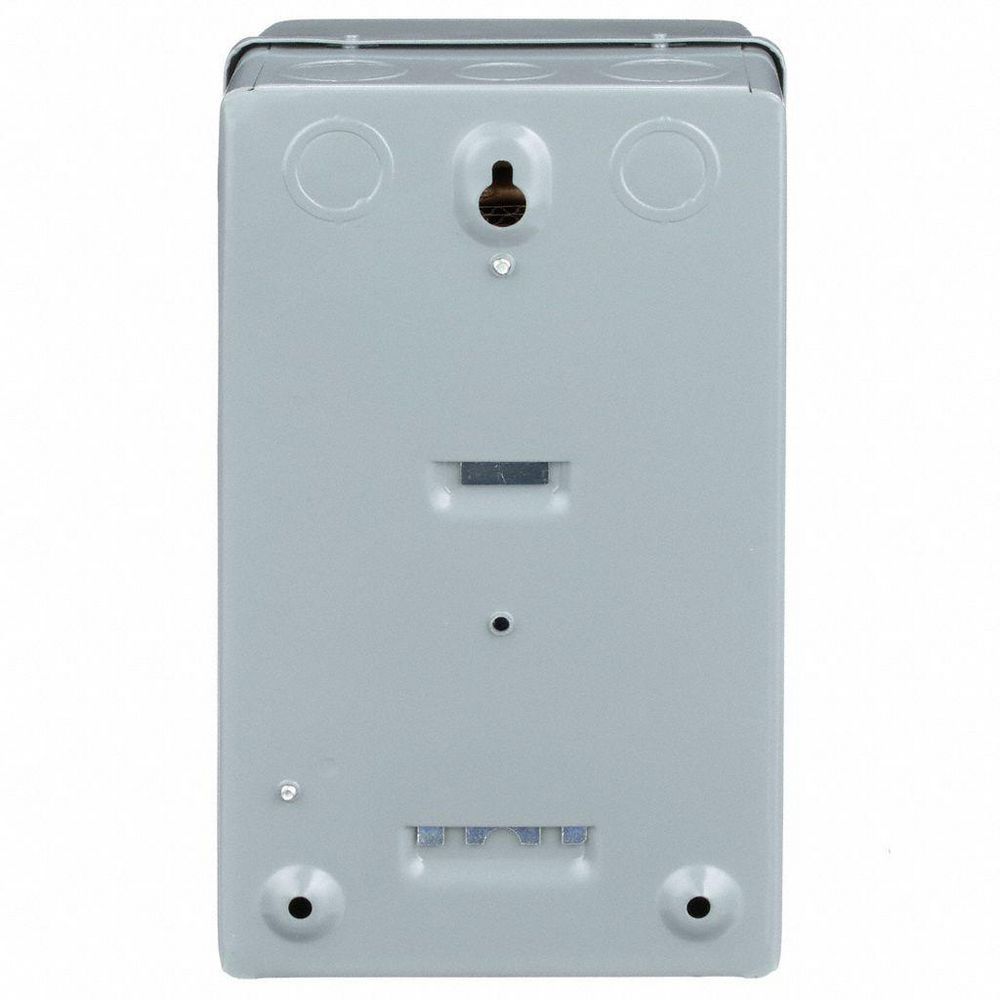

Square D Magnetic Motor Starter, 240VAC Coil Volts, NEMA Size: 1P, Starter Type: NEMA

Hover over image to magnify
Magnetic Motor Starter,Nema,
PI_Asset_1984313
PI_Asset_1988384
PI_Asset_1991454
PI_Asset_1992410
Magnetic Motor Starter,Nema,
PI_Asset_1984313
PI_Asset_1988384
PI_Asset_1991454
PI_Asset_1992410
Square D Magnetic Motor Starter, 240VAC Coil Volts, NEMA Size: 1P, Starter Type: NEMA Video
Double tap image to magnify
Magnetic Motor Starter,Nema,
1H501_1
1H501_2
1H501_3
1H502_1
Magnetic Motor Starter,Nema,
1H501_1
1H501_2
1H501_3
1H502_1
RTyhiDcl_fA

#925901-7Pkg Qty: 1

$781.95 pkg | $781.95 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 15.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>NEMA Magnetic Motor Starters with Standard Overload Relays</p> <ul> <li>Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.</li> <li>Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.</li> <li>UL Listed and CSA Certified.</li> </ul>

NEMA Magnetic Motor Starters with Standard Overload Relays

  • Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.
  • Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.
  • UL Listed and CSA Certified.
Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Action
Nonreversing
Item
Magnetic Motor Starter
Amps AC
36
Mfr. Part Number
8536SCG2V03
Brand
SQUARE D
NEMA Enclosure Type
1
Coil Volts
240 VAC
Number of Poles
2
Depth
5.56 in.
Package Quantity
1
Enclosure NEMA Rating
1
Shipping Weight
7.1 lb.
Enclosure Type
Enclosed
Starter Type
NEMA
Height
10 in.
Type
NEMA Magnetic
Hz
50/60
Width
6 in.
General
HP @ 1 Phase - 230V
5 hp
Standards
CSA Certified
NEMA Size
1P
Thermal Unit Code
A4

Product Description

NEMA Magnetic Motor Starters with Standard Overload Relays

  • Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.
  • Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.
  • UL Listed and CSA Certified.

Expertly Selected Product Pairings

Pushbutton Kit
$147.30 pkg | $147.30 ea
Item: 924134-1 | Pkg Qty: 1
Auxiliary Contact,10A,1NO
$110.68 pkg | $110.68 ea
Item: 927851-1 | Pkg Qty: 1
Auxiliary Contact,10A,1NC
$102.76 pkg | $102.76 ea
Item: 931879-2 | Pkg Qty: 1
Auxiliary Contact,3A,1NO
$121.73 pkg | $121.73 ea
Item: 934086-8 | Pkg Qty: 1

Documents

Square D 8536 8502 SC Instruction Bulletin
Square D 8536 8502 SC2 Instruction Bulletin
Square D 8536SC A Instruction Bulletin
