LITHONIA LIGHTING

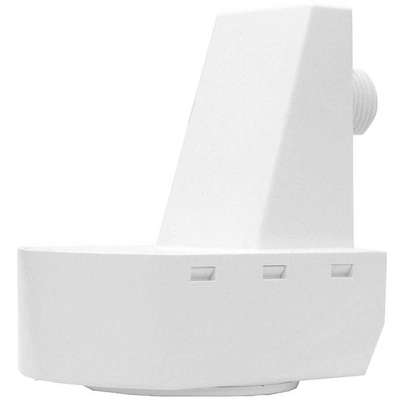

Lithonia Lighting Fixture Mount Hard Wired Motion Sensor, 2000 sq. ft. Passive Infrared, White
Hover over image to magnify
#925824-7 | Pkg Qty: 1
$77.38 pkg | $77.38 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
LITHONIA LIGHTING
Mfr. Part Number
LSXR 610
Color Family
White
Package Quantity
1
Compatible With
Fluorescent, LED, Induction Fixtures
Sensor Type
Passive Infrared
Coverage
2000 sq. ft.
Shipping Weight
.4 lb.
Installation Location
Fixture Mount
Viewing Angle
360 deg.
Item
High Mount and Low Mount Sensor
Voltage
120/277
Light Technology
Fluorescent, Induction, LED
General
Communication Method - Motion Sensing and Dimming
Hard Wired
Operating Voltage - Motion Sensing and Dimming
120 V AC, 277 V AC
Coverage Angle - Motion Sensor
360 Degrees
Sensing Technology
Passive Infrared
Coverage at Suggested Mounting Height
2,000 sq ft
Standards
UL and cCA Title 24 Compliant
For Use With
Fluorescent and LED
Suggested Mounting Height - Motion Sensor
7 to 15 ft
Includes
(2) Interchangeable Lenses
Time Delay - Motion Sensor
30 sec to 30 min
Max. Capacity @ 120VAC
800W (Fluorescent, Induction, LED)
Time Delay Adjustment Method - Motion Sensor
Adjustable
Max. Capacity @ 277VAC
1200W (Fluorescent, Induction, LED)
Product Description
Designed for commercial and industrial lighting control applications. Passive infrared sensor has interchangeable lenses for multiple mounting height and coverage pattern requirements.
Item Barcode
High Mount And Low Mount
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 20VE57 | High Mount and Low |
 | UNSPSC CODES | 46171608 | |
 | VMRS (ATA) CODES | 053-006-009 | High Mount and Low |
