DAYTON

Dayton Plunger, Roller General Purpose Limit Switch; Location: Top, Contact Form: SPDT, Vertical Movement

Hover over image to magnify

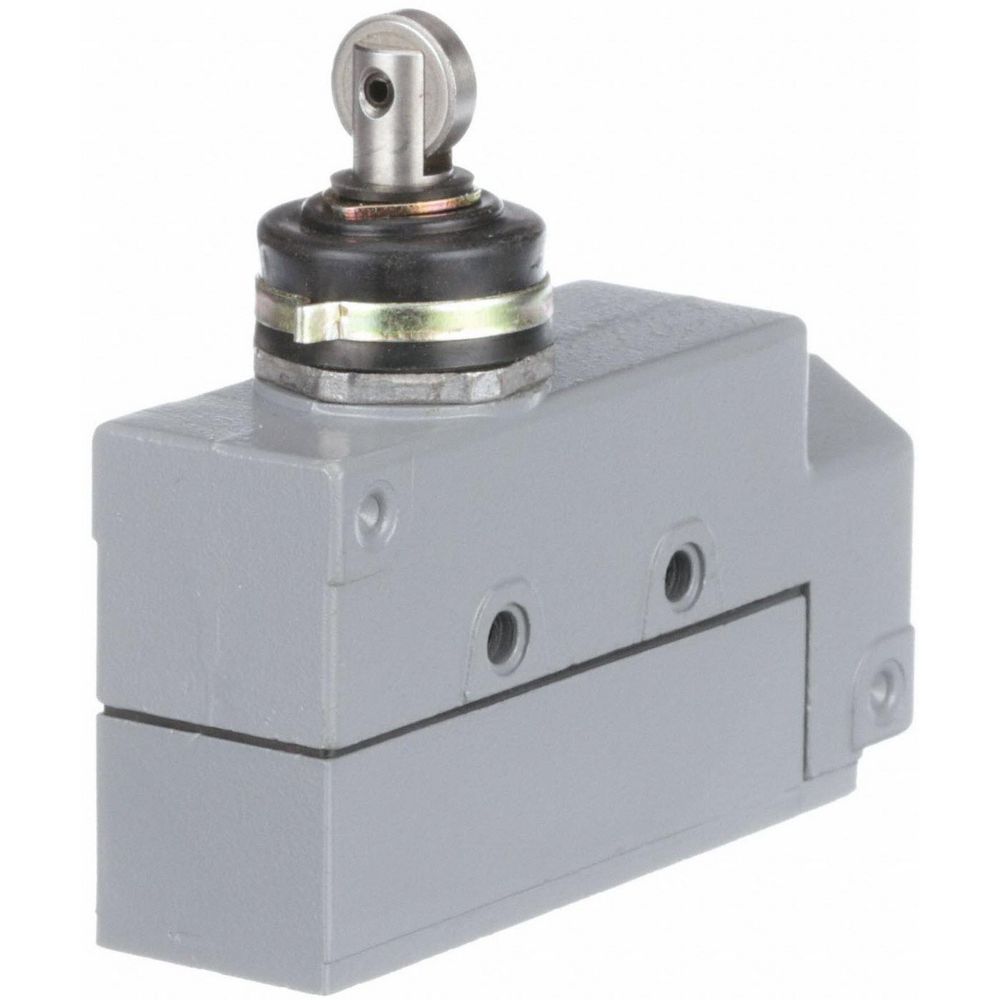

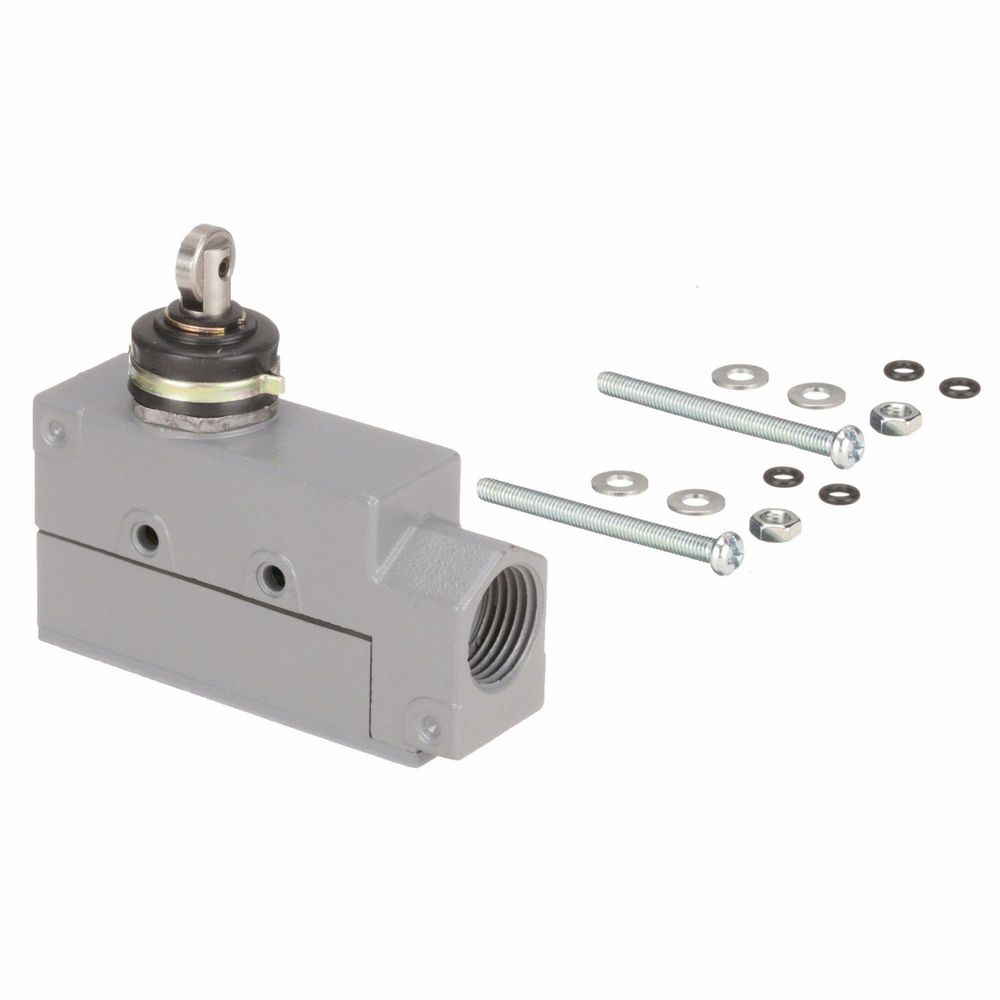

Enclosed Limit Switch
PI_Asset_1355274
PI_Asset_1381577
Enclosed Limit Switch
PI_Asset_1355274
PI_Asset_1381577
Double tap image to magnify
Enclosed Limit Switch
12T912_1
12T912_SS01_R01_C10
Enclosed Limit Switch
12T912_1
12T912_SS01_R01_C10

#925806Pkg Qty: 1

$41.45 pkg | $41.45 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
AC Contact Rating
15 A @ 480 V
IP Rating
65
Action
A
Item
General Purpose Limit Switch
Actuator Location
Top
Limit Switch Style
General Purpose Limit Switch
Actuator Style
Roller Plunger, Boot Sealed
Mfr. Part Number
12T912
Amperage
15 A
Movement
Vertical
Basic Actuator Style
Plunger
NEMA Rating
3, 4, 13
Body Depth
1.01 in.
Operating Force
18 oz.
Body Height
1.76 in.
Operating Temperature Range
-1 deg. F to 176 deg. F
Body Style
Miniature
Package Quantity
1
Body Width
3.39 in.
Series
Dayton
Boot Sealed Actuator
Yes
Shipping Weight
.45 lb.
Brand
DAYTON
Style
Sealed Top Roller Plunger
Conduit Size
1/2 in. NPT
Threaded for Panel Mounting
No
Contact Form
SPDT
Travel
Maximum Pre-Travel 1mm, Over Travel 3.5mm
DC Contact Rating
15 A @ 480 V
Type
General Duty, Side Mounted
Depth
1.01 in.
Voltage
480 VAC/DC
Electrical Connection
Screw Terminals
Voltage Rating
480 VAC/DC
Hazardous Location
No
Warranty
5ZZX3
Height
3 in.
Width
3.39 in.
General
AC Contact Rating - Limit Switch
15A @ 480V
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
DC Contact Rating - Limit Switch
15A @ 480V
Actuator Style - Limit Switch
Plunger, Roller
Mounting - Limit Switch
Surface
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole - Limit Switch
(2) 0.21 in dia
Body Depth - Limit Switch
1.01 in
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Height - Limit Switch
1.76 in
Mounting Hole Spacing - Limit Switch
1.00 in
Body Style - Limit Switch
Miniature
Operating Temp. Range
-14° to 176°F
Body Width - Limit Switch
3.39 in
Standards
UL, CSA, CE
Boot Sealed Actuator - Limit Switch
Yes
Stem Thread - Limit Switch
No Stem

Product Description

This enclosed limit switch features a plunger actuator, screw terminal connectors, and vertical movement.
