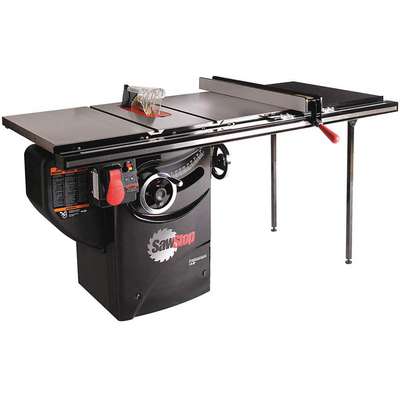

SawStop PCS175-TGP236 10 in., Corded, Cabinet Table Saw; 4000 RPM Max. Speed, Single Phase

Hover over image to magnify
Cabinet Table Saw,14A,69-1/8
PI_Asset_980140
PI_Asset_980141
PI_Asset_980142
PI_Asset_980143
Cabinet Table Saw,14A,69-1/8
PI_Asset_980140
PI_Asset_980141
PI_Asset_980142
PI_Asset_980143

#925757-6 | Pkg Qty: 1

$3,731.50 pkg | $3,731.50 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Arbor Size
5/8 in.
Overall Height
34 in.
Blade Diameter
10 in.
Overall Width
69-1/8 in.
Brand
SAWSTOP
Package Quantity
1
Current Rating
14 A
Phase
Single
Horsepower
1.7 HP
Shipping Weight
480 lb.
Item
Corded Cabinet Table Saw
Stand Type
Cabinet
Maximum Speed
4000 RPM
Variable Speed
No
Mfr. Part Number
PCS175?TGP236
Voltage
120V AC
General
Arbor Shape
Round
Max. Cutting Depth @ 45 Deg.
2-1/4 in.
Automatic Blade Safety Retraction
Yes
Table Front of Blade
10-1/4 in.
Bevel Angle Range
0 Degrees to 45 Degrees Left
Table Length
27 in.
Includes
Bare Tool
Table Saw Type
Cabinet
Max. Cut Width Left of Blade
12 in.
Table Surface w/Extension
67-3/4 in. x 27 in.
Max. Cut Width Right of Blade
36 in.
Table Width
69-1/8 in.
Max. Cutting Depth @ 0 Deg.
3-1/8 in.
Table Width with Extension
69-1/8 in.

Product Description

These cabinet table saws have a safety feature that automatically retracts the saw blade when any part of the worker's body, such as hands or arms, touches the blade. Floorstanding cabinet table saws have an extended surface on both sides of the blade to support large workpieces and sheet goods, providing more precise cuts and control than circular saws and portable table saws. Cabinet table saws are plugged into a wired power source and are not intended to be moved.
