TWECO

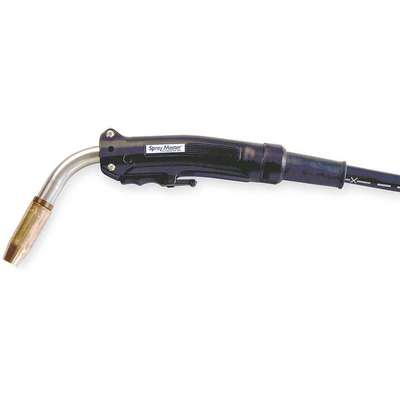

Tweco MIG Gun: Spray Master 250, 250 A, 0.045 in, 12 ft.-Compatible

Hover over image to magnify
Mig Gun,250 A,Wire 0.045 In,
Mig Gun,250 A,Wire 0.045 In,

#925745-9 | Pkg Qty: 1

$491.70 pkg | $491.70 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
250 A
Neck Tube Size
Medium
Brand
TWECO
Neck Tube Type
Fixed
Cable Length
12 ft.
Package Quantity
1
Handle Type
Curved
Rotation
0 deg.
Item
MIG Gun
Series
Spray Master 250
Mfr. Part Number
10231101
Shipping Weight
7.55 lb.
Neck Tube Angle
60 deg.
max._wire_dia_spec_s
0.045 in.
Neck Tube Material
Metal
General
Compatible with Model
Tweco
Maximum Amperage Range
150 A — 300 A
Duty Cycle (%)
80% with Mixed Gas
Maximum Wire Feed Speed
1,000 in/min
For Gas Type
Mixed Gas
Nozzle Series
HD22
For Rear Connection Type
Tweco-Compatible
Rear Connection
Tweco(R)
For Wire Type
Aluminum, Flux-Cored, Solid
Rotation Deg.
0 °
Gas Diffuser Number
HD52-11
Trigger Type
Standard
Liner Series
42
Wire Feed Type
Push
MIG Gun Number
MS212-3545
Wire Size (In.)
0.035/0.045
MIG Gun Type
Air-Cooled

Product Description

The spray master MIG gun is equipped with durable contact tips, nozzles, and diffusers for optimum performance in demanding operations. It features short conductor tubes that allow operators to get closer to the workpiece. It is rated at 80% duty cycle with argon/CO2 gases. The ergonomic handle helps to reduce welder fatigue. The rear connection is designed to match most welding wire feeders and power sources.

Expertly Selected Product Pairings

Welding Nozzle,PK2
$33.00 pkg | $16.50 ea
Item: 912830-7 | Pkg Qty: 2
Contact Tip,16 Series,Copper,
$91.75 pkg | $3.67 ea
Item: 922215-3 | Pkg Qty: 25
Contact Tip,Copper,0.035" Size,
$79.50 pkg | $3.18 ea
Item: 922810-9 | Pkg Qty: 25
