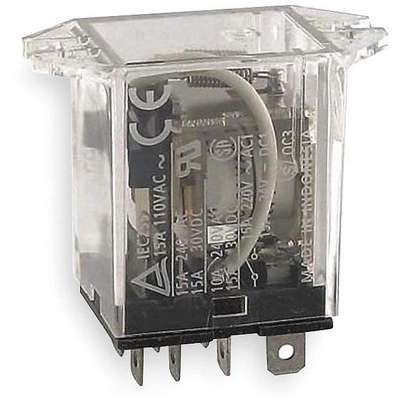

Omron 120VAC, 8-Pin Flange Mount Relay; Flange Location: Top, AC Contact Rating: 15A @ 120V

Hover over image to magnify

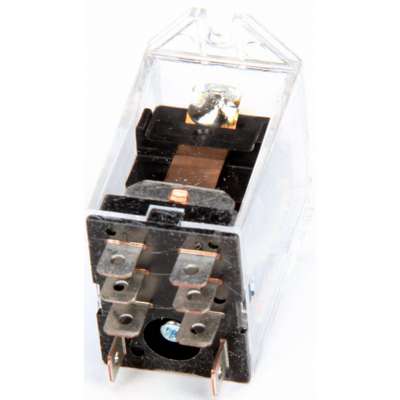

Relay,8Pin,Spdt,15A,120VAC
PI_Asset_1364235
Relay,8Pin,Spdt,15A,120VAC
PI_Asset_1364235
Omron 120VAC, 8-Pin Flange Mount Relay; Flange Location: Top, AC Contact Rating: 15A @ 120V Video

#925624-9 | Pkg Qty: 1

$10.03 pkg | $10.03 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
15 A @ 120 V
Item
Flange Mount Relay
Base Type
Square
Mfr. Part Number
LY1F-AC110/120
Brand
OMRON
Mounting
Top Flange
Coil VA Rating
0.9 to 1.1
Number of Pins
8
Coil Volts
120 VAC
Number of Poles
1
Contact Amp Rating
10A @ 110VAC, 7A @ 24VDC
Overall Height
1.65 in.
Contact Form
SPDT
Package Quantity
1
Contact Material
Silver Alloy
Pins
8
Contact Rating
15 A @ 110 VAC/24 VDC
Push To Test
Manual
DC Contact Rating
15 A @ 24 V
Relay Power Consumption
1.1 VA
Electrical Connection
0.200 in. Solder Terminals
Resistive Contact Amp Rating
15A @ 110VAC/24VDC
Flange Location
Top
Shipping Weight
.09 lb.
Hz
50/60
Socket Code
D
Inductive Contact Amp Rating
10A @ 110VAC, 7A @ 24VDC
Status Indicator
No
Input Power Consumption
1.1 VA
Type
Flange, Top Mount
General
AC Contact Rating - Relay
15A @ 120V
HP @ 120V
1/2 hp
Body Depth - Relay
1.14 in
Mounting - Relay
Top Flange
Body Height - Relay
1.4 in
Number of Pins - Relay
8
Body Width - Relay
0.89 in
Overall Height - Relay
1.65 in
Contact Form - Relay
SPDT
Power Consumption - Relay
1.1 VA
DC Contact Rating - Relay
15A @ 24V
Socket Code - Relay
J
Features
Arc Barrier Equipped, High Dielectric Strength (2,000 VAC)
Standards
CSA Certified, CE Marked, VDE, SEV

Product Description

Flange Mount Relay, Coil Volts 120V AC, AC Contact Rating - Relay 15A @ 120V, DC Contact Rating - Relay 15A @ 24V, Number of Pins - Relay 8, Contact Form - Relay SPDT, Mounting - Relay Top Flange, Power Consumption - Relay 1.1 VA, Socket Code - Relay J, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual, Electrical Connection 0.200 in Solder Terminals
