Home All Products Pneumatics Air Compressors And Vacuum Pumps Stationary Electric Air Compressors SKU: 925618-2

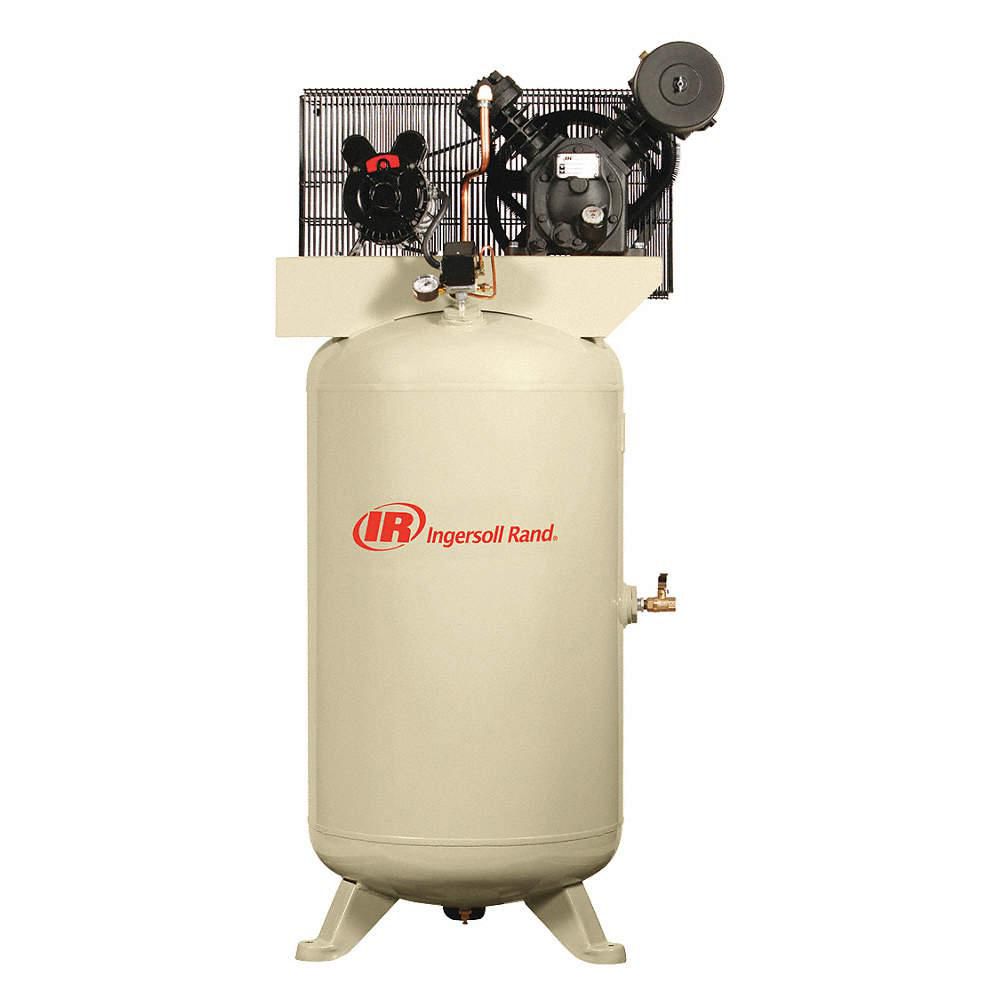

3 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 80 gal

Name: 3 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 80 gal
Brand: INGERSOLL RAND
SKU: 9256182
Price: 2827.44 USD
Availability: InStock

Hover over image to magnify

3 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 80 gal Video

Double tap image to magnify

#925618-2Pkg Qty: 1

$2,827.44 pkg | $2,827.44 ea

This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085

Expected to arrive Wed. Apr 02.

Technical Specifications

Key Specifications

(F)NPT Outlet

1/2 in.

Number of Stages

Air Consumption

scfm

Overall Height

68-1/2 in.

Brand

INGERSOLL RAND

Overall Length

37-1/8 in.

Compressor Package Type

Base Model

Overall Width

24 in.

Free Air CFM @ Max Pressure

Package Quantity

Horsepower

Pump Location

Tank Mounted

Input Voltage

480 VAC

Shipping Weight

534 lb.

Item

Electric Air Compressor

Tank Size

80 gal.

Maximum Pressure

175 psi

Tank Style

Vertical

Mfr. Part Number

2340N5-V-460/3

Width

20 in.

General

ASME Tank

Yes

Max. Pressure - Air Compressor

175 psi

Air Tank Size

80 gal

Number of Stages - Air Compressor

Air Tank Style

Vertical

Off Pressure Switch Setting

175 psi

Compressor Voltage

480V AC

On Pressure Switch Setting

135 psi

Free Air CFM @ 175 PSI

Outlet Gender

Female

Free Air CFM @ Max. Pressure - Air Compressor

14.0

Output Power

5 hp

Free Air Flow Rate @ Max Pressure

14.3 cfm

Phase - Electrical

Free Air Flow Rate @ Maximum Pressure

14.3 cfm

Pump Location - Air Compressor

Tank Mounted

Pump Oil Capacity

32 fl oz

HP - Air Compressor

5.0 hp

Sound Level Range

Standard (70 dBA or more)

Includes

Manual Drain Valve, Motor Starter, Pressure Gauge, Pressure Safety Valve

Style - Air Compressor

Simplex

Input Voltage - Air Compressor

480V AC

Tank Size - Air Compressor

80 gal

Life Expectancy

15,000 hr

Tank Style - Air Compressor

Vertical

Lubrication Type - Air compressor

Splash Lubricated

dBA @ 3 Feet

85.0

Max Operating Pressure

175 psi

Product Description

This 100% continuous-duty compressor features a totally enclosed belt guard and an automatic Start/Stop control.

Expected pump life: 15,000 hr.
ASME tank with discharge isolation valve
Must be hardwired
Required start-up kit sold separately
