COXREELS

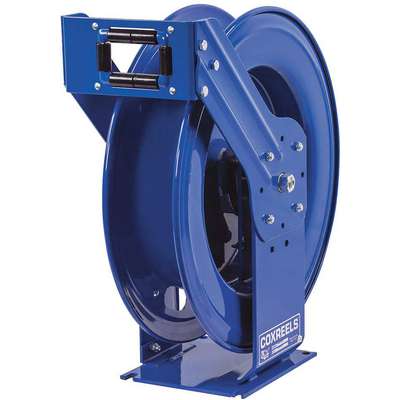

Coxreels 3/4", 50 ft. Spring Return DEF Hose Reel, 300 psi Max. Pressure
Hover over image to magnify
#925616-6 | Pkg Qty: 1
$851.89 pkg | $851.89 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Permanently Lubricated
Mfr. Part Number
TSHL-N-550-BBX
Brand
COXREELS
Mounting
Bench and Vehicles, Ceiling, Floor, Wall
Drive Type
Spring Return
Overall Height
25-1/2 in.
Hose Included
No
Overall Length
24 in.
Hose Inside Diameter
3/4 in.
Overall Width
9-3/8 in.
Hose Length
50 ft.
Package Quantity
1
Item
Spring Return DEF Hose Reel
Seal Type
Viton
Latch
Locking
Shipping Weight
70 lb.
General
Hose Outlet
3/4 in (M)NPT
Max. Temp.
150 °F
Housing Material
Steel
Reel Inlet
3/4 in (F)NPT
Includes
Heavy Duty DEF Hose Reel - Spring Rewind Hose Reel - Low Pressure Hose Reel - Diesel Exhaust Fluid Hose Reel - Hose Reel
Swivel Material
Stainless Steel
Product Description
Spring Return DEF Hose Reel, Max. Pressure 300 psi, Hose Inside Dia. 3/4 in, Hose Length 50 ft, Hose Included No, Heavy Duty, Reel Inlet 3/4 in (F)NPT, Enclosed Reel No, Hose Outlet 3/4 in (M)NPT, Max. Temp. 150 Degrees F, Locking Latch, 25 1/2 in, Overall Width 9 3/8 in, Overall Length 24 in
Item Barcode
Hose Reel,3/4",50',25-12"H
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 29RE66 | Hose Reel, 3/4",50' |
 | UNSPSC CODES | 40142022 | |
 | VMRS (ATA) CODES | 053-011-001 | Hose Reel, 3/4",50' |
