HUBBELL WIRING DEVICE-KELLEMS

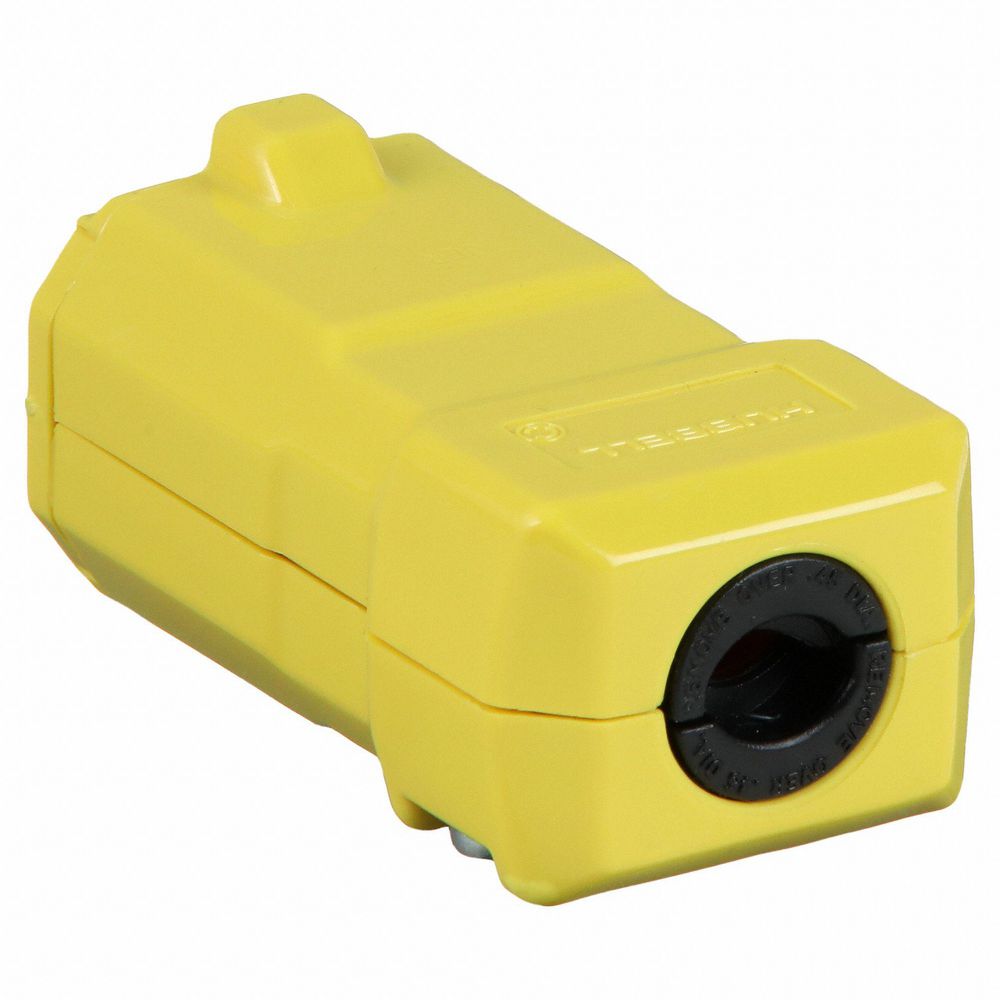

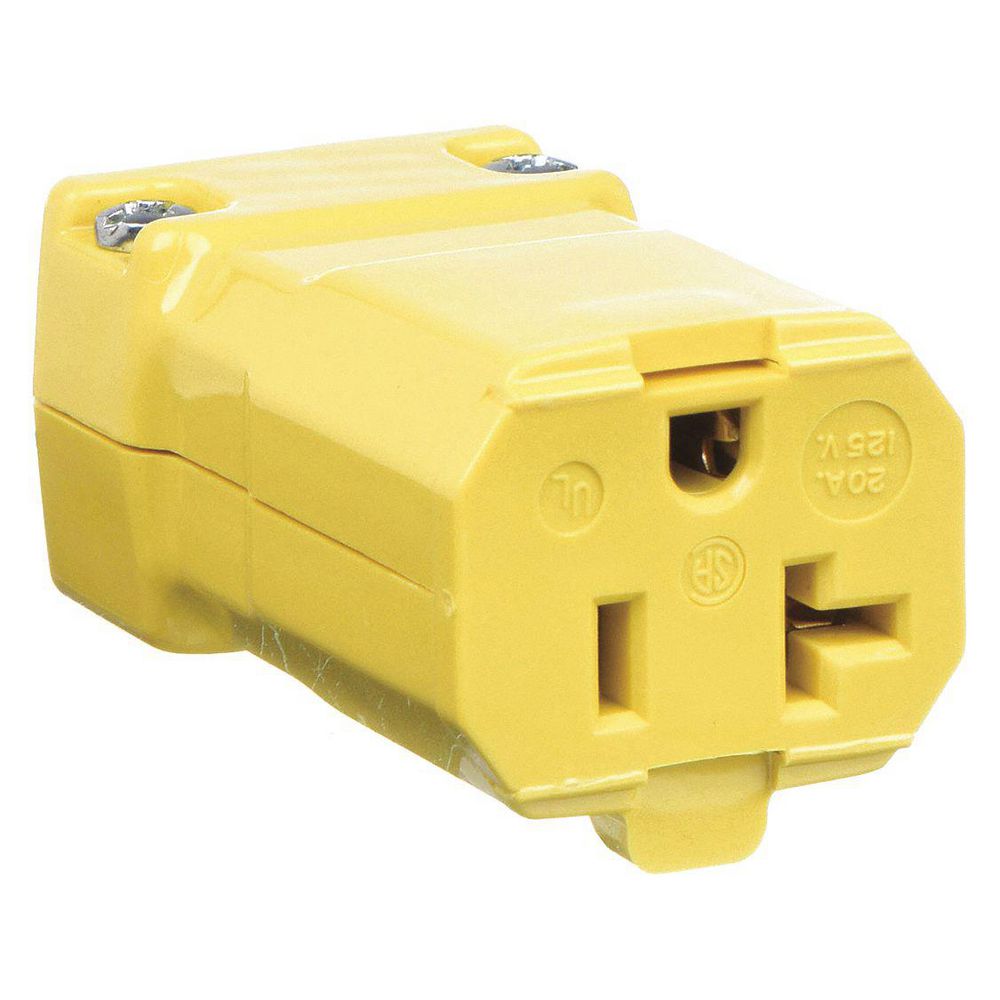

Hubbell Wiring Device-Kellems 20 Amp Industrial Grade Hinged Straight Blade Connector, 5-20R NEMA Configuration, Yellow
Hover over image to magnify
#925614-4 | Pkg Qty: 1
$35.38 pkg | $35.38 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Maximum Wire Size
12 AWG
Amps
20 A
Mfr. Part Number
HBL5369VY
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Cap Type
No Cap or Cover
NEMA Configuration - Plugs & Connectors
5-20
Color Family
Yellow
NEMA Plug Configuration
5-20R
Connection Orientation
Straight
NEMA Receptacle Configuration
5-20R
Contact Material
Brass
Number of Poles
2
Cord Size
0.220 in to 0.660 in
Number of Wires
3
Corrosion Resistant
No
Overall Length
2.68 in.
Current Rating
20 A
Package Quantity
1
Description
Valise, Grounding
Phase
Single
For Environment
Dry
Polarized
Yes
For Location
Indoor
Power Indicating Light
No
Grade
Industrial
Power Indicator
No
Grounding
Grounded
Shipping Weight
.1 lb.
Horsepower
1 hp
Shrouded
No
Housing Color
Yellow
Standards
CSA Certified, NEMA WD-6 Compliant, UL Listed
Housing Material
Thermoplastic Elastomer
Sub-Category
Connectors
IP Rating
IP20
Type
Valise
Item
Straight Blade Connector
Voltage
125VAC
Material
Nylon
Voltage Rating
125V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Hinged
General
Amps - Plugs and Receptacles
20 A
Special Features
Moisture, Dust, and Weather Resistant
Grade - Plugs and Receptacles
Industrial
Sub-Category
Connectors
HP
1 hp
Voltage - Plugs and Receptacles
125V AC
NEMA Plug Configuration - Plugs and Receptacles
5-20R
Product Description
NEMA Straight-Blade Plugs and Connectors
- CSA Certified.
- Valise®
- 1-pc. nylon construction with load-bearing locking lugs and 2 assembly screws provide a quick, secure assembly. Large, easy-to-wire terminal clamps feature a bundling effect on conductors. Powerful offset cord grip resists conductor slippage and prevents strain on terminations.
Expertly Selected Product Pairings
Item Barcode
Connector,5-20R,20A,125V
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3D208 | Connector,5- 20R,20A,125V |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector,5- 20R,20A,125V |
