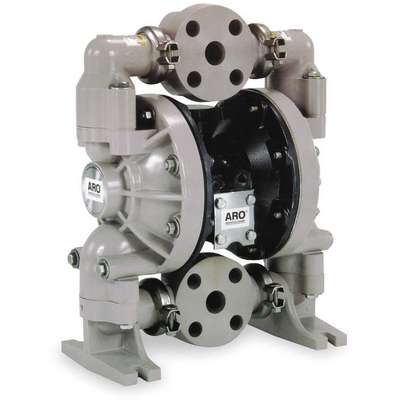

Double Diaphragm Pump: 1 in Inlet/Outlet Size, Flange Connection, 1/4 in FNPT Air Inlet Size

Name: Double Diaphragm Pump: 1 in Inlet/Outlet Size, Flange Connection, 1/4 in FNPT Air Inlet Size
Brand: ARO
SKU: 9255846
Price: 2200.76 USD
Availability: InStock

Hover over image to magnify

#925584-6 | Pkg Qty: 1

$2,200.76 pkg | $2,200.76 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Agency Compliance

CE, RoHS, REACH

Maximum Diameter Solids

1/8 in.

Air Inlet Size

1/4 in. FNPT

Maximum Flow

47 gpm

Ball Material

PTFE

Maximum Flow (GPM)

Body Material

Polypropylene

Maximum Operating PSI

120

Brand

ARO

Maximum Operating Pressure

120 psi

Check Seat Material

Polypropylene

Maximum Temperature (Deg. F)

150°F

Connection Style

Flange

Mfr. Part Number

6661A3-344-C

Diaphragm Design

PTFE

Mfr. Warranty Length

5 yr.

Diaphragm Material

PTFE

Operation Type

Air Operated

Flow

35 gpm

Package Quantity

Height

11-3/4 in.

Pump Operation Type

Air Operated

Housing Material

Polypropylene

Self-Priming Dry

10 ft.

Inlet/Outlet

1 in.

Self-Priming Wet

15 ft.

Inlet/Outlet Size

1 in.

Shipping Weight

27.35 lb.

Item

Double Diaphragm Pump

Valve Type

Ball

Length

17-1/2 in.

Width

15-1/4 in.

Manifold Connection

Flanged

General

Diaphragm Material - Pumps

PTFE

Max. Dia. Solids

1/8 in

Housing Material - Pumps

Polypropylene

Product Description

Pump lets you easily transfer solvents, slurries, and other high-viscosity liquids such as inks and paints. All-bolted injection-molded body is structurally reinforced with a fiber fill and have excellent resistance to many caustics and a wide variety of nonaggressive water-based liquids. Spring-assisted air valve comes with proprietary seal rings that require no lubrication.
