GF PIPING SYSTEMS

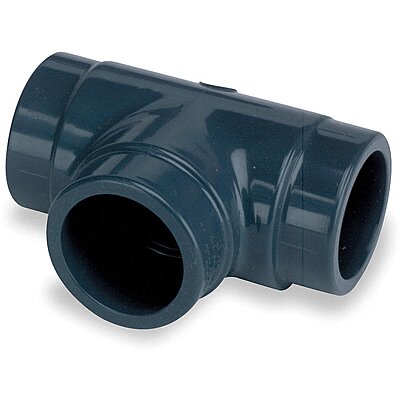

Schedule 80 CPVC Reducing Tee, 3/4" x 3/4" x 1/2" Pipe Size, Socket x Socket x Socket Fitting Connec

Hover over image to magnify
Reducing Tee,CPVC,80,3/4 x 3/4
Reducing Tee,CPVC,80,3/4 x 3/4

#925569-9 | Pkg Qty: 1

$17.47 pkg | $17.47 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
CPVC
Maximum Pressure
688 psi @ 73°F
Brand
GF PIPING SYSTEMS
Maximum Temperature (Deg. F)
210°F
Class
Schedule 80
Mfr. Part Number
9801-101
Color Family
Gray
Package Quantity
1
Connection Type
Socket x Socket x Socket
Pipe Size
3/4 in. x 3/4 in. x 1/2 in.
Item
Reducing Tee
Shipping Weight
.15 lb.
General
Fitting Pipe Size
3/4 in x 1/2 in x 3/4 in
Fitting Side C Nominal Pipe Size
3/4 in
Fitting Side A Gender
Female
Fitting Side C Outside Diameter
1 7/16 in
Fitting Side A Nominal Pipe Size
3/4 in
Fitting Side C Type
Socket
Fitting Side A Outside Diameter
1 7/16 in
For Pipe Outside Diameter
3/4 in
Fitting Side A Type
Socket
For Pipe Schedule
80
Fitting Side B Gender
Female
Low Lead Certified Standard
NSF 61
Fitting Side B Nominal Pipe Size
1/2 in
Low Lead Compliance Level
Certified
Fitting Side B Outside Diameter
1 1/8 in
Standards
ASTM D1784, NSF14 Certified
Fitting Side B Type
Socket
Temp. Range
32 Degrees to 200 Degrees F
Fitting Side C Gender
Female

Product Description

Lightweight, tough, and corrosion-resistant, this GF PIPING SYSTEMS reducing tee is highly resistant to acids, alkalis, alcohols, and many other corrosive materials. Fitting is much lighter (about 1/6th as much as steel) to help speed and simplify handling during installation, plus it won’t corrode, pit, rust, scale, nor is it subject to electrolysis. Material is not affected by soil conditions if fitting is buried. For outdoor applications that are exposed to sunlight, 2 coats of white-colored, water-base latex paint provide additional protection. Tee reads: run x run x outlet.
