Home All Products Tools Hand Tools Clamps Bar, Pipe & L-Clamps SKU: 925494-4
Share
Print
BESSEY

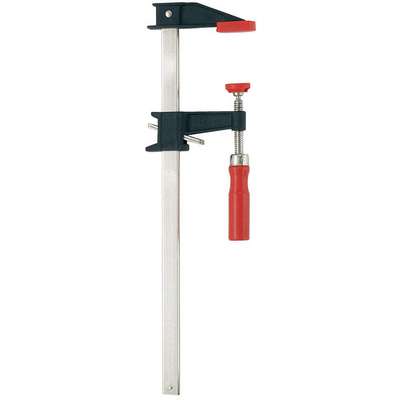

Bessey Clutch Style Bar Clamp,24 Max. Jaw Opening (In.),600 Nominal Clamping Pressure

Hover over image to magnify
Clutch Style Bar Clamp,24 In,2-
PI_Asset_971254
Clutch Style Bar Clamp,24 In,2-
PI_Asset_971254

#925494-4 | Pkg Qty: 1

$18.33 pkg | $18.33 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bar Material
Nickel-Plated Drawn Steel
Load Capacity
600 lb.
Brand
BESSEY
Maximum Opening
24 in.
Clamping Force
600 lb.
Mfr. Part Number
GSCC2.524
Duty Rating
Light Duty
Package Quantity
1
Handle Material
Wood
Pad Style
Non-Marring, Swivel on Anvil Surface
Handle Style
Screwdriver
Shape
F
Item
Bar Clamp
Shipping Weight
2.15 lb.
Jaw Opening
24 in.
Throat Depth
2-1/2 in.
General
Application
General Purpose, For Assembly, Gluing, Construction And Maintenance
Max. Jaw Opening (In.)
24 in
Bar Size (In.)
13/16 in
Nominal Clamping Pressure
600
Bar Thickness (In.)
3/4 in
Nominal Rail Size (In.)
3/4 x 1/4
Bar Width (In.)
1/4 in
Opening (In.)
24 in
Clamp Face (In.)
1-1/8 x 1-5/8
Screw Size (In.)
0.4
Clamping Surface D (In.)
1 1/8 in
Spindle Dia. (In.)
0.4
Clamping Surface W (In.)
1 5/8 in
Swivel Pad (In.)
1
Handle Length (In.)
3 1/2 in
Throat Depth (In.)
2 1/2 in
Includes
Removable Plastic Jaw Caps

Product Description

The BESSEY® clutch-style bar clamp is a popular regular-duty clamp used by cabinetmakers, woodworkers, metal workers, and home crafters. This easy-to-use clamp is suitable for close quarters clamping. Cast-iron jaws with durable powder-coated fixed and sliding jaws. Nickel-plated, drawn steel and serrated rail, nonmarring pads on the top and bottom jaws, 2-piece slip-clutch plates keep the jaw sturdy and in place.
