LINCOLN ELECTRIC

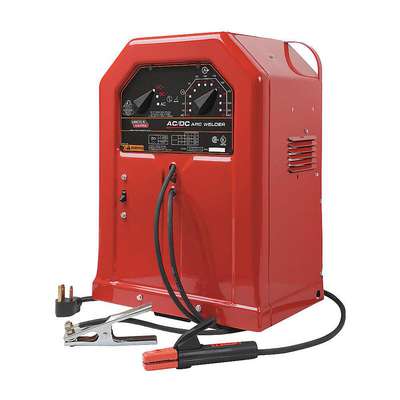

Lincoln Electric AC/DC Stick Welder, AC/DC 225/125 Series, Input Voltage: 240

Hover over image to magnify
Stick Welder,225AC/125DC,230V,
PI_Asset_965938
PI_Asset_965939
PI_Asset_965940
PI_Asset_965941
Stick Welder,225AC/125DC,230V,
PI_Asset_965938
PI_Asset_965939
PI_Asset_965940
PI_Asset_965941

#925488-1 | Pkg Qty: 1

$1,228.18 pkg | $1,228.18 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
225 A
Overall Depth
12 in.
Brand
LINCOLN ELECTRIC
Overall Height
24 in.
Duty Cycle
AC 225 A @ 25V, 20% / DC 125 A @ 25V, 20%
Overall Width
17-1/4 in.
Hz
50/60 Hz
Package Quantity
1
Input
50/36
Phase
Single-Phase
Input Voltage
240 VAC
Rated Output
225AC/125DC
Item
Stick Welder
Series
AC/DC 225/125
Mfr. Part Number
K1297
Shipping Weight
117 lb.
OCV
79-73V
Welding Processes
Stick Welding (SMAW)
General
Effective Input Current
50/36 A (Single-Phase)
Power Cord Included
Yes
Includes
Heavy Duty Work Clamp and Cable, Insulated Electrode Holder and Cable
Rated Output at Duty Cycle (Stick)
225 A @ 20%
Input (Amps)
50/36
Stick Welding Maximum Output Current
225 A
Input Voltage (Nominal)
240V
Stick Welding Minimum Output Current
40 A
Kit Includes
Stick Electrode Holder with Cable, Work Cable with Clamp
Stick Welding Output @ Duty Cycle
225 A @ 25 V, 20%
Max. Amperage Range (Stick)
150 A — 300 A
Welder Kit Type
Stick Package
Open Circuit Voltage
73 V DC, 79 V AC
Welder Type
Stick Package
Output Amps @20% Duty Cycle
225/125
Welding Amp Range High
225
Output Range (Amps)
AC: 40 to 225, DC: 30 to 125
Welding Amp Range Low
30
Overall Depth (In.)
12 in
Welding Mode
CC
Overall Height (In.)
24 in
Welding Range (Amps AC)
30 to 225
Overall Width (In.)
17 1/4 in
Welding Range (Amps DC)
30-125

Product Description

The AC/DC 225/125 provides a smooth, stable arc for AC or DC welding. It features a front-mounted AC/DC polarity switch and full-range amperage selector switch. Use with mild steel, low hydrogen, stainless steel and hardfacing electrodes.
