FLINT & WALLING

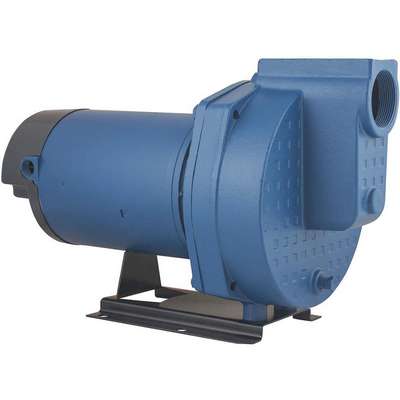

120/240 VAC Cast Iron Sprinkler Pump, 1-Phase, 2" NPT Inlet Size
Hover over image to magnify
#925487 | Pkg Qty: 1
$1,082.14 pkg | $1,082.14 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CE
Mfr. Warranty Length
1 yr.
Amps
14.0/7.0 A
Minimum GPM @ Head
0 gpm @ 98 ft.
Bearing Type
Ball
Motor Enclosure
ODP
Brand
FLINT & WALLING
Motor Type
Single-Phase
Drain Plug
Yes
NEMA/IEC Frame
56J
Duty
Continuous
Outlet
1-1/2 in.
Frame
56J
Outlet Size
1-1/2 in. NPT
GPM @ 10 PSI
53
Package Quantity
1
GPM @ 20 PSI
43
Phase
1
GPM @ 25 PSI
37
RPM
3450
GPM @ 40 PSI
15
Seal Application
Water
GPM of Water @ 2 Ft. of Head
64
Seal Material
Carbon, Silicon Carbide
Height
14 in.
Seal Type
Rotary
Horsepower
3/4
Service Factor
1-1/4
Housing Material
Cast Iron
Shaft Material
Stainless Steel
Hz
60
Shipping Weight
62 lb.
Impeller Material
Noryl
Stages
1
Impeller Type
Closed
Suction Lift
25 ft.
Inlet
2 in.
Thermal Protection
Automatic Reset
Item
Sprinkler Pump
Type
Self-Priming
Length
21-1/2 in.
Voltage
120/240 VAC
Maximum Case Pressure
100 psi
Volute Material
Noryl
Maximum Pressure
100 psi
Wetted Materials
Cast Iron, Noryl
Mfr. Part Number
SPJ07P1
Width
13-1/2 in.
General
Application
Lawn Sprinkling, Irrigation and Water Transfer
GPM @ 35 PSI
25
Case Pressure (Maximum)
100 psi
Intake Type
NPT
Compatible Discharge Pipe Size
1 1/2 in
Intake and Discharge Size
2 in , 1 1/2 in
Compatible Intake Pipe Size
2 in
Manufacturer Warranty Length
1 yr
Discharge Type
NPT
Maximum Feet of Head
98 ft
Electrical Connection Type
Plug-In
Motor Enclosure Type
ODP
Features
Easy Access Drain Plug
Motor Frame Designation
56J
Flow Rate @ 10 psi
53 gpm
Nameplate Voltage
120/240V AC
Flow Rate @ 15 psi
48 gpm
Pressure Pump Type
Sprinkler Pump
Flow Rate @ 20 psi
43 gpm
Priming
Self-Priming
Flow Rate @ 30 psi
31 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 40 psi
15 gpm
Pumping Application
Irrigation
Flow Rate @ 5 psi
60 gpm
Shut Off Pressure (Maximum)
100 psi
For Use With
Lawn Irrigation
Suction Lift (Maximum)
25 ft
For Use With Potable Systems
Yes
Thermal Overload Protection
Yes
GPM @ 15 PSI
48
Wetted Material
Cast Iron, Noryl
GPM @ 30 PSI
31
Product Description
This Flint & Walling sprinkler pump employs an air-water mixture to reach a fully-primed pumping condition. It can clear its passages of air if it becomes air bound and continues delivery of the pumpage without outside intervention.
