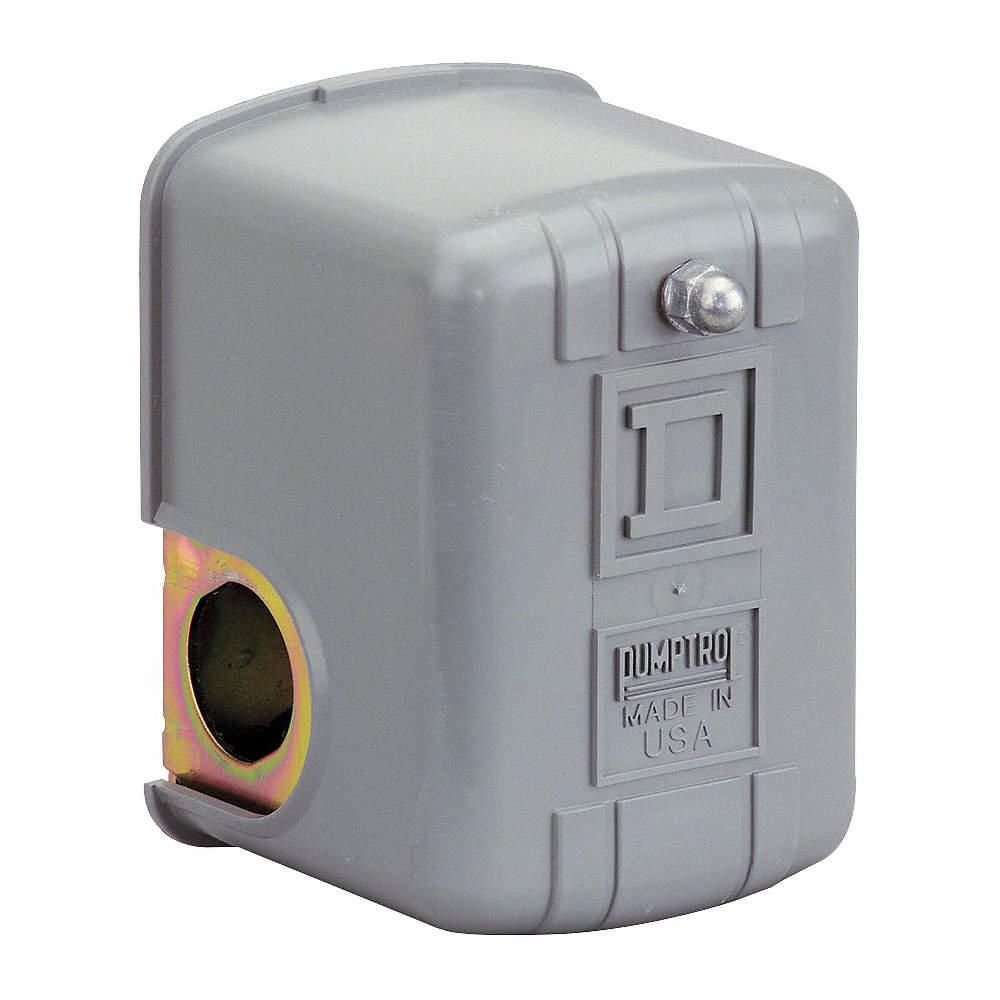

Square D Air Compressor Pressure Switch; Range: 40 to 150 psi, Port Type: (1) Port, 1/4" FNPS

Name: Square D Air Compressor Pressure Switch; Range: 40 to 150 psi, Port Type: (1) Port, 1/4" FNPS
Brand: SQUARE D
SKU: 9254515
Price: 52.36 USD
Availability: InStock

Hover over image to magnify

Square D Air Compressor Pressure Switch; Range: 40 to 150 psi, Port Type: (1) Port, 1/4" FNPS Video

Double tap image to magnify

#925451-5Pkg Qty: 1

$52.36 pkg | $52.36 ea

In Stock

Shipping to 43085

Expected to arrive Wed. Apr 02.

Technical Specifications

Key Specifications

AC Contact Rating

10 A @ 575 V

NEMA Rating

Action

Standard

Number of Ports

Actuation Type

Diaphragm

Package Quantity

Amperage

10 A

Phase

Single/Three

Brand

SQUARE D

Port Type

1-Port 1/4 in. FNPS

Burst Pressure

220 psi

Pressure Range

40 to 150

Contact Form

DPST

Pressure Switch Action

Standard

Contact Type

DPST

Pressure Switch Application

Air Compressor

DC Contact Rating

1/4 HP @ 115 VDC, 1/4 HP At 230 VDC

Pressure Switch Differential

30 PSI

Differential

30 PSI

Pressure Switch Electrical Contact Form

DPST

Differential Pressure

Pressure Switch Factory On/Off Setting

120/150 PSI

Enclosure

NEMA 1

Pressure Switch Port Type

(1) Port, 1/4 in. FNPS

Factory On/Off Setting

120/150 psi

Pressure Switch Range

40 to 150 psi

HP @ 1 Phase - 120 V

Pressure Switch Unloader

HP @ 1 Phase - 230 V

Range

40 to 150 PSI

HP @ 1 Phase - 240 V

Series

9013Fhg

IP Rating

Shipping Weight

1.08 lb.

Item

Pressure Switch

Temperature Range

-22 deg. F to 257 deg. F

Manual Switch Action

Auto/Off

Type

Air Compressor

Mfr. Part Number

9013FHG32J55M1

Unloader

General

HP @ 1 Phase - 240V

3 hp

Special Features

Nitrile (Buna-N) Diaphragm

HP @ 3 Phase - 480V

1 hp

Standards

UL 508, NEC Article 430-84, ANSI /NSF Standard 61, FDA 21CFR.2600, CSA Certified

Includes

Maintained Manual Cut-Out Lever (Auto-Off)

Product Description

This pressure switch features a fixed differential, an actuated diaphragm, and contacts designed to open with rising pressure. It is designed to control electrically driven air compressors and pumps.
