PARKER

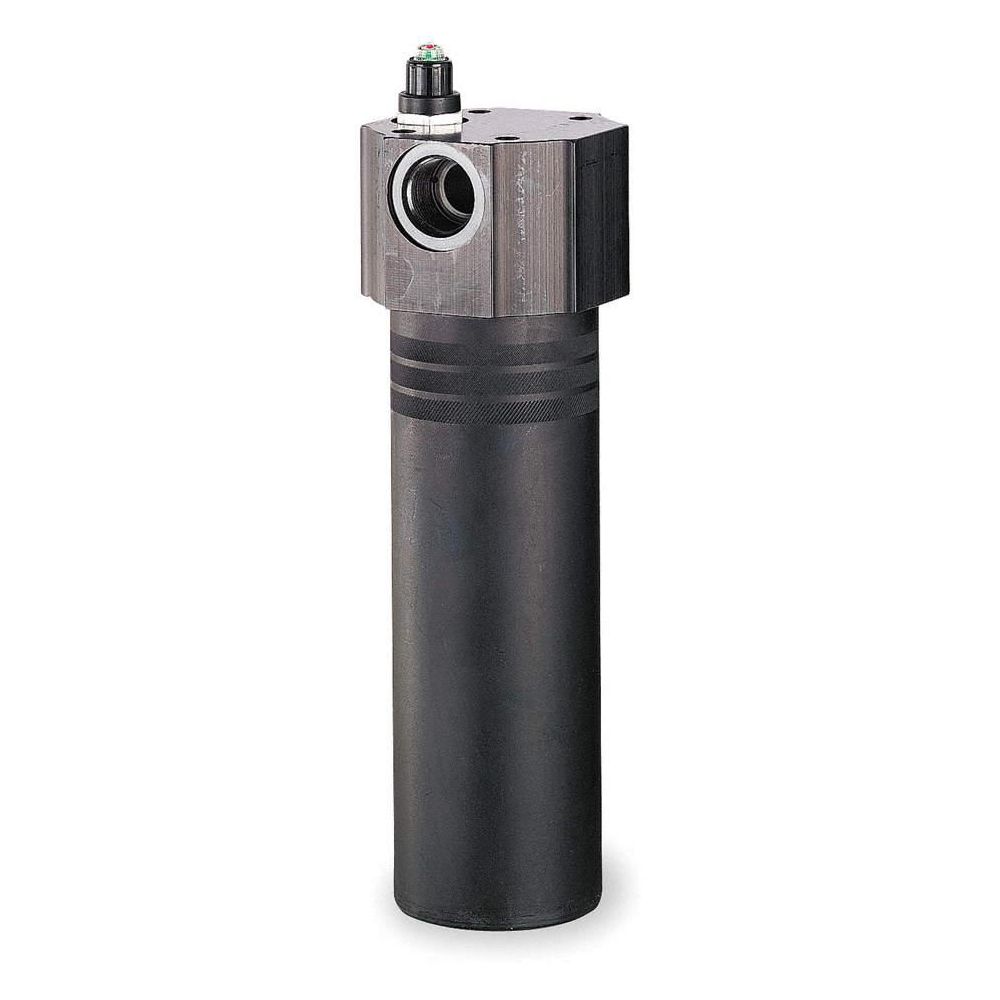

Hydraulic Pressure Filter: Double Length, 50 gpm Nominal Flow, 3,000 psi Max. Pressure

Hover over image to magnify
Filter,Pressure
Filter,Pressure

#925436-9 | Pkg Qty: 1

$741.99 pkg | $741.99 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
PARKER
Overall Height
14.3 in.
Item
Hydraulic Pressure Filter
Package Quantity
1
Mfr. Part Number
30P210QBM2KS161
Shipping Weight
9.9 lb.
Micron Rating
10
General
Base Dia.
3.89 in
Inlet Port Thread Size
SAE
Bypass Valve Pressure
50 psi
Max. Fatigue Pressure Rating
2000 psi
Filter Media - Filters
Fiberglass
Max. Pressure
3,000 psi
Head Type - Filters
Single
Nominal Flow
50 gpm
Housing Type - Filters
Double Length
Outlet Port Thread Size
SAE
Indicator Style - Filters
Pop Up

Product Description

Pressure filter assemblies for hydraulic pressure lines are used to clean hydraulic oil or fluid in pressurized hydraulic systems. They include a housing head and a replaceable filter element and are designed for high flow rates and systems pressurized at 1,000 psi or higher. Pressure filters should be changed when they become dirty or clogged as a result of normal wear. Clean hydraulic fluid reduces contaminant buildup, reduces maintenance costs, and extends the working life of system components. They are installed between the pump and the valves and cylinders to protect them from wear and contamination.

Pressure-line hydraulic cartridge filters clean hydraulic oil or fluid in pressurized hydraulic systems. These high-pressure hydraulic filters are designed for high flow rates and systems pressurized at 1,000 psi or higher. Clean hydraulic fluid reduces contaminant buildup, reduces maintenance costs, and extends the working life of system components. Pressure-line hydraulic cartridge filters are installed between the pump and the valves and cylinders to protect valves and cylinders from wear and contamination. Hydraulic pressure filters have a replaceable filter element that can be changed when it becomes dirty or clogged. Filters are used in mobile and industrial hydraulic systems.

Expertly Selected Product Pairings

Filter Element,10 Micron,50
$180.63 pkg | $180.63 ea
Item: 917239 | Pkg Qty: 1

Item Barcode
9254369
Filter,Pressure
 NameItemDescription
Grainger DropshipGrainger Dropship5Z282Filter, Pressure
UNSPSC CODESUNSPSC CODES40161515
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Filter, Pressure
