DAYTON

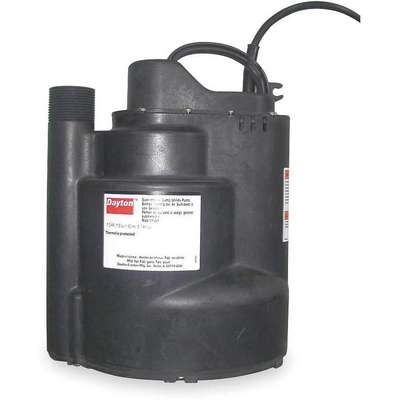

1/2 HP Submersible Sump Pump, Vertical Switch Type, Polypropylene Base Material

Hover over image to magnify
Sump Pump,1/2 Hp,1-1/4" NPT,10
PI_Asset_950592
PI_Asset_950593
Sump Pump,1/2 Hp,1-1/4" NPT,10
PI_Asset_950592
PI_Asset_950593

#925415-1 | Pkg Qty: 1

$220.14 pkg | $220.14 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Alarm
No
Maximum Diameter Solids
1/8 in.
Alarm Included
No
Maximum Head
35 ft.
Amps
5.1 A
Maximum Liquid Temperature
104°F
Base Material
Polypropylene
Maximum Temperature (Deg. F)
104
Bearing Type
Lubricated Ball
Mechanical Seal
Buna N
Brand
DAYTON
Mfr. Part Number
3YU59
Cord Length
10 ft.
Minimum Sump Pit Diameter
8 in.
Diameter
8-1/2 in.
NEC Cord Designation
SJTW
Discharge NPT
1-1/4 in. M
Off Point
1-49/64 in.
Duty
Intermittent
On Point
4-29/32 in.
GPM of Water @ 10 Ft. of Head
36
Package Quantity
1
GPM of Water @ 15 Ft. of Head
31
Pump Body Material
Polypropylene
GPM of Water @ 20 Ft. of Head
24
Pump HP
1/2
GPM of Water @ 25 Ft. of Head
18
Pump Type
Automatic
GPM of Water @ 30 Ft. of Head
4
Shaft Material
Stainless Steel
GPM of Water @ 5 Ft. of Head
41
Shaft Seal
CRB/CMC
Gauge/Conductor
18/3
Shaft Seal Material
Carbon, Ceramic
Height
11 in.
Shipping Weight
12.1 lb.
Horsepower
1/2
Sump Pump Item
Submersible Sump Pump
Housing
Polypropylene
Switch Type
Vertical
Housing Material
Polypropylene
Top Material
Polypropylene
Hz
60
Type
Automatic
Impeller Material
Polyamide
Voltage
120 VAC
Item
Submersible Sump Pump
General
Body Dia.
8 1/2 in
Flow Rate @ 5 Ft. of Head
41 gpm
Discharge Dia.
1 1/4 in
Min. Sump Pit Dia.
8 in
Discharge Gender
Male
Nominal Voltage
110 V AC
Discharge Standard
NPT
Rated Voltage
115V AC
Flow Rate @ 10 Ft. of Head
36 gpm
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 15 Ft. of Head
31 gpm
Switch Actuation
Vertical Float
Flow Rate @ 20 Ft. of Head
24 gpm
Switch Electrical Connection
Integral

Product Description

These 110V plastic submersible sump pumps have a plastic body that won't corrode and are commonly used to drain water in sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
