HUBBELL KILLARK

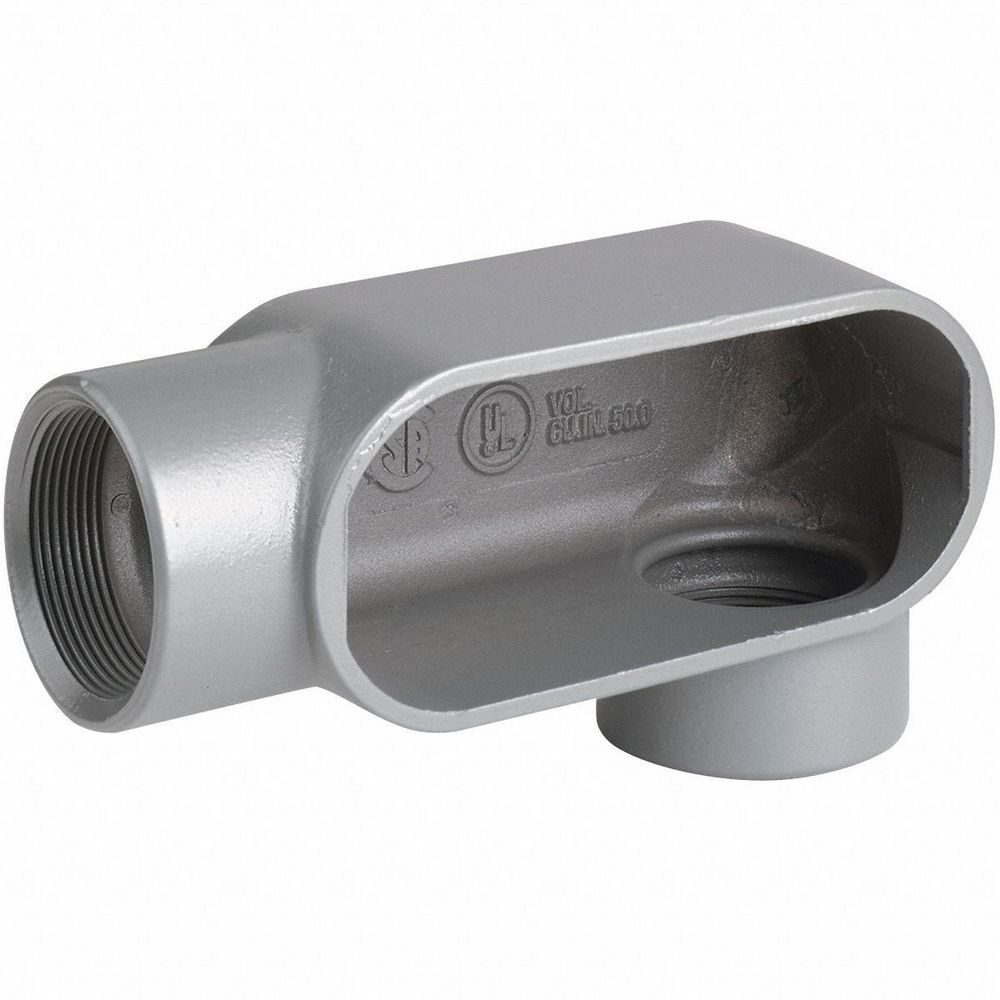

Hubbell Killark LL-Style 3/4" Conduit Outlet Body, Threaded Iron, 7.0 cu."

Hover over image to magnify
Conduit Outlet Body,Iron,LL,3/
PI_Asset_1983238
Conduit Outlet Body,Iron,LL,3/
PI_Asset_1983238
Double tap image to magnify
Conduit Outlet Body,Iron,LL,3/
2NA62_1
Conduit Outlet Body,Iron,LL,3/
2NA62_1

#925377-9Pkg Qty: 1

$30.70 pkg | $30.70 ea

In Stock

Shipping to 43085
Expected to arrive Thu. Mar 27.
|

Technical Specifications

Key Specifications
Back Type
Flat
Hazardous Location Rating
Class I, Division 2, Class I, Zone 2
Body Capacity
7.0 cu. in.
Hub Size
3/4 in.
Body Hub Size
3/4 in.
Hub Style
Threaded
Body Hub Style
Threaded
Item
Conduit Outlet Body
Body Style
LL
Material
Iron
Body Type
Conduit Outlet Body
Material of Construction
Iron
Brand
HUBBELL KILLARK
Mfr. Part Number
LL27
Capacity
7.0 cu. in.
Number of Hubs
2
Color Family
Gray
Overall Height
3-3/4 in.
Conduit Outlet Body Capacity
7.0 cu. in.
Overall Length
11 in.
Conduit Outlet Body Hub Size
3/4 in.
Overall Width
7 in.
Conduit Outlet Body Hub Style
Threaded
Package Quantity
1
Conduit Outlet Body Material
Iron
Series
Duraloy 7
Conduit Outlet Body Style
LL
Shape
LL
Conduit Outlet Body Type
Conduit Outlet Body
Shipping Weight
1.26 lb.
Connection Type
Threaded
Thread Size
3/4 in.
Design Type
Flat Back
Thread Type
NPT
Finish
Powder Coated
Threaded / Not Threaded
Threaded
Form
Form 7
Trade Size
3/4 in.
Hazardous Location
No
General
Compatible Conduit Trade Size
3/4 in
For Use With
IMC, RMC
Compatible Conduit Type
IMC, RMC
Standards
CSA, UL
Compatible Cover
270, 270C, 270CG, 270CGSA, 270CSA, 270G, 270GSA, 270SA
Style of Hub
Threaded
Connection Orientation
90°
Thread Gender
Female

Product Description

Conduit Bodies

  • For a NEMA 3 seal, use with cover and neoprene gasket (both sold separately) except as noted
  • Flat-back design increases wiring capacity and mounting stability. Hubbell bodies feature smooth, integral wire bushings to protect against damage while wire-pulling. Each includes stainless steel screws.
  • CSA Certified. Thomas & Betts covers are also RoHS compliant.
  • Hubbell Duraloy®7 Gray Iron
  • Spring-clip cover ensures easy installation. Duraloy® tricoat finish provides superior corrosion protection.
