TSURUMI

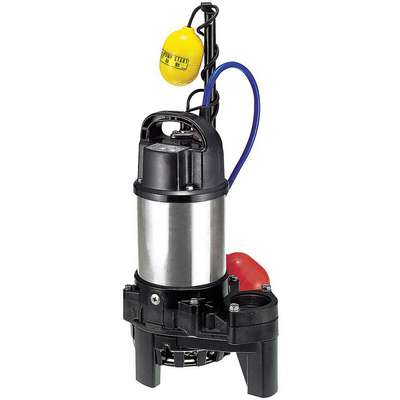

1/2 HP Electric Submersible Submersible Sewage Pump, 115 Voltage, 62 GPM of Water @ 15 Ft. of Head

Hover over image to magnify
Pump,Electric Submersible,1/2
Pump,Electric Submersible,1/2

#925364-4 | Pkg Qty: 1

$2,243.96 pkg | $2,243.96 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL 778
Maximum Diameter Solids
25/64 in.
Amps
5.8 A
Maximum Head
43 ft.
Base Material
Resin
Maximum Liquid Temperature
104°F
Bearing Type
Double Shielded Pre Lubricated Ball
Mfr. Part Number
50TMA2.4S-63  (AUTO, 115V)
Brand
TSURUMI
Mfr. Warranty Length
2 yr.
Cord Length
32 ft.
Motor RPM
3397
Diameter
9-5/16 in.
Motor Type
Air Filled
Discharge NPT
2 in.
Off Point
516 in.
GPM of Water @ 10 Ft. of Head
72
On Point
4-1/2 in.
GPM of Water @ 15 Ft. of Head
62
Package Quantity
1
GPM of Water @ 20 Ft. of Head
52
Phase
1
GPM of Water @ 25 Ft. of Head
40
Pump HP
1/2
GPM of Water @ 30 Ft. of Head
27
Pump Type
Electric Submersible
GPM of Water @ 40 Ft. of Head
6
Shaft Material
Titanium
GPM of Water @ 5 Ft. of Head
79
Shaft Seal
Silicon Carbide
Height
14-3/4 in.
Shaft Seal Material
Silicone Carbide
Horsepower
1/2
Shipping Weight
16 lb.
Housing
Titanium
Switch Type
None
Housing Material
Titanium
Thermal Protection
Yes
Impeller Material
Resin
Top Material
Resin
Input Phase AC
1
Voltage
120 VAC
Item
Submersible Sewage Pump
Warranty
2 yr.
General
Body Dia.
9 5/16 in
Max. Liquid Temp.
104 Degrees F
Discharge Dia.
2 in
Min. Sump Pit Dia.
8 in
Discharge Gender
Female
Nominal Voltage
110V AC
Discharge Standard
NPT
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
72 gpm
Rated Voltage
120V AC
Flow Rate @ 15 Ft. of Head
62 gpm
Shaft Seal Material - Pumps
Silicone Carbide
Flow Rate @ 20 Ft. of Head
52 gpm
Standards
UL 778
Flow Rate @ 40 Ft. of Head
6 gpm
Switch Actuation
Tether Float
Includes
float switch
Switch Electrical Connection
Integral

Product Description

These general purpose 110 to 120V sewage ejector pumps remove sewage containing solids from drains where a gravity system won't work, such as in septic systems that are below the main sewer line. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.

Expertly Selected Product Pairings

Extension Cord, 100' 12 Gauge
$152.05 pkg | $152.05 ea
Item: 910929-3 | Pkg Qty: 1
Check Valve 1 1/2"
$26.04 pkg | $26.04 ea
Item: 910956-1 | Pkg Qty: 1
Sewage Basin,Inlet 4 In,65 Gal.
$489.04 pkg | $489.04 ea
Item: 912680-7 | Pkg Qty: 1
Check Valve,2 In,Slipxslip,PVC
$51.41 pkg | $51.41 ea
Item: 912791-2 | Pkg Qty: 1
Extension Cord,50ft
$79.49 pkg | $79.49 ea
Item: 914087 | Pkg Qty: 1

Documents

Tsurumi 50TM2.4S Performance Curve
Tsurumi 50TMA2.4S Operation Manual
Tsurumi 50TMA2.4S Dimensions
Tsurumi 50TMA2.4S Sectional View Parts List
Tsurumi 50TMA2.4S Exploded View Parts List
