GROZ

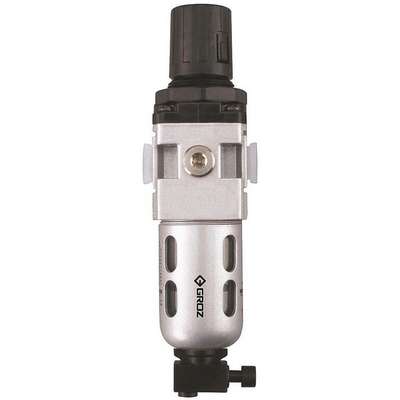

Filter-Regulator: 1/4 in NPT, 20 cfm, 40 micron, 7 psi to 145 psi, 145 psi Max Op Pressure
Hover over image to magnify
#925305-5 | Pkg Qty: 1
$38.81 pkg | $38.81 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment
7 to 145 psi
Maximum Temperature
140 deg. F
Adjustment Knob
Yes
Mfr. Part Number
FRC139134-S
Air Consumption
scfm
Overall Height
6.69 in.
Bowl Material
Polycarbonate with Guard
Overall Width
1.57 in.
Brand
GROZ
Package Quantity
1
Drain Type
Semi Automatic
Pipe Size
1/4 in. NPT
Filter Rating
40 micron
Product Size
Miniature
Item
Filter/Regulator
Replaces
Dynaflo 0425935, Jupiter 42007393
Maximum Flow
20 cfm
Shipping Weight
.85 lb.
Maximum Pressure
145 psi
General
Adjustment Location
Top
Filter Rating - Air Treatment
40 micron
Adjustment Mechanism
Knob
For Fluid Type
Compressed Air
Adjustment Mechanism Material
Acetal
For Removal Of
Dirt, Dust, Moisture
Adjustment Range
7 to 145 psi
For Substance Type
Air
Adjustment Range - Air Treatment
7 to 145 psi
Gauge Port Size
1/8 in
Air Flow Direction
Left to Right
Includes
(1) Filter-Regulator Combination
Air Inlet Gender
Female
Max. Flow - Air Treatment
20 cfm
Air Inlet Type
NPT
Max. Flow Range - Air Treatment
11 to 20 cfm
Air Outlet Gender
Female
Max. Incoming Pressure - Air Treatment
145 psi
Air Outlet Size
1/4 in
Maximum Flow @ 100 psi
20 cfm
Air Outlet Type
NPT
Maximum Regulated Pressure
145 psi
Bowl Material - Air Treatment
Polycarbonate with Guard
Minimum Regulated Pressure
7 psi
Bowl Size - Air Treatment
0.3 oz
Modular Connection
Modular Connection
Connection Size - Air Treatment
1/4 in NPT
Pressure Drop
17 psi
Drain Part Compatibility
SC2004
Pressure Gauge Port Gender
Female
Filter Bowl Capacity
0.3 oz
Pressure Gauge Port Size
1/8 in
Filter Bowl Guard Included
Yes
Pressure Gauge Port Type
NPT
Filter Bowl Guard Material
Steel
Regulator Type
Relieving
Filter Bowl Material
Plastic
Size - Air Treatment
Subcompact
Filter Element Material
Bronze
System Location
Air Line
Product Description
Air filter and air regulator all in a single unit. Features a nighttime drain that automatically operates once the main air line is switched off. The built-in bronze filter can be easily cleaned and offers long service life.
