DELAVAN AG PUMPS

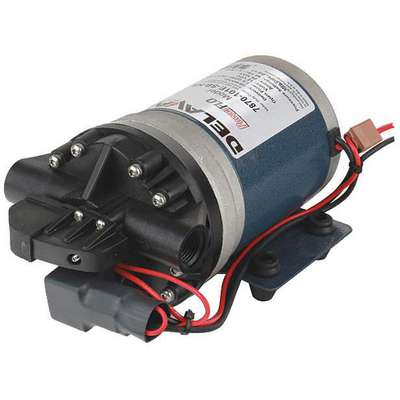

Diaphragm Pump: 1/2 in FNPT, 12V DC, 7 gpm Max. Flow, 60 psi Max. Pressure - Pumps
Hover over image to magnify
#925298-2 | Pkg Qty: 1
$305.77 pkg | $305.77 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CE/NSF
Maximum Pressure
60 psi
Body Material
Polypropylene
Maximum Temperature (Deg. F)
140
Brand
DELAVAN AG PUMPS
Mfr. Part Number
7870-101E-SB-HS
Check Valve
Santoprene®
Motor Type
Totally Enclosed Nonventilated
Diaphragm Design
Santoprene®
Package Quantity
1
Diaphragm Material
Santoprene®
Pressure Off
100 psi
Fuse Amps
30 A
Pressure On
20 psi
GPM @ 20 PSI
6
Pressure Switch
Yes
GPM @ 40 PSI
5.2
Prime in Feet
14
Housing Material
Polypropylene
Self-Priming
Yes
Inlet/Outlet
1/2 in. FNPT
Shipping Weight
10.55 lb.
Item
Diaphragm Pump
Type
Diaphragm
Maximum Flow
7.0 gpm
Voltage
12 VDC
General
Features
Heat Sink On Motor to Keep It Cool, FB2 Series
Max. Pressure - Pumps
60 psi
GPM @ 0 PSI
7 gpm
Voltage - Pumps
12V DC
Housing Material - Pumps
Polypropylene
Product Description
2-chamber double-diaphragm pump can be used for chemical transfer, soap dispensing, or to inject liquid fertilizer. Pump operates with CO2, nitrogen, or clean, filtered, compressed air. Performance varies with liquid viscosity.
Item Barcode
Pump,1/2" Fnpt,7.0 Gpm Max.,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 55NL34 | Pump,1/2" FNPT,7.0 gpm |
 | UNSPSC CODES | 40151548 | |
 | VMRS (ATA) CODES | 053-006-009 | Pump,1/2" FNPT,7.0 gpm |
