MADISON

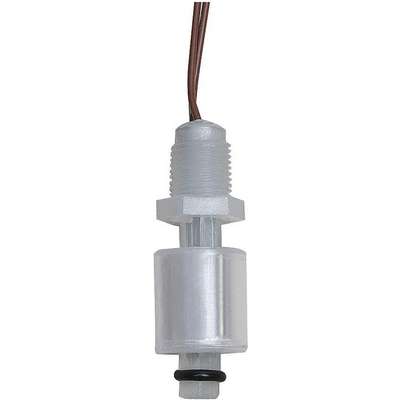

Madison Vertical Open Tank Liquid Level Switch, Open On Rise, Polypropylene, 1/8" NPT
Hover over image to magnify
#925281-3 | Pkg Qty: 1
$39.81 pkg | $39.81 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL, CSA, CE
Mfr. Part Number
M3326-NPT
Body Material
Polypropylene
Mounting
Vertical Open Tank
Brand
MADISON
Mounts
Vertical
Conduit Size
1/8 in.
Operating Temperature Range
221 deg. F
Connection
1/8 in. NPT
Operation
Open on Rise
Contact Form
SPST
Overall Length
1.85 in.
Electrical Connections
22 ga. PTFE Coated 24 in. Leads
Shipping Weight
.04 lb.
Fitting
1/8 in. NPT
Specific Gravity
0.6
Float Diameter
0.58 in.
Stem Length
1-1/4 in.
Float Length
0.63 in.
Stem Material
Polypropylene
Float Material
Polypropylene
Switch Function
Open On Rise
Float Specific Gravity
0.6
Switch Type
SPST
Height
1.68 in.
Tank Connection Size
1/8 in. NPT
Item
Liquid Level Switch
Type
Subminiature Liquid Level Control
Maximum Current
0.12A
VA Rating
15
Maximum Pressure
50 psi
Width
0.58 in.
Maximum Temperature (Deg. C)
105
Wire Gauge
22 AWG
Maximum Temperature (Deg. F)
221
Wire Lead
2
Maximum Voltage
240 V
General
Operating Temp. Range
221°F Max
Standards
UL, CSA, CE
Product Description
This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.
Item Barcode
Lqd Lvl Swch,Vrtcl,1/8" Npt,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5DYC4 | Lqd Lvl Swch, Vrtcl,1/8" |
 | UNSPSC CODES | 39122219 | |
 | VMRS (ATA) CODES | 053-006-009 | Lqd Lvl Swch, Vrtcl,1/8" |
