JOHNSON CONTROLS

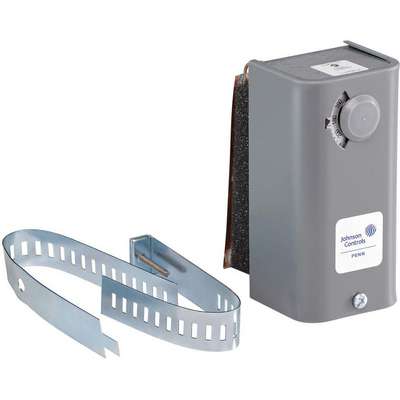

Johnson Controls Line Volt Mechanical Tstat for Heating and Cooling, 24 to 277VAC
Hover over image to magnify
#925210-7 | Pkg Qty: 1
$110.08 pkg | $110.08 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL E6688; CSA LR948/4813 02
Mfr. Part Number
A19DAC-1C
Brand
JOHNSON CONTROLS
Number of Stages
1
Color Family
Gray
Package Quantity
1
Depth
1-13/16 in.
Shipping Weight
1 lb.
Differential
7°F
Switch Type
SPDT
Height
4-3/8 in.
Voltage
24 to 277 VAC
Item
Line Voltage Mechanical Thermostat
Width
2-1/8 in.
General
Contact Type
Snap Action
Minimum Control Temperature
100 Degrees F
Differential Type
Adjustable
Pilot Duty Rating
125 A @ 24 to 277V AC
Electrical Connection Type
Hardwired
Sensor Location
Remote
Enclosure Finish
Baked Enamel
Sensor Type
Copper Bulb
Enclosure Material
Steel
Switch Action
Open/Close on Rise
Enclosure NEMA Rating
NEMA 1
Switch Type/Action
SPDT, Open/Close on Rise
For Use With
Fluid Piping Applications
Temperature Control Range
100 Degrees to 240 Degrees F
Includes
Adjustable Mounting Straps
Temperature Differential
10 Degrees F
Key Features
Color Coded Electrical Terminals, Dust Protected Switch
Temperature Scale
Fahrenheit
Locked Rotor Amps @ 120V
60 A
Temperature Sensitivity
+/-4 Degrees F
Locked Rotor Amps @ 240V
36 A
Thermostat Type
Line Voltage
Maximum Control Temperature
240 Degrees F
Product Description
These sensor temperature controls surface-mount on pipes to monitor and regulate the temperature of the liquid flowing within. Also known as surface-mounted temperature controls, they can be mounted in any position. They're commonly used to detect high temperatures in boilers and low temperatures in unit heater coils.
Item Barcode
Line V Mechanical Tstat,24 To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 38Y073 | Line V Mechanical |
 | UNSPSC CODES | 41112209 | |
 | VMRS (ATA) CODES | 053-006-009 | Line V Mechanical |
