DAYTON

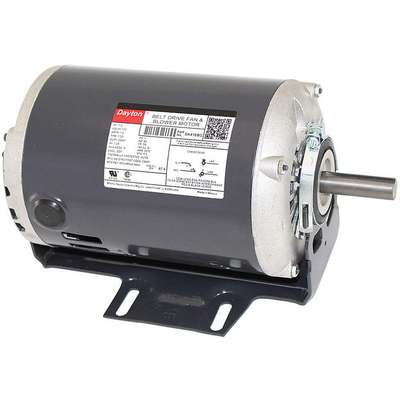

Dayton 1/2 HP Belt Drive Motor, Split-Phase, 1725 Nameplate RPM, 115 Voltage, Frame 56
Hover over image to magnify
#925173 | Pkg Qty: 1
$261.20 pkg | $261.20 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mounting
Cradle Base
Brand
DAYTON
NEMA/IEC Frame
56
Duty
Continuous
Nameplate RPM
1725
Duty Cycle
Continuous
Overall Length
11-5/16 in.
Enclosure
Open Dripproof
Package Quantity
1
Frame
56
Phase
Split
Full Load Amps
7.2
Rotation
CW/CCW
Hz
60
Service Factor
1-1/4
Insulation Class
B
Shaft Length
1-7/8 in.
Item
Belt Drive Motor
Shipping Weight
21.11 lb.
Length Less Shaft
9-7/16 in.
Speed
1
Mfr. Part Number
5K416BG
Thermal Protection
Auto
Motor Design
Split-Phase
Voltage
115 VAC
Motor Type
Split-Phase
General
Body Dia.
5 5/8 in
Motor Shaft Design
Keyed
HP
1/2
Motor Shaft Rotation
CW/CCW
Includes
Shaft Key
Motor Sub Application
Belt Drive Fan/Blower
Ins. Class
B
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 °C
No. of Speeds
1
Motor Application
HVAC/R
Nominal Efficiency
67.8 %
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Enclosure Design
Open Dripproof
Resilient Ring Dia.
2 1/2 in
Motor Frame Material
Rolled Steel
Ring to Ring Center
9 in
Motor Mounting Position
All Angle
Shaft Dia.
5/8 in
Motor Mounting Type
Cradle Base
Standards
UL Recognition (E37403) and CSA Certification (258501)
Motor Service Factor
1.25
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Product Description
Split-phase belt drive HVAC AC motors have low to moderate starting torque and provide smooth, soft, start-ups for use in HVAC equipment that must gradually come up to speed.
Expertly Selected Product Pairings
Item Barcode
Motor,1/2 Hp,Split Ph,1725 Rpm,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5K416 | Motor,1/2 HP, Split Ph, |
 | UNSPSC CODES | 26101105 | |
 | VMRS (ATA) CODES | 053-006-009 | Motor,1/2 HP, Split Ph, |
