HUBBELL WIRING DEVICE-KELLEMS

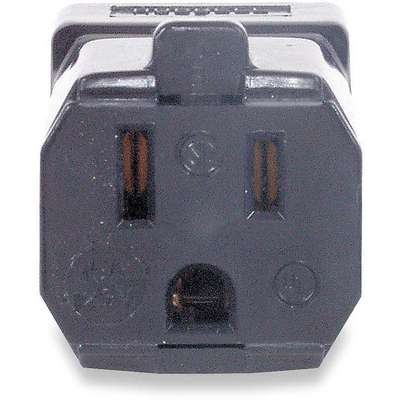

Hubbell Wiring Device-Kellems 15 Amp Commercial Grade Hinged Straight Blade Connector, 5-15R NEMA Configuration, Black
Hover over image to magnify
#925151-1 | Pkg Qty: 1
$33.86 pkg | $33.86 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Maximum Wire Size
12 AWG
Amps
15 A
Mfr. Part Number
HBL5969VBLK
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Cap Type
No Cap or Cover
NEMA Configuration - Plugs & Connectors
5-15
Color Family
Black
NEMA Plug Configuration
5-15R
Connection Orientation
Straight
NEMA Receptacle Configuration
5-15R
Contact Material
Brass
Number of Poles
2
Cord Size
0.220 in to 0.660 in
Number of Wires
3
Corrosion Resistant
No
Overall Length
2.68 in.
Current Rating
15 A
Package Quantity
1
Description
Valise, Grounding
Phase
Single
For Environment
Dry
Polarized
Yes
For Location
Indoor
Power Indicating Light
No
For Maximum Cable Diameter
0.66 in.
Power Indicator
No
For Minimum Cable Diameter
0.22 in.
Shipping Weight
.15 lb.
Grade
Commercial
Shrouded
No
Grounding
Grounded
Special Features
Moisture, Dust, and Weather Resistant
Horsepower
1/2 hp
Standards
CSA Certified, NEMA WD-6 Compliant, UL Listed
Housing Color
Black
Sub-Category
Connectors
Housing Material
Thermoplastic Elastomer
Type
Valise
IP Rating
IP20
Voltage
125VAC
Item
Straight Blade Connector
Voltage Rating
125V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Material of Construction
Nylon
Wiring Style
Hinged
Maximum Operating Temperature
75 °C
General
Amps - Plugs and Receptacles
15 A
Special Features
Moisture, Dust, and Weather Resistant
Grade - Plugs and Receptacles
Commercial
Sub-Category
Connectors
HP
1/2 hp
Voltage - Plugs and Receptacles
125V AC
NEMA Plug Configuration - Plugs and Receptacles
5-15R
Product Description
NEMA Straight-Blade Plugs and Connectors
- CSA Certified.
- Valise®
- 1-pc. nylon construction with load-bearing locking lugs and 2 assembly screws provide a quick, secure assembly. Large, easy-to-wire terminal clamps feature a bundling effect on conductors. Powerful offset cord grip resists conductor slippage and prevents strain on terminations.
Expertly Selected Product Pairings
Item Barcode
Connector,5-15R,15A,125V
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3D225 | Connector,5- 15R,15A,125V |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 053-006-009 | Connector,5- 15R,15A,125V |
