CARLING TECHNOLOGIES

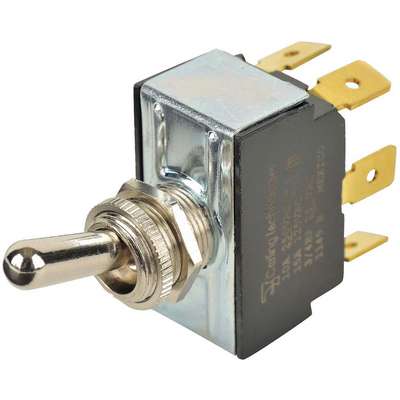

Carling Technologies Toggle Switch, Number of Connections: 6, Switch Function: On/Off/On
Hover over image to magnify
#925136-6 | Pkg Qty: 1
$5.76 pkg | $5.76 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
15 A @ 125 VAC, 10 A @ 250 VAC
Number of Connections
6
Actuator Length
0.68 in.
Operating Temperature Range
3 deg. F to 185 deg. F
Actuator Style
Bat
Package Quantity
1
Brand
CARLING TECHNOLOGIES
Shipping Weight
.05 lb.
Contact Form
DPDT
Stem Diameter
15/32
Contact Rating @ 125 V (Amps)
15
Stem Diameter/Thread Size
15/32-32UNS-2A x 0.5 in. Dia.
Contact Rating @ 250 V (Amps)
10
Stem Length
0.465 in.
Horsepower
2022-03-04
Style
Bat
Item
Toggle Switch
Switch Function
On/Off/On
Mfr. Part Number
2GM51-73
Terminals
Quick Connect
Mounting Hole
0.50 in. dia.
Type
Maintained
Mounting Type
Panel
General
HP
3/4 hp
Stem Dia. and Thread Size
15/32-32 UNS-2A x 0.5 in dia
Operating Temp. Range
32° to 185°F
Product Description
The CARLING TECHNOLOGIES toggle switch is designed for use in electric motors, appliances, power tools, light fixtures, and instruments. C-UL Recognized. CSA Certified.
Expertly Selected Product Pairings
Item Barcode
Toggle Switch,Dpdt,10A @ 250V,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4X851 | Toggle Switch,DPDT, |
 | UNSPSC CODES | 39122211 | |
 | VMRS (ATA) CODES | 034-004-081 | Toggle Switch,DPDT, |
