ELKAY

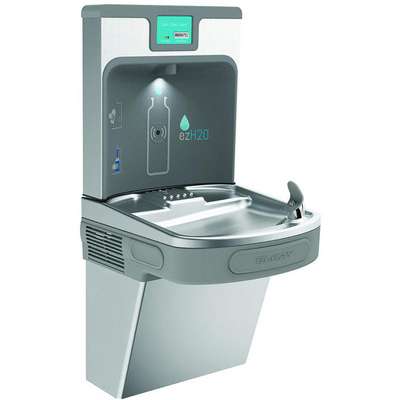

Refrigerated, Dispenser Design Wall, Water Cooler with Bottle Filling Station, Number of Levels 1

Hover over image to magnify
Watrcoolr w/Bttl Fllngstatn,39-
PI_Asset_978481
Watrcoolr w/Bttl Fllngstatn,39-
PI_Asset_978481

#925134-8 | Pkg Qty: 1

$1,890.52 pkg | $1,890.52 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
Yes
Item
Water Cooler with Bottle Filling Station
Brand
ELKAY
Mfr. Part Number
LZS8WSSP
Color Family
Silver
Mounting
Wall
Depth
19 in.
Operation
Electronic Sensor (Bottle Filler), Front and Side Pushbar (Cooler)
Full Load Amps
4.2A
Package Quantity
1
GPH
8.0 gph
Shipping Weight
71 lb.
Height
39-7/16 in.
Voltage
115 VAC
Indoor/Outdoor
Indoor
Width
18-3/8 in.
Inlet Size
3/8 in. Tube O.D.
General
ADA Compliant
Yes
Includes Water Filter
Yes
Bottle Dispenser Actuation
Sensor
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Bottle Filler Actuation
Touchless Bottle Filler
Maximum Cold Water Temperature
50 Degrees F
Bottle Filler Depth
3 1/2 in
Maximum Constant Stream Pressure
105 psi
Bottle Filler Width
18 in
Minimum Constant Stream Pressure
20 psi
Chilling Capacity
8 gph @ 50 Degrees F
Minimum Supply Line Pressure
20 psi
Cold Water Capacity
8 gph
Mounting Hole Diameter
7/16 in
Compressor Horsepower
1/5 hp
Mounting Location
Wall Surface Mount
Cooling Capacity
8 gph @ 50 Degrees F
Number of Bubblers
1
Drain Outside Diameter
1 1/4 in
Number of Mounting Holes
3
Drinking Fountain Operation
Push Bar Fountain
Operating Voltage
115V AC
Environment
Indoor
Power Consumption
370 W
Filter Status Indicator
Yes
Refrigerant Type
R134A
Fountain Actuation
Front Pushbar/Side Pushbar
Refrigerated
Yes
Fountain and Bottle Dispenser Operation
Front Pushbar/Side Pushbar ; Sensor
Refrigeration
Refrigerated
Fountain and Bottle Filler Type
Bottle Filling Dispenser
Standards
ADA, Buy American Act, ASME A112.19.3/CSA B45.4, CAN/CSA C22.2 120, GreenSpec, NSF 372 (lead free), NSF 42, NSF 53, NSF 61, UL 399
Housing Finish
Plain
Station Type
Bottle Filling Dispenser, Single Fountain
Housing Material Finish
Silver Stainless Steel Plain
Temperature Adjustment
Factory Set but Adjustable
Includes
Filter
Water Filter Included
Filtered

Product Description

This Elkay® Enhanced EZH2O® Bottle Filling Station and Single ADA Cooler is a complete cooler and bottle-filling station in a consolidated, space-saving ADA-compliant design. The bottle filler features a sanitary, touchless sensor activation for easy use. It also has a laminar flow that helps provide clean fill with minimal splash and the real drain system helps eliminate standing water. The Flexi-Guard® Safety Bubbler has a simple push bar activation. A 3000 gal. filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction. For convenience, LED lights indicate when filter change is necessary and automatically updates LED status when it recognizes a new filter. Refrigeration may be powered off when not in use, to help reduce energy consumption. Silver ion anti-microbial protection on key plastic components helps inhibit the growth of mold and mildew. Low-energy LED light helps assist with filling dark bottles and illuminate dark hallways. The Green Ticker™ informs you of the number of 20 oz. plastic water bottles saved from waste. Both cooler and bottle filler ship together in 1 box. Suitable for indoor, wall-mount applications.
