DAYTON

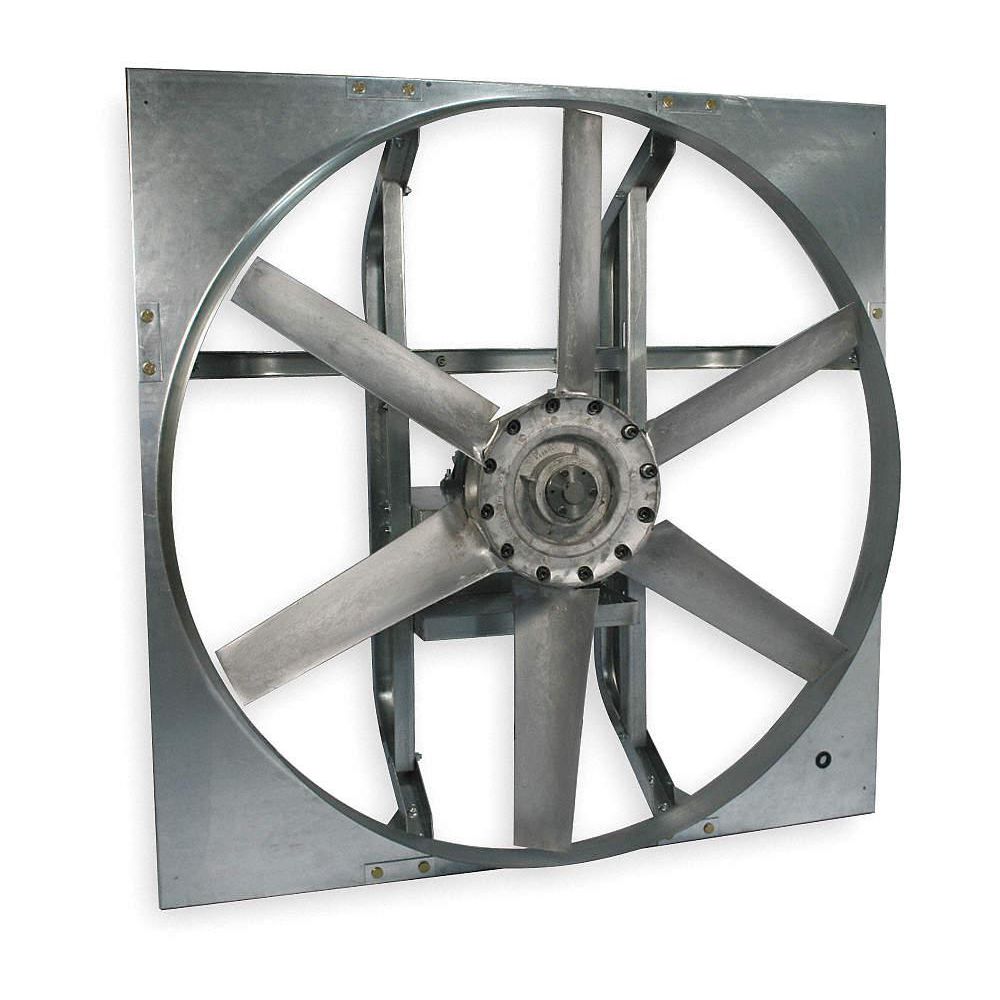

Dayton Supply Fan: 60 in Blade, Cast, Unassembled

Hover over image to magnify
Supply Fan,Less Drive Package
Supply Fan,Less Drive Package

#925107-1 | Pkg Qty: 1

$4,549.60 pkg | $4,549.60 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
AMCA, UL/cUL
Mounting Position
Vertical or Horizontal
Bearing Type
Regreasable Cast Pillow Block
Number of Blades
6
Blade Diameter
60 in.
Outside Diameter
66 in.
Blade Material
Cast Aluminum
Overall Depth
35-1/2 in.
Brand
DAYTON
Package Quantity
1
Height
66 in.
Shaft Diameter
1-3/4 in.
Item
Supply Fan
Shipping Weight
515 lb.
Mfr. Part Number
3FKD6
Width
66 in.
General
Assembled
Unassembled
For Motor Horsepower (Motor Sold Separately)
5 hp to 15 hp
Bearing Size
1 3/4 in
For Motor Speed (Motor Sold Separately)
485 RPM to 699 RPM
Fan Style
Panel
Includes
Bearing Plate, Heavy-Duty Drive Frame Channels, Motor Plate
Flange Depth
2 in
Manufacturer Warranty Length
1 yr
For Air Flow (Dependent on Motor)
48,356 cfm to 69,692 cfm
Maximum Airflow
69,692 cfm
For Cut-Out Diameter
63 1/2 in
Maximum Ambient Operating Temperature
104 Degrees F
For Cut-Out Height
62 1/2 in
Maximum Inlet Temperature
104 Degrees F
For Cut-Out Width
62 1/2 in
Maximum Static Pressure
0.75 in wg
For Maximum Motor Horsepower
15 hp
Minimum Airflow
48,356 cfm
For Maximum Motor Speed
699 RPM
Square Opening Required
Greater than 30 in
For Minimum Motor Horsepower
5 hp
Ventilation Type
Supply
For Minimum Motor Speed
485 RPM
Venturi Diameter
61 in

Product Description

Heavy-duty supply fan features 6-blade cast aluminum propellers and drive-frame channels. Has variable pitch, adjustable motor pulley that helps optimize fan performance. Designed for commercial applications requiring high volumes of air at low static pressures. Air handling-quality bearings meet a minimum of L10-100,000 hours. Motors, sheaves, bushings, and belts are packed separately when complete fan with drive package is ordered. Has regreasable cast pillow block. Mounts supply fan vertical and for exhaust horizontal. Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel. Review OSHA codes and UL standards. See index under Guards, Fan.
