TSURUMI

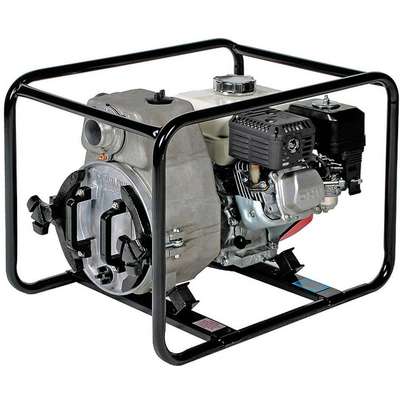

5-1/2 HP Aluminum, Cast Iron 163cc Engine Driven Trash Pump, .95 gal Tank Capacity

Hover over image to magnify
Engine Driven Trash Pump,5-1/2
PI_Asset_1355476
Engine Driven Trash Pump,5-1/2
PI_Asset_1355476

#925101-1 | Pkg Qty: 1

$1,391.08 pkg | $1,391.08 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
EPA/CARB
Material of Construction
Aluminum, Cast Iron
Bearing Type
Ball, Permanently Lubricated and Sealed
Maximum Head
90 ft.
Brand
TSURUMI
Maximum Pressure
39 psi
Casing Adapter
Aluminum
Maximum Specific Gravity
1
Check Valve
Buna-N
Maximum Suction Lift
26 ft.
Drain Plug
2 in. NPT
Mechanical Seal
Silicon Carbide
Duty
Heavy
Mfr. Part Number
EPT3-50HA
Engine Brand
Honda
Mfr. Warranty Length
2 yr.
Engine RPM
3600
Minimum GPM @ Head
2 gpm @ 85 ft.
Engine Size
163 cc
Motor RPM
3600
Engine/Motor Type
Gas
Motor Type
Gas Engine
GPM of Water @ 10 Ft. of Head
180
Outlet
2 in. NPT
GPM of Water @ 2 Ft. of Head
188
Package Quantity
1
GPM of Water @ 20 Ft. of Head
160
Port Rotation
None
GPM of Water @ 25 Ft. of Head
160
Roll Bar Frame
Steel
GPM of Water @ 30 Ft. of Head
150
Screw Material
Galvanized Steel
GPM of Water @ 40 Ft. of Head
130
Seal Material
Silicon Carbide
GPM of Water @ 50 Ft. of Head
100
Seal Type
Mechanical
GPM of Water @ 60 Ft. of Head
75
Self-Priming
Yes
GPM of Water @ 70 Ft. of Head
50
Sensor Type
Low Oil
GPM of Water @ 80 Ft. of Head
25
Shaft Material
Stainless Steel
Height
17-1/2 in.
Shipping Weight
110 lb.
Horsepower
5-1/2
Solids Handling Capacity
1 in.
Housing Material
Cast Aluminum
Temperature Range
33 deg. F to 104 deg. F
Ignition Type
Recoil
Type
Centrifugal
Impeller Material
Chrome Iron
Volute Material
Cast Iron
Impeller Type
Semi Open
Volute/Wear Plate
Cast Iron
Inlet
2 in.
Wetted Materials
Cast Iron
Item
Engine Driven Utility Pump
Width
18-1/4 in.
Length
23-1/4 in.
General
Application
Dewatering
Frame Design - Pumps
Full Tubular Frame
Discharge Dia.
2 in
HP
5 1/2 hp
Discharge Gender
Male
Impeller Design
Semi-Open
Discharge Standard
NPT
Inlet Dia.
2 in
Flow Rate @ 10 Ft. of Head
180.0 gpm
Inlet Gender
Male
Flow Rate @ 20 Ft. of Head
160.0 gpm
Inlet Standard
NPT
Flow Rate @ 40 Ft. of Head
130.0 gpm
Max. Diameter Solids
1 in
Flow Rate @ 60 Ft. of Head
75.0 gpm
Maximum Discharge Pressure
39 psi
Flow Rate @ 80 Ft. of Head
25.0 gpm
Maximum Self-Priming Lift
20.0 ft
For Use With
Unclean Water

Product Description

These remote-location engine-driven trash and utility pumps are gasoline powered so they don't need to be placed near an electrical outlet, and they run for long periods of time between refueling. They transfer large amounts of water containing medium to large solids, and they drain water using an inlet hose so the pumps don't have to be placed in the water that needs to be drained. Pumps have a tubular frame to protect the engine and the pump.

Documents

Tsurumi EPT3-50HA Spec Sheet
Tsurumi EPT3-50HA OIPM
Tsurumi EPT3-50HA Parts List
