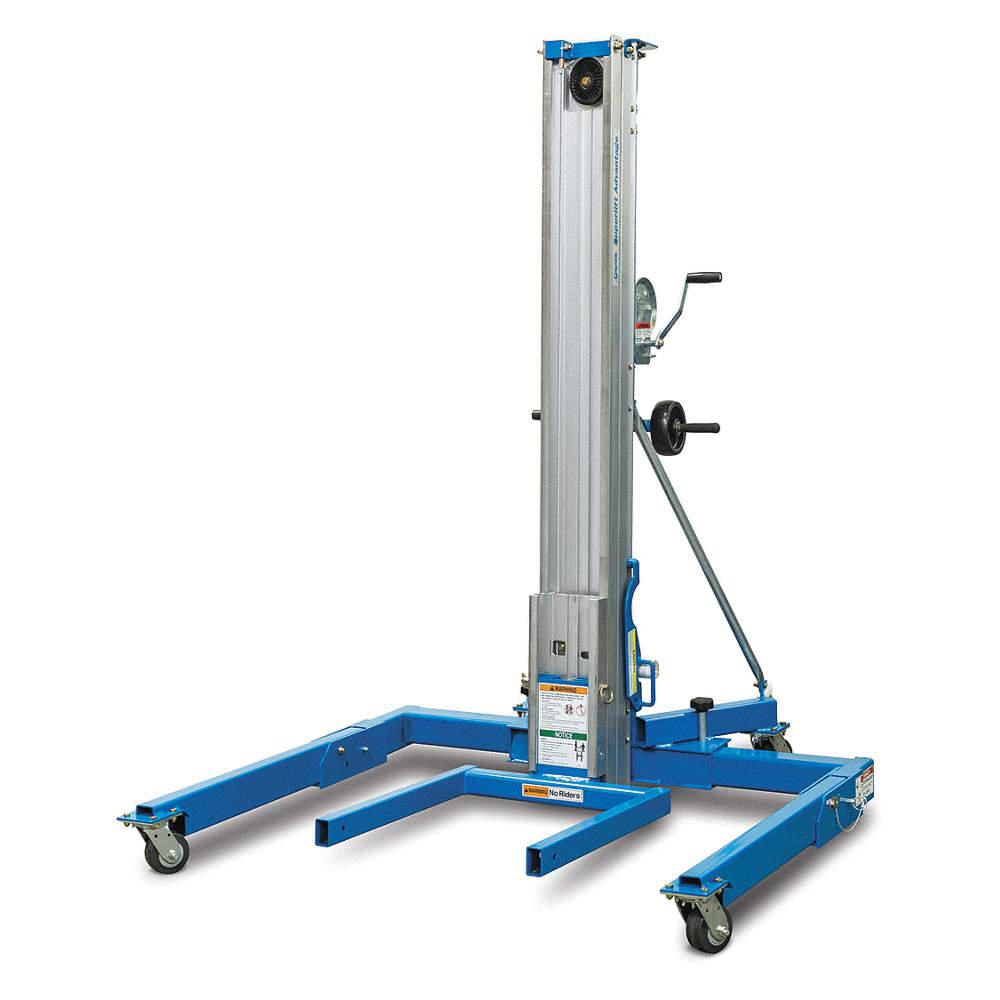

Genie Manual Lift, Manual Push Equipment Lift, 1000 lb. Load Capacity, Lifting Height Max.137-1/2"

Hover over image to magnify
Equipment Lift,Straddle,1000
PI_Asset_965438
PI_Asset_965439
PI_Asset_965440
Equipment Lift,Straddle,1000
PI_Asset_965438
PI_Asset_965439
PI_Asset_965440

#925099-1 | Pkg Qty: 1

$5,649.63 pkg | $5,649.63 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Base
Straddle
Lifting Height Minimum
6 in.
Base Legs Inside Dimensions
23-1/2 in. to 51 in.
Load Capacity
1000 lb.
Base Legs Outside Dimensions
31-1/2 in. to 58 in.
Load Center
18 in.
Brand
GENIE
Maximum Lifting Height
137-1/2 in.
Caster Wheel Type
(4) Swivel
Mfr. Part Number
SLA-10 STR
Fork Length
27-1/2 in.
Mfr. Warranty Length
1 yr.
Fork Width
23-1/2 in.
Minimum Lifting Height
6 in.
Frame Material
Steel
Overall Height
78-1/2 in.
Front Wheel Diameter
4 in.
Overall Length
59-1/2 in.
Invertible Forks
Yes
Overall Width
58 in.
Item
Equipment Lift
Package Quantity
1
Lift Base Style
Adjustable Straddle
Powered By
Manual Winch
Lift Control
Hand Winch
Shipping Weight
322 lb.
Lift Mechanism
Chain/Cable
Type
Straddle Base
Lift Mobility
Manual Lift, Manual Push
Warranty
2ACD6
Lifting Height Maximum
137-1/2 in.
General
Assembled
Yes
Lifting Height Forks Up
137 1/2 in
Axle-Mounted Wheel/Tread Material
Polyurethane
Lifting Height Max.
137 1/2 in
Base Inside Width
23 1/2 in to 51 in
Lifting Height Min.
6 in
Base Legs Inside Dim.
23 1/2 in to 51 in
Lifting Height per Pump
7/8 in
Base Legs Outside Dim.
31 1/2 in to 58 in
Lifting Height with Boom
129"
Base Outside Width
31 1/2 in to 58 in
Non-Marking Axle-Mounted Wheels
Yes
Caster Wheel Dia.
4 in, 5 in
Non-Marking Casters/Wheels
Yes
Caster Wheel Width
1 1/4 in
Overall Height with Forks Lowered
9 ft. 9 in
Caster/Wheel Configuration
(2) Swivel, (2) Swivel with Brake
Overall Height with Forks Raised
11 ft. 5 in
Fork Type
Invertible
Overall LxWxH
59 1/2 in x 58 in x 9 ft 9 in
Front Wheel Dia.
4 in
Rear Wheel Dia.
5 in
Height Stowed
78 1/2 in
Stowed Height
78 1/2 in
Includes
Telescoping Mast System and Manual One Speed Winch
Stowed Length
31 in
Includes Outriggers
Without Outriggers
Stowed Width
31 1/2 in
Lifting Height Forks Down
117 in

Product Description

General purpose manual material lifts are used for lifting and positioning loads such as ductwork, piping, HVAC or electrical equipment, and boxes or other containers. They have steel bases, lightweight aluminum telescoping masts, fixed-width tube forks, and a hand-winch lifting mechanism. When not in use, their mast can be lowered and their legs can be folded up or adjusted to allow the lifts to fit through doorways as they're being moved from one location to another.
