Dayton Propeller, 4-1/2 Propeller Dia. (In.), 300 CFM at 0.000-In. SP, Aluminum Blade Material

Hover over image to magnify

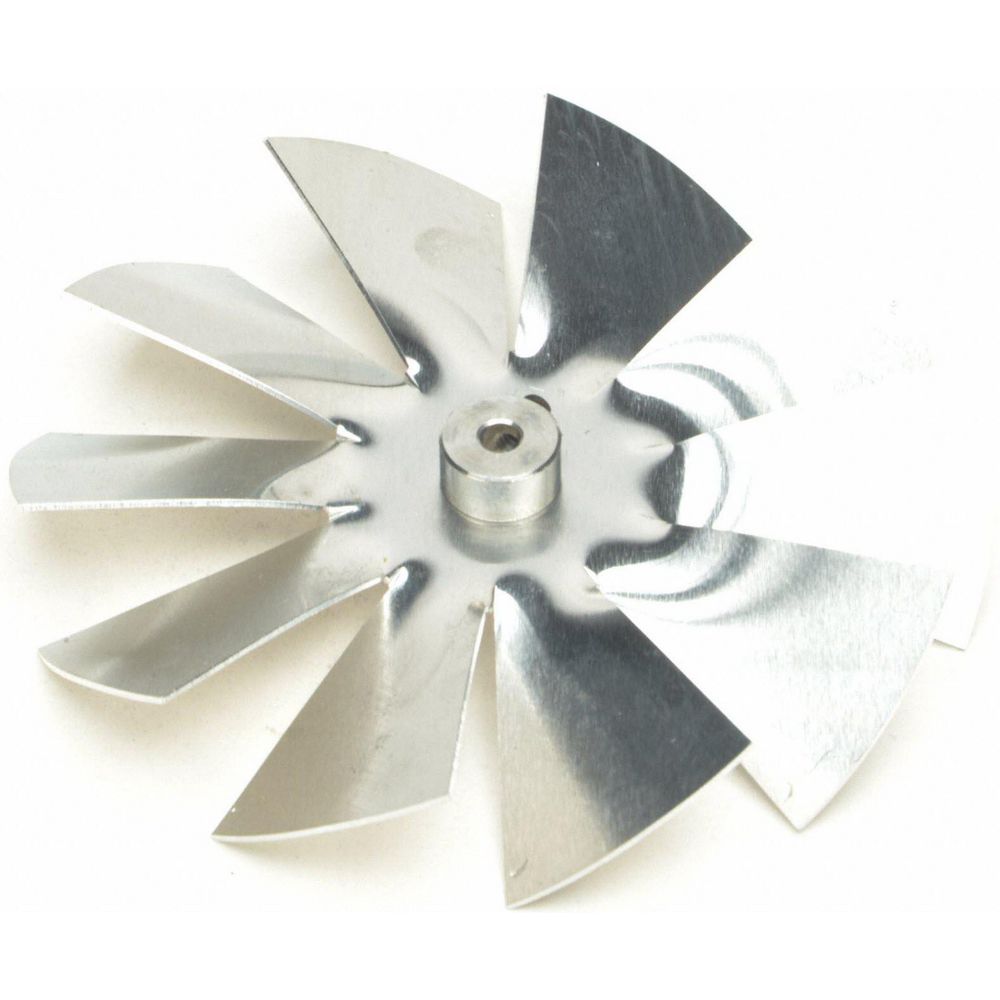

Propeller,Dia 4 1/2 In,30 Deg
PI_Asset_1371326
Propeller,Dia 4 1/2 In,30 Deg
PI_Asset_1371326
Double tap image to magnify
Propeller,Dia 4 1/2 In,30 Deg
2PYN5_SS01_R01_C23
Propeller,Dia 4 1/2 In,30 Deg
2PYN5_SS01_R01_C23

#925076-9Pkg Qty: 1

$7.71 pkg | $7.71 ea

In Stock

Shipping to 43085
Expected to arrive Fri. Mar 28.
|

Technical Specifications

Key Specifications
Blade Material
Aluminum
Number of Blades
10
Blade Width
3/4 in.
Package Quantity
1
Bore Diameter
3/16 in.
Propeller Diameter
4-1/2 in.
Brand
DAYTON
Rotation
CW Facing Discharge
Item
Propeller
Shipping Weight
.07 lb.
Mfr. Part Number
2PYN5
General
Blade Width (In.)
3/4 in
Number of Set Screws
1
Bore Dia. (In.)
3/16 in
Pitch (Deg.)
30 Degrees
CFM @ 0.000-In. SP
300
Propeller Dia. (In.)
4 1/2 in
Dimension A (In.)
3/4 in
Remarks
View Catalog Page For Better Selection Criteria
Max. RPM
3000
Required Motor HP
1/150

Product Description

Evaporator/Condenser Replacement Propellers

  • Propellers are individually retail packaged for easy identification and display Rotation-facing discharge For low static pressure applications
  • Lightweight construction reduces wear on motor bearing and prolongs motor life.
