JET

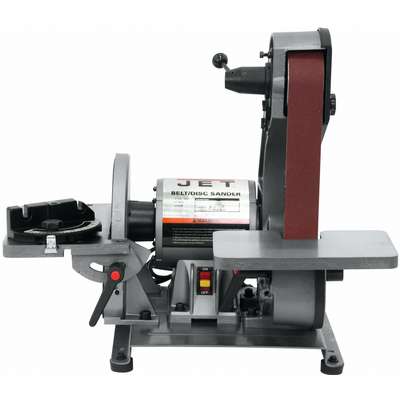

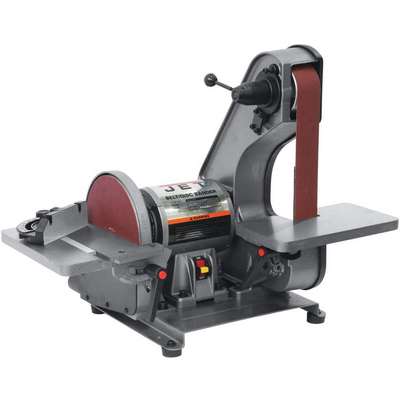

Jet Belt/Disc Sander: 3/4 HP, 8 in Disc Dia. , 3450, 2 x 42 Belt Size , Corded

Hover over image to magnify
Belt/Disc Sander,3/4 Hp,115V,6.
PI_Asset_979428
Belt/Disc Sander,3/4 Hp,115V,6.
PI_Asset_979428

#925076-3 | Pkg Qty: 1

$744.03 pkg | $744.03 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
6-1/2
Mfr. Part Number
577004
Brand
JET
Package Quantity
1
Corded/Cordless
Corded
Phase
1
Hz
60
Shipping Weight
67.1 lb.
Item
Belt/Disc Sander
General
Belt SFPM
3,100 SFPM
HP
3/4 hp
Belt Size (In.)
2 x 42
Includes
Miter Gauge, Cast Iron Tilting Table, Cast Construction, Heavy Duty Steel Base and Rubber Feet, Removable Platen, Adjustable Dust Deflector and Chute
Belt Table Tilt Angle (Deg.)
0 to 45
Overall Depth (In.)
20 1/2 in
Disc Dia. (In.)
8 in
Overall Height (In.)
20 in
Disc Speed (RPM)
3450
Overall Width (In.)
22 3/4 in
Disc Table Size (In.)
10-3/4 x 7-1/2
Table Material
Cast Iron
Disc Table Tilt-In Angle (Deg.)
45 Degrees
Table Work Surface (In.)
10 x 6
Dust Collection Port Size (In.)
1 1/2 in

Product Description

45 Deg Both Left and Right, Abrasive Belt Unit Does the Work of a Jig Saw, Allows for Sanding, Allows the Operator to Get Into Small Openings, Buff Or Finish Metal Surfaces In Addition to Defuzzing Wood Surfaces, Cast Construction, Cast Iron Tilting Table, Combined With the Tilting Table, Coping Saw Or Hand File While Removing Material and Finishing at the Same Time, Curves Or Odd Shaped Work Pieces on the Belt, Delivers Sharper, Deluxe Miter Gauge, Deluxe Miter Gauge That Turns and Locks for Common Angles, Dust Deflector and Chute, Easy Belt Changes With a Variety of Grit Belts, Faster Cutting Action, Grind, Grinding Or Finishing of Outside, Heavy Duty Steel Base and Rubber Feet, Hinged Idler Wheel Cover, Keeps the Machine Cool, Plus Handle Odd Shapes and Angles, Polish, Removable Platen, Sand Or Finish Large Work Pieces on the Disc Unit Fast and Efficiently, So One Can Complete a Wide Range of Jobs, Table Is Slotted to Accept Miter Gauge, the Operator Can Blend, the Operator Has the Advantage of Chamfering Or Beveling, When Using Non Woven Synthetic Belts

Item Barcode
9250763
Belt/Disc Sander,3/4 Hp,115V,6.
 NameItemDescription
Grainger DropshipGrainger Dropship42W960Belt/Disc Sander,3/4
UNSPSC CODESUNSPSC CODES27112708
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Belt/Disc Sander,3/4
