BERNER

Berner Air Curtain, 14 ft. Max. Door Width, 14 ft. Max. Mount Ht., 69 dBA @ 10 Feet, 7040 fpm

Hover over image to magnify

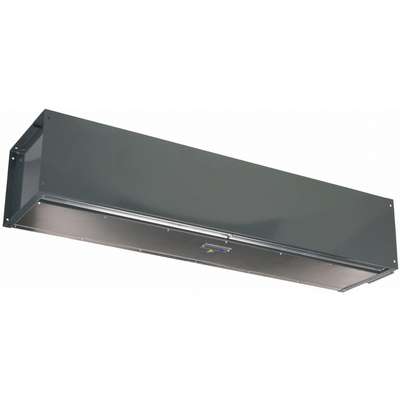

Air Curtain,14 Ft.,9944 Cfm
PI_Asset_1364785
Air Curtain,14 Ft.,9944 Cfm
PI_Asset_1364785
Double tap image to magnify
Air Curtain,14 Ft.,9944 Cfm
32GF26_SS01_R01_C23
Air Curtain,14 Ft.,9944 Cfm
32GF26_SS01_R01_C23

#924997-4Pkg Qty: 1

$7,781.25 pkg | $7,781.25 ea
This item requires special shipping, additional charges may apply.

Out of Stock

Shipping to 43085
Backordered, expected to arrive by end of Apr, 2025.
|

Technical Specifications

Key Specifications
Air Volume
9944 cfm
Motor HP
1
Brand
BERNER
Motor Type
Permanent Split Capacitor
Depth
18 in.
Package Quantity
1
Heated
No
Phase
3
Height
15 in.
Shipping Weight
468 lb.
Item
Air Curtain
Voltage
480
Mfr. Part Number
IDC14-4168AZ-G
Width
169 in.
General
Air Curtain Air Velocity
7040 fpm
Max. Amps
12.8
Air Curtain Finish
Aluminized
Max. Mounting Height
14 ft
Air Curtain Housing Material
Aluminum, Steel
Max. RPM
1,680 RPM
Air Curtain Max. Door Width
14 ft
Number of Motors
4
Air Curtain dBA @ 10 Feet
69 dBA
Standards
UL Indoor, UL Outdoor, CUL Indoor and AMCA
Includes
Door Limit Switch, Factory Mounted Control Panel with 120V Control Voltage, Plunger Style for Automatic Operation

Product Description

Air Curtain, Air Curtain Max. Door Width 14 ft, Max. Mounting Height 14 ft, Air Curtain Air Volume 9944 cfm, 69 Air Curtain dBA @ 10 Feet, Width 169 in, Height 15 in, Depth 18 in, Number of Motors 4, 3 Phase, Voltage 480, Max. Amps 12.8, Air Curtain Heated No, Air Curtain Air Velocity 7040 fpm, Air Curtain Finish Aluminized, Air Curtain Housing Material Aluminum, Steel, 50/60 Hz, Housing Color Gray/Silver, Motor Type Permanent Split Capacitor, Motor Enclosure Open Dripproof, Motor HP 1 hp

Item Barcode

9249974
Air Curtain,14 Ft.,9944 Cfm
