SUMITOMO

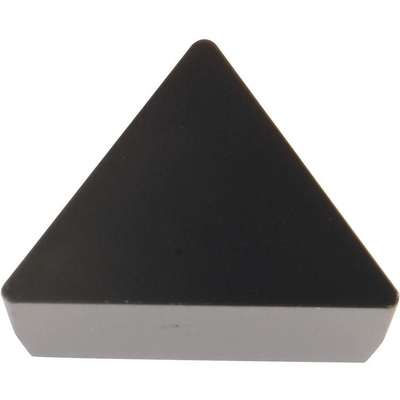

Triangle Turning Insert: 1/4 in Inscribed Circle, Neutral, 11° Clearance Angle, TPG Insert
Hover over image to magnify
#924958-6 | Pkg Qty: 10
$145.90 pkg | $14.59 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
TPG222
Insert Thickness
0.1250 in.
ANSI Number
TPG222-AC8025P
Item
Triangle Turning Insert
Brand
SUMITOMO
Mfr. Part Number
TPG222-AC8025P
Cast Iron Compatibility
Yes
Mounting Style
Screw-On
Chip-Breaker
No
Non Ferrous Compatability
No
Coating
Uncoated
Nose Radius
0.0313 in.
Corner Radius
0.0312 in.
Number of Cutting Edges
3
Cutting Direction
Neutral
Number of Edges
3
Grade
AC8025P
Package Quantity
10
Hardened Compatibility
No
Primary Material Application
Steel
ISO Number
TPGN110308
Rake
Positive
Included Angle
60
Shape
Triangle
Inscribed Circle
1/4 in.
Shipping Weight
0 lb.
Insert Application
Roughing
Style
TPG
Insert Material
Carbide
Thickness
1/8 in.
Insert Shape
Triangle
Turning Insert Shape
Triangle
Insert Size
222
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Insert Style
TPG
General
Application
Medium
For Use With
Toolholders, Boring Bars
Clearance Angle
11 Degrees
Insert Holding Type
No Screw Hole
Coating Process
CVD
Manufacturer Grade
AC8025P
Cutting Application
Turning
Material - Machining
Carbide
Features
Adhesion Resistant, Chipping Resistant
Measurement System
Fractional Inch
Finish - Machining
Absotech Platinum
Primary Material Application ISO Code
P25
Product Description
Triangle Turning Insert, Inscribed Circle 1/4 in, Absotech Platinum
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
Item Barcode
Turning Insert,Tpg,Carbide,222
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 52FX13 | Turning Insert,TPG, |
 | UNSPSC CODES | 23242105 | |
 | VMRS (ATA) CODES | 053-006-009 | Turning Insert,TPG, |
