CRYDOM

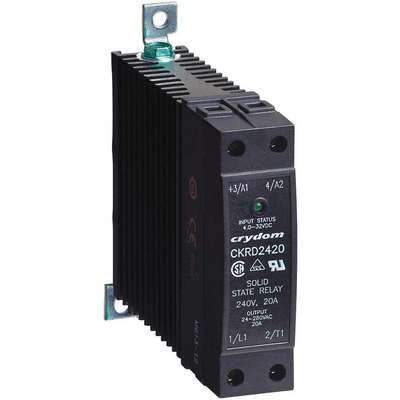

Crydom 1-Pole DIN Rail/Flange Mount Solid State Relay; Max. Output Amps w/Heat Sink: 30
Hover over image to magnify
#924905-1 | Pkg Qty: 1
$118.39 pkg | $118.39 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Maximum Output w/Heat Sink
30A
Body Depth
0.89 in.
Mfr. Part Number
CKRD4830
Body Height
3.9 in.
Minimum Input Volts
4-1/2
Body Width
3.2 in.
Minimum Output Volts
48
Brand
CRYDOM
Mounting
DIN Rail, Surface
Case Color
Black
Number of Poles
1
Contact Form
SPST-NO
Output or Controlled Voltage
48 to 530 VAC
Finger Safe
Yes
Overall Height
3.9 in.
Heat Sink
Integral
Package Quantity
1
Input Power Consumption
0.2 to 0.5 W
Phase
1
Input Voltage
4 to 32 VDC
Relay Turns On At
Zero Crossing
Input or Control Voltage
4 to 32 VDC
Shipping Weight
.65 lb.
Item
Solid State Relay
Switch Type
SCR
Maximum Input Volts
32
Turns On At
Zero Cross
Maximum Output Amps w/Heat Sink
30
Voltage Output
48 to 530VAC
Maximum Output Volts
530
General
Body Depth - Relay
0.89 in
Mounting - Relay
DIN Rail, Surface
Body Height - Relay
3.9 in
Mounting - Solid State Relay
DIN Rail/Flange
Body Width - Relay
3.2 in
Output or Controlled Voltage Range
48 to 530V AC
Contact Form - Relay
SPST-NO
Overall Height - Relay
3.9 in
Includes
Integral Heat Sink
Standards
UL, CSA, VDE
Max. Output Amps Without Heat Sink
30.0 A Integral Heat Sink
Product Description
Solid-State Relays
- Perform well in harsh environments. Epoxy-sealed SCR design allows use in moisture-prone applications.
