CRYDOM

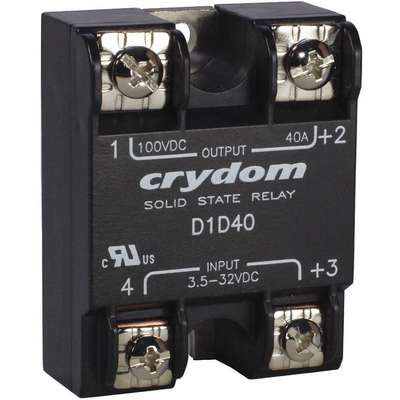

Crydom 1-Pole Surface Mount Solid State Relay; Max. Output Amps w/Heat Sink: 20
Hover over image to magnify
#924905 | Pkg Qty: 1
$89.70 pkg | $89.70 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Depth
2-1/4 in.
Maximum Output Volts
100
Body Height
0.9 in.
Maximum Output w/Heat Sink
20A
Body Width
1-3/4 in.
Mfr. Part Number
D1D20
Brand
CRYDOM
Minimum Input Volts
3-1/2
Case Color
Black
Minimum Output Volts
0
Contact Form
SPST-NO
Mounting
Surface
Finger Safe
No
Number of Poles
1
Heat Sink
Not Included
Output or Controlled Voltage
1 to 100 VDC
Input Power Consumption
0.9 W
Overall Height
0.9 in.
Input Voltage
3.5 to 32 VDC
Package Quantity
1
Input or Control Voltage
4 to 32 VDC
Phase
1
Item
Solid State Relay
Shipping Weight
.25 lb.
Maximum Input Volts
32
Switch Type
MOSFET
Maximum Output Amps w/Heat Sink
20
Voltage Output
1 to 100VDC
General
Body Depth - Relay
2.25 in
Mounting - Relay
Surface
Body Height - Relay
0.9 in
Mounting - Solid State Relay
Surface
Body Width - Relay
1.75 in
Output or Controlled Voltage Range
1 to 100V DC
Contact Form - Relay
SPST-NO
Overall Height - Relay
0.9 in
Max. Output Amps Without Heat Sink
12.0 A
Standards
UL, CE
Product Description
Solid State Relay, Input or Control Voltage 4 to 32V DC, Output or Controlled Voltage Range 1 to 100V DC, Max. Output Amps w/Heat Sink 20, Heat Sink Not Included, Switch Type MOSFET, Contact Form - Relay SPST-NO, Input Power Consumption (Burden) 0.9W, Mounting - Relay Surface, Finger Safe No
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Solid State Relay,3.5 To 32VDC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1DTL8 | Solid State Relay,3.5 to |
 | UNSPSC CODES | 39122324 | |
 | VMRS (ATA) CODES | 053-006-009 | Solid State Relay,3.5 to |
