SPEEDAIRE

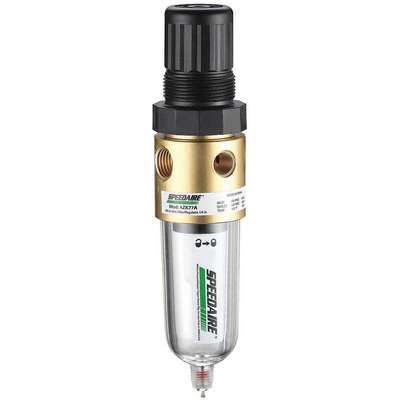

Filter-Regulator: 1/4 in NPT, 12 cfm, 5 micron, 5 psi to 125 psi, 150 psi Max Op Pressure
Hover over image to magnify
#924902-5 | Pkg Qty: 1
$54.98 pkg | $54.98 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment
5 to 125 psi
Maximum Temperature (Deg. F)
125
Adjustment Knob
Non Rising
Mfr. Part Number
4ZK77
Air Consumption
scfm
NPT
1/4 in.
Bowl Material
Polycarbonate
Overall Height
6.44 in.
Brand
SPEEDAIRE
Overall Width
1.63 in.
Filter Rating
5 micron
Package Quantity
1
Item
Filter/Regulator
Pipe Size
1/4 in. NPT
Maximum Flow
12 cfm
Product Size
Miniature
Maximum Flow (CFM)
12 CFM
Shipping Weight
.6 lb.
Maximum Pressure
150 psi
Type
Miniature with Brass Body
Maximum Temperature
125 deg. F
Width
1.63 in.
General
Adjustment Location
Top
For Fluid Type
Compressed Air
Adjustment Mechanism
Knob
For Removal Of
Particles, Water
Adjustment Mechanism Material
Reinforced Nylon
For Substance Type
Air
Adjustment Range - Air Treatment
5 to 125 psi
Gauge Port Size
1/8 in PTF
Air Flow Direction
Left to Right
Includes
Bowl
Air Inlet Gender
Female
Max. Flow - Air Treatment
12 cfm
Air Inlet Type
NPT
Max. Flow Range - Air Treatment
11 to 20 cfm
Air Outlet Gender
Female
Max. Incoming Pressure - Air Treatment
150 psi
Air Outlet Size
1/4 in
Maximum Regulated Pressure
125 psi
Air Outlet Type
NPT
Minimum Operating Pressure
0.85 MPa
Bowl Material - Air Treatment
Polycarbonate
Minimum Regulated Pressure
5 psi
Bowl Size - Air Treatment
1.0 oz
Modular Connection
No Modular Connection
Connection Size - Air Treatment
1/4 in NPT
Pressure Gauge Port Gender
Female
Drain Part Compatibility
1AKG5A
Pressure Gauge Port Size
1/8 in
Filter Bowl Capacity
1 oz
Pressure Gauge Port Type
PTF
Filter Bowl Material
Plastic
Regulator Type
Relieving
Filter Rating - Air Treatment
5 micron
Size - Air Treatment
Subcompact
Product Description
Modular connector allows easy removal and swap out. For Max. Flow, the CFM flow is measured with 150 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop.
