SPEEDAIRE

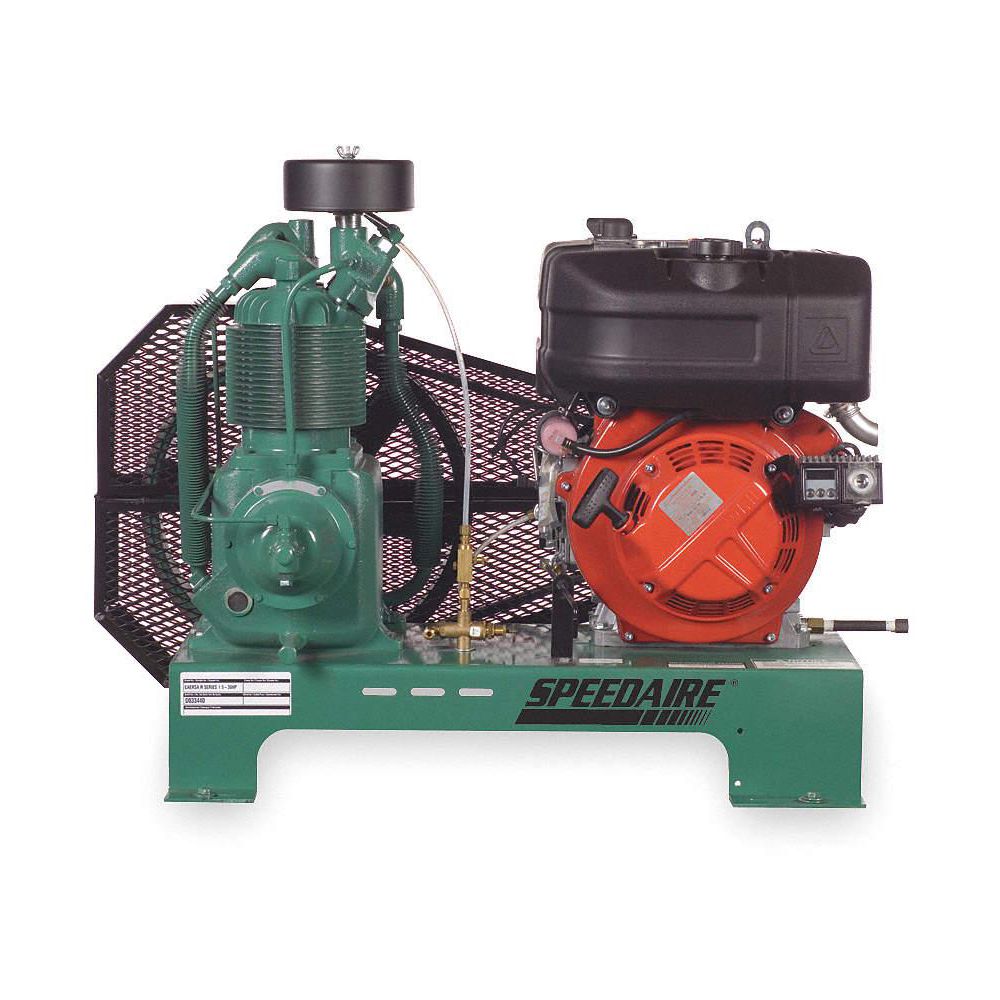

Stationary Air Compressor: 2 Stage, 9.1 hp Engine, Kohler, 20.1 cfm, Tankless
Hover over image to magnify
#924902-2 | Pkg Qty: 1
$10,201.03 pkg | $10,201.03 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Outlet
1/2 in.
Number of Stages
2
Air Consumption
scfm
Overall Height
30 in.
Brand
SPEEDAIRE
Overall Length
39 in.
Engine Brand
Kohler
Overall Width
21 in.
Finish
Oil Base Paint
Package Quantity
1
Free Air CFM @ Max Pressure
20.1
Pump RPM
870
Fuel Type
Diesel
Shipping Weight
372 lb.
Item
Stationary Air Compressor
Type
Two Stage
Maximum Pressure
175 psi
Width
21 in.
Mfr. Part Number
2EPN7
General
ASME Tank
Yes
Engine Starter Type - Air Compressor
Electric, Recoil
Air Compressor Oil Capacity
32 oz
Free Air CFM @ Max. Pressure
20.1
Air Tank Style
Tankless
Free Air CFM @ Max. Pressure - Air Compressor
20.1
Alternator Included
Yes
Free Air Flow Rate @ Maximum Pressure
20.1 cfm
Compressor Oil Stock No.
1WG50, 1WG49
Fuel Tank Capacity - Air Compressor
1.3 gal
Engine Alternator
Yes
Fuel Type - Engine
Diesel
Engine Electrical Start
Yes
Max. Pressure - Air Compressor
175 psi
Engine HP
9.1
Number of Stages - Air Compressor
2
Engine HP - Air Compressor
9.1 hp
Outlet Gender
Female
Engine Oil Capacity
54.4 oz
Pump Oil Capacity
32 oz
Engine Oil Stock Number
1UBX8
Pump Speed
870 RPM
Engine Output Power
9.1 hp
Pump Stock Number
3Z180
Engine Pull Start
Yes
Pump Type - Air Compressor
Piston
Engine Start Type
Electric, Recoil
Standards
CA Codes
Engine Starter Type
Electric, Recoil
Valve Control
Automatically Idles Engine at 175 psi, Pilot, Resumes Full Throttle at 145 psi
Product Description
This Speedaire compressor is a two-stage splash lubricated heavy-duty industrial unit designed for continuous run duty cycle. Each model is equipped with a diesel engine, twin style air receivers, ASME pressure relief valve. In addition, each model is equipped with a needle valve, pilot valve and head unloaders to provide continuous run capabilities
