DAYTON

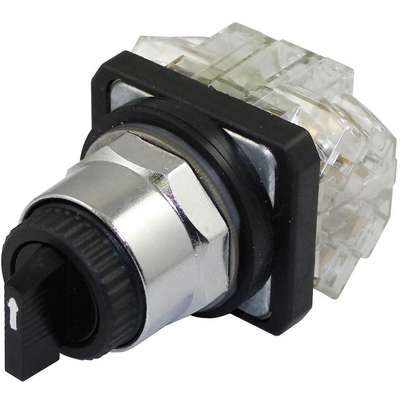

Dayton Non-Illuminated Selector Switch, Size: 30mm, Position: 3, Action: Maintained / Maintained / Maintain

Hover over image to magnify
Selector Switch,3 Pos.,
PI_Asset_1371140
Selector Switch,3 Pos.,
PI_Asset_1371140

#924863-6 | Pkg Qty: 1

$101.13 pkg | $101.13 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Action
Maintained/Maintained/Maintained
NEMA Contact Rating Designation
A600/Q600
Amps AC
10
NEMA Rating
4, 13
Basic Material
Metal
Number of Directions
3
Bezel
Chrome Plate/Zinc Die Cast
Operation Type
Maintained
Bezel Color
Silver
Operator Head Material
Plastic
Bezel Material
Zinc Die Cast
Package Quantity
1
Brand
DAYTON
Position
3
Cam
F
Product Size
30 mm
Color Family
Black
Shipping Weight
.4 lb.
Contact Form
1NO/1NC
Size
30 mm
Contact Rating
10 A @ 600 VAC, 2.5 A @ 600DC
Switch Operation @ Position A
OO
Contact Type
1NO/1NC
Switch Operation @ Position B
OX
IP Rating
65
Switch Operation @ Position C
XO
Item
Non-Illuminated Selector Switch
Switch Operation @ Position D
No Fourth Position
Key Removal
No Key
Type
Non-Illuminated
Lever
Standard
Type of Operator
Lever
Material of Construction
Chrome Plate, Zinc Die Cast
Voltage
600
Mfr. Part Number
30G302
General
Standards
CSA Certified, CE Marked

Product Description

This non-illuminated selector switch is engineered to protect against corrosion and the ingress of solid foreign objects such as falling dirt, circulating dust, settling dust, lint, fibers, and flyings. It also offers protection against the ingress of water from dripping, splashing, and hosedowns. The switch also resists corrosive agents, spraying or seepage of oil and coolants, and damage from the external formation of ice on the enclosure.

Expertly Selected Product Pairings

Selectorsw/Contact Block,1NC/
$28.49 pkg | $28.49 ea
Item: 925655-8 | Pkg Qty: 1

Item Barcode
9248636
Selector Switch,3 Pos.,
 NameItemDescription
Grainger DropshipGrainger Dropship30G302Selector Switch,3 Pos.
UNSPSC CODESUNSPSC CODES39122217
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Selector Switch,3 Pos.
