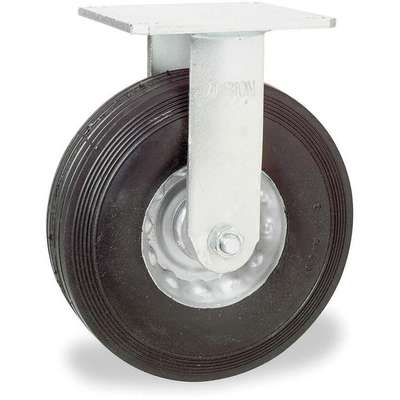

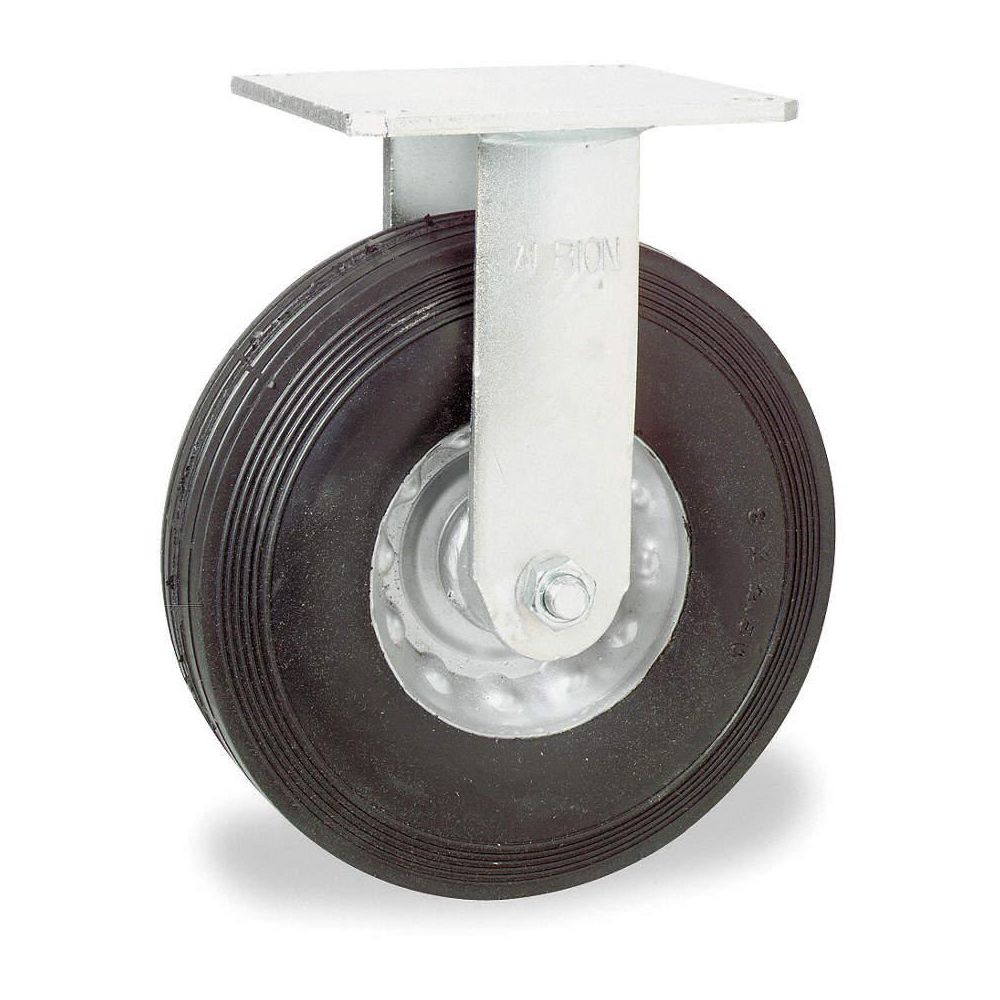

Light- Medium Duty, Rigid Plate Caster with Semipneumatic Wheels; 350 lb. Load Rating, 8" Wheel Dia.

Hover over image to magnify
Rigid Semi-Pneumatic Caster,8
PI_Asset_947818
Rigid Semi-Pneumatic Caster,8
PI_Asset_947818

#924804-9 | Pkg Qty: 1

$58.35 pkg | $58.35 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
3G118
Caster Brake Included
No
Mounting Bolt Diameter
3/8 in.
Caster Brake Type
No Brake Included
Mounting Height
10 in.
Caster Load Rating Range
Light- Medium Duty
Non-Marking
No
Caster Plate Hole Pattern
D
Number of Mounting Holes
4
Caster Plate Size
5 in. x 5-1/2 in.
Number of Wheels
1
Caster Wheel Bearings
Precision Ball
Outside Bolt Hole Spacing
4-1/8 in. x 4-1/2 in.
Caster Wheel/Tread Material
Rubber
Package Quantity
1
Caster/Wheel Tread
Ribbed
Plate Caster Sub-Type
Rigid
Frame Finish
Zinc Plated
Shipping Weight
9.6 lb.
Frame Material
Steel
Wheel Color
Black
Includes Thread Guards
Yes
Wheel Diameter
8 in.
Inside Bolt Hole Spacing
4-1/8 in. x 4-1/2 in.
Wheel Width
2-1/2 in.
Item
Plate Caster with Semipneumatic Wheels
Wheel/Tread Hardness Rating
Soft
Load Rating
350 lb.
General
Caster Frame Material
Steel
Mounting Plate Size
5 in x 5-1/2 in
Caster Product Group
Rigid Caster
Mounting Plate Size (Bolt Hole Pattern)
5 in x 5-1/2 in (D)
Hub Materials
Steel
Sub-Category
Rigid Caster
Hub Position
Symmetrical
Tire Rim Dia.
4 in
Hub Width
3"
Tire Thickness
2 in
Load Rating Range
300 to 999 lb
Wheel Bearing Type
Precision Ball
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Mounting Plate Bolt Hole Pattern
D
Wheel/Tread Material
Rubber

Product Description

These medium-duty plate casters have semipneumatic wheels that will not go flat if they are punctured. The wheels have a thick rubber wall with a nonpressurized air pocket in the center. They are lighter than flat-free wheels, and they require less maintenance than pneumatic wheels because they do not have to have their air pressure checked. However, they are more rigid and absorb less shock and vibration than pneumatic and flat-free wheels. Medium-duty plate casters with semipneumatic wheels are suitable for use in areas where they may encounter sharp debris. They can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
