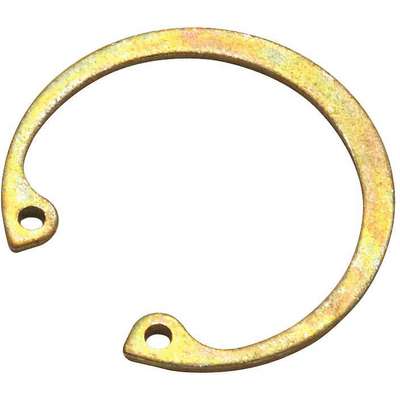

Standard Retaining Ring: Carbon Steel, Yellow Zinc, For 2 1/4 in Bore Dia., 10 PK
#924792-7 | Pkg Qty: 10
Drop Ship Item
Technical Specifications
Key Specifications
General
Product Description
Standard Retaining Ring, Internal, Carbon Steel, Finish Yellow Zinc, For Bore Dia. 2 1/4 in, Free O.D. 2.49 in, Thickness 0.078 in, Thickness Tolerance +/-0.003 in, Radial Wall, Prongs, Height, Fits Groove Dia. 2.382 in, Groove Dia. Tolerance +/-0.006 in, Fits Groove Width 0.086 in, Groove Width Tolerance +0.005 in, Fits Groove Depth 0.066 in, Clearance Dia. (Compressed) 1.69 in, Clearance Dia. (Expanded), Clearance Dia. (Released) 1.82 in, Clearance Dia. Free O.D., Hole Dia. 0.093 in
Expertly Selected Product Pairings
Documents
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5CB69 | Retain Ring, Int,Dia 2 1/ |
 | UNSPSC CODES | 31163202 | |
 | VMRS (ATA) CODES | 053-006-009 | Retain Ring, Int,Dia 2 1/ |
