DORMONT

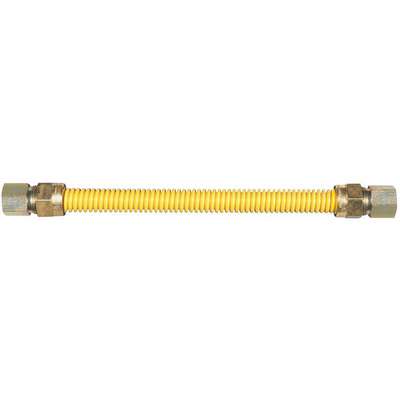

Gas Connector, Stainless Steel w/ Safety Shield Yellow Coating, 24"L x 1/2

Hover over image to magnify
Gas Connector,1/2 x24 In L,150,
Gas Connector,1/2 x24 In L,150,
Double tap image to magnify
Gas Connector,1/2 x24 In L,150,
Gas Connector,1/2 x24 In L,150,

#924765Pkg Qty: 1

$21.85 pkg | $21.85 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 17.
|

Technical Specifications

Key Specifications
Brand
DORMONT
Mfr. Part Number
30C-3232-24
Connection
1/2 in. FIP x 1/2 in. FIP
Outside Diameter
5/8 in.
Item
Gas Connector
Package Quantity
1
Length
24 in.
Shipping Weight
.7 lb.
Material
Stainless Steel w/ Safety Shield Yellow Coating
General
Application
Home Appliances
Hose Fitting B
304 Stainless Steel 5/8 in FNPT
BTU Capacity
150000
Hose Fitting B Material
304 Stainless Steel
Fitting Material
304 Stainless Steel x 304 Stainless Steel
Hose Fitting B Type
FNPT
For Use With
Gas Ranges and Gas Furnaces
Hose Fittings
304 Stainless Steel 1/2 in FNPT x 304 Stainless Steel 1/2 in FNPT
Hose Configuration
Coupled Assembly
Hose Tube Material
304 Stainless Steel
Hose Fitting A
304 Stainless Steel 1/2in FNPT
Max. Working Pressure @ 70 F
0.5 psi
Hose Fitting A Material
304 Stainless Steel
Standards
ANSI Z21.24 CSA 6.10, AGA 3-87, and NY MEA
Hose Fitting A Type
FNPT
Temp. Range
-40 Degrees to 350 Degrees F

Product Description

Range connectors are used to connect gas ranges, furnaces, and other home appliances to a gas line in order to feed gas to the appliance. The connectors are made from corrosion-resistant stainless steel, and they have pipe-threaded fittings installed on each end for connecting to gas lines and equipment.

Gas connectors (also known as gas line connectors) are primarily used to hook up gas-powered appliances to a gas line or source in order to feed gas to the appliance. These hose assemblies consist of lengths of hose with fittings installed on both ends for making connections to equipment.

Documents

Dormont Gas Connector Series 40, 50, 60 Technical Data Sheet

Item Barcode

9247650
Gas Connector,1/2 x24 In L,150,
