TSURUMI

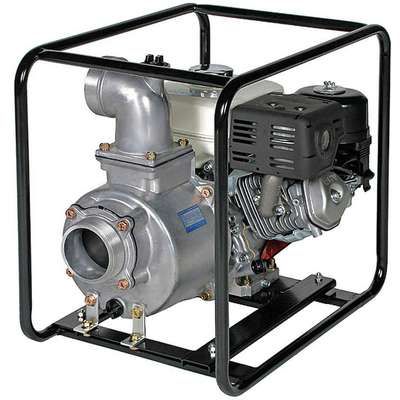

8 HP Aluminum, Cast Iron 242cc Engine Driven Centrifugal Pump, 1.59 gal Tank Capacity

Hover over image to magnify
Engine Driven Centrifugal Pump,
Engine Driven Centrifugal Pump,

#924750-6 | Pkg Qty: 1

$1,730.77 pkg | $1,730.77 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
EPA/CARB
Housing
Aluminum
Base Material
Aluminum
Ignition Type
Recoil
Bearing Type
Ball, Permanently Lubricated and Sealed
Impeller Material
Cast Iron
Brand
TSURUMI
Impeller Type
Semi Open
Casing Adapter
Aluminum
Inlet
4 in. NPT
Check Valve
Buna-N
Item
Engine Driven Centrifugal Pump
Discharge NPT
4 in.
Length
25 in.
Duty
Heavy
Material of Construction
Aluminum, Cast Iron
Engine Brand
Honda
Maximum Diameter Solids
25/64 in.
Engine RPM
3600
Maximum Head
95 ft.
Engine Size
242 cc
Maximum Liquid Temperature
104°F
Engine/Motor Type
Gas
Maximum Pressure
41 psi
Function
Dewatering
Maximum Suction Lift
26 ft.
GPM @ 1 Ft. of Head
474
Mechanical Seal
Silicon Carbide
GPM of Water @ 10 Ft. of Head
432
Mfr. Part Number
TE2-100HA
GPM of Water @ 100 Ft. of Head
25
Motor Type
Gas Engine
GPM of Water @ 15 Ft. of Head
412
Outlet
4 in. NPT
GPM of Water @ 20 Ft. of Head
387
Package Quantity
1
GPM of Water @ 25 Ft. of Head
367
RPM
3600
GPM of Water @ 30 Ft. of Head
342
Roll Bar Frame
Steel
GPM of Water @ 35 Ft. of Head
320
Self-Priming
Yes
GPM of Water @ 40 Ft. of Head
280
Sensor Type
Low Oil
GPM of Water @ 45 Ft. of Head
262
Shaft Material
Stainless Steel
GPM of Water @ 5 Ft. of Head
470
Shaft Seal
Silicon Carbide
GPM of Water @ 50 Ft. of Head
225
Shipping Weight
109 lb.
GPM of Water @ 60 Ft. of Head
175
Solids Handling Capacity
3/8 in.
GPM of Water @ 70 Ft. of Head
125
Temperature Range
33 deg. F to 104 deg. F
GPM of Water @ 80 Ft. of Head
75
Top Material
Aluminum
GPM of Water @ 90 Ft. of Head
45
Type
Centrifugal
Handle
Cage Frame
Volute/Wear Plate
Cast Iron
Height
23-1/2 in.
Warranty
2 yr.
Horsepower
8
Width
18 in.
General
Discharge Dia.
4 in
For Use With
Water
Discharge Gender
Male
Frame Design - Pumps
Full Tubular Frame
Discharge Standard
NPT
Impeller Design
Semi-Open
Flow Rate @ 10 Ft. of Head
432.0 gpm
Includes
Impeller Wrench
Flow Rate @ 20 Ft. of Head
387.0 gpm
Inlet Dia.
4 in
Flow Rate @ 40 Ft. of Head
280.0 gpm
Inlet Gender
Male
Flow Rate @ 60 Ft. of Head
175.0 gpm
Inlet Standard
NPT
Flow Rate @ 80 Ft. of Head
75.0 gpm
Maximum Self-Priming Lift
20.0 ft

Product Description

These remote-location engine-driven trash and utility pumps are gasoline powered so they don't need to be placed near an electrical outlet, and they run for long periods of time between refueling. They transfer large amounts of water containing medium to large solids, and they drain water using an inlet hose so the pumps don't have to be placed in the water that needs to be drained. Pumps have a tubular frame to protect the engine and the pump.

Documents

Tsurumi TE3-50HA Spec Sheet
Tsurumi TE2-100HA Parts List
