SOTERA

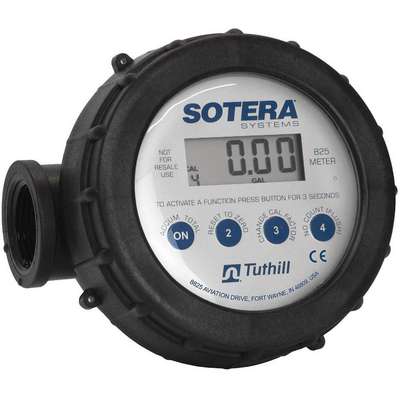

Mechanical Flowmeter: 1 in Connection Size, FNPT, 100 psi Max. Pressure, 2 to 20 gpm

Hover over image to magnify
Flowmeter,100 PSI,20 Gpm,1 In.
PI_Asset_930370
PI_Asset_930371
PI_Asset_930372
PI_Asset_930373
Flowmeter,100 PSI,20 Gpm,1 In.
PI_Asset_930370
PI_Asset_930371
PI_Asset_930372
PI_Asset_930373

#924749-9 | Pkg Qty: 1

$417.85 pkg | $417.85 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
UL Listed
Maximum Pressure
100 psi
Brand
SOTERA
Maximum Temperature (Deg. F)
130
Chamber Material
Polypropylene
Maximum Viscosity
50 SSU
Connection Size
1 in.
Mfr. Part Number
825X700
Connection Type
FNPT
Mfr. Warranty Length
2 yr.
Display
Digital
O-Ring
Buna
Fitting
Brass
Package Quantity
1
Flow Material
Pesticides, Fertilizers, Water, Crop Oil, Gear Oil, Motor Oil, Diesel Fuel, Mineral Spirits, Ethylene Glycol, Mild Acids, Soaps, Detergents, Diesel Exhaust Fluid
Pressure Drop - 100% Flow
6.90 psi
Flow Range
2 to 20 gpm
Pressure Drop - 50% Flow
1.80 psi
Flowmeter Group
Mechanical Flowmeter
Resetable Cumulative Totalizer
999 gal.
For Pipe Size
1 in.
Seal Material
Buna N
Height
5 in.
Shipping Weight
1.8 lb.
Housing Material
Polypropylene
Thread
NPT
Item
Mechanical Flowmeter
Type
Liquid
Length
5-1/4 in.
Wetted Materials
EPDM, Polyproplyne
Master Totalizer
999,999 gal.
Width
5-1/2 in.
General
Accuracy (%)
+/-0.2
GPM Max.
20 gpm
Application
Agriculture, Construction, Industrial, Mining, Municipalities
Pressure Drop - 100% Flow (PSI)
6.9 psi
Flowmeter Product Group
Mechanical Flowmeter
Pressure Drop - 50% Flow (PSI)
1.8 psi

Product Description

Ideal for end of hose or inline use, this SOTERA mechanical flowmeter can store and display the current flow amount (total) or the cumulative flow amount (totalizer) in any of 6 user-specified units. Model can be calibrated without dispensing fluid by just selecting a calibration factor from the 20 stored settings Flowmeter has a durable, corrosion-resistant body and an easy-to-read LCD.
