CAMPBELL HAUSFELD

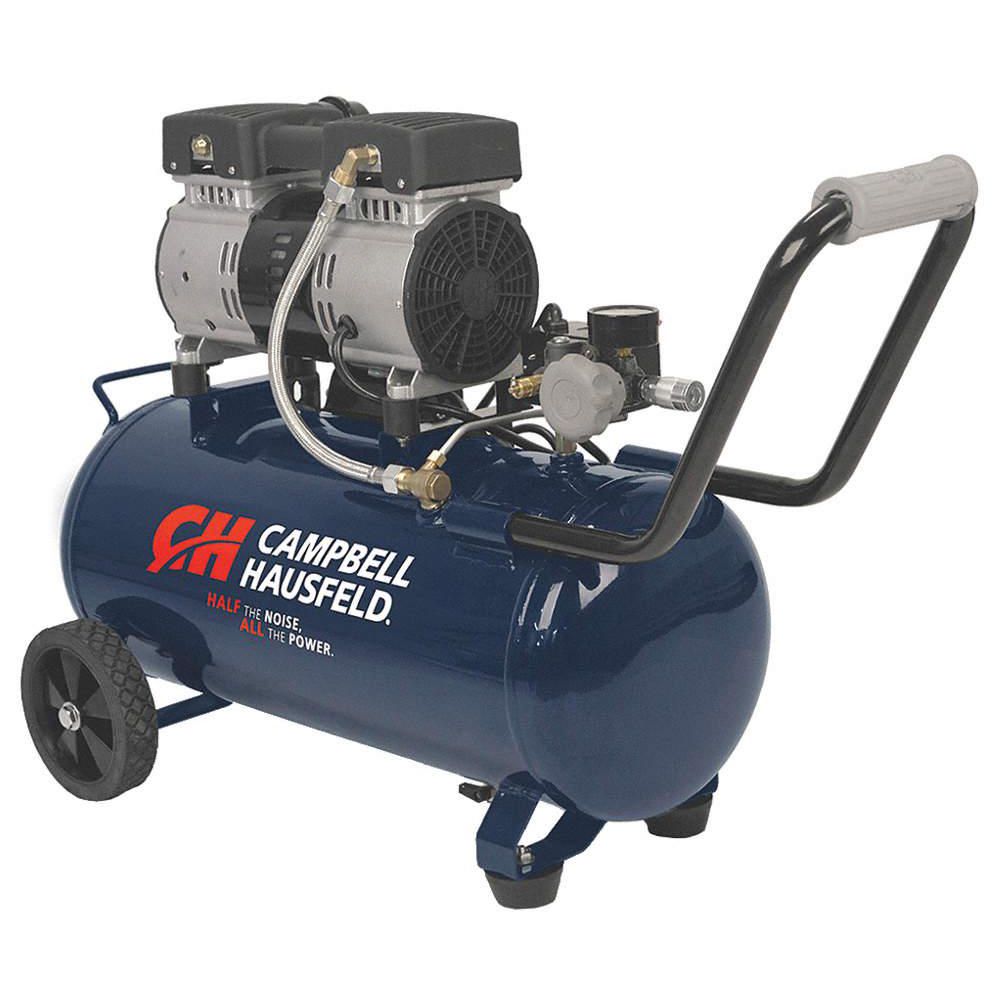

1.0 HP, 120VAC, 8 gal. Portable Electric Air Compressor, 125 psi
Hover over image to magnify
#924748-8 | Pkg Qty: 1
$400.74 pkg | $400.74 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Outlet
1/4 in.
Maximum Pressure
125 psi
Air Consumption
scfm
Mfr. Part Number
DC080500
Average Pump Life
2,000 hr.
Overall Height
23-5/16 in.
Brand
CAMPBELL HAUSFELD
Overall Length
27 in.
Cylinder Material
Anodized Aluminum
Overall Width
11-45/64 in.
Free Air CFM @ 90 PSI
2.4
Package Quantity
1
Free Air CFM @ Max Pressure
2
Product Weight
68 lb.
Full Load Amps
7
Shipping Weight
67 lb.
Horsepower
1
Tank Size
8.0 gal.
Input Voltage
120 VAC
Tank Style
Hot Dog
Item
Portable Electric Air Compressor
Tank Type
Hot Dog
Lubrication Type
Oil Free
Voltage
120 VAC
General
Air Tank Size
8 gal
Input Voltage - Air Compressor
120V AC
Air Tank Style
Hot Dog
Lubrication Type - Air compressor
Oil Free
Avg. Pump Life
2,000 hr
Max. Pressure - Air Compressor
125 psi
Compressor Lubrication Type
Oil Free
Outlet Gender
Female
Free Air CFM @ 90 PSI - Air Compressor
2.4
Output Power
1 hp
Free Air CFM @ Max. Pressure - Air Compressor
2.0
Sound Level Range
Quiet (less than 75 dBA)
Free Air Flow Rate
2.4 cfm
Standards
ETL
HP
1.0
Tank Size - Air Compressor
8.0 gal
HP - Air Compressor
1.0 hp
Tank Style - Air Compressor
Hot Dog
Includes
1/4 in Outlet Coupler, 1/4 in Turn Ball Valve Drain, On/Off Pressure Switch, Outlet Regulator and Gauge, Pressure Relief Valve, Tank Pressure Gauge, Wheels
dBA @ 3 Feet
68.0
Product Description
You can take these portable electric air compressors with you to the jobsite, workshop, and wherever else they’re needed. Oil free pump helps reduce maintenance.
