REDHAT

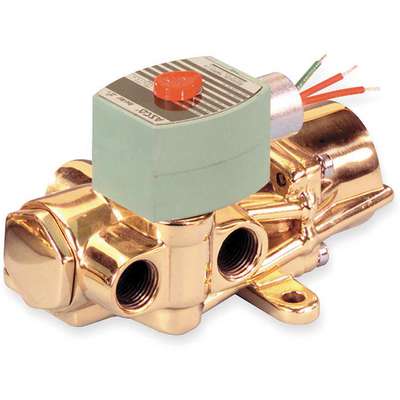

Solenoid Valve: 3/8 in Pipe Size - Valves, 120V AC, 10 psi Min. Op Pressure Differential, Brass, F
Hover over image to magnify
#924664-2 | Pkg Qty: 1
$819.61 pkg | $819.61 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA
NEMA Rating
1, 2, 3, 3S, 4, 4X
Body Material
Brass
Overall Height
4-1/16 in.
Brand
REDHAT
Overall Length
4-13/16 in.
Coefficient of Volume
0.8
Overall Width
3-1/8 in.
Configuration
Single
Package Quantity
1
Electrical Connections
1/2 in. Conduit w/18 in. Leads
Pipe Size
3/8 in.
Hz
50/60
Shipping Weight
4.85 lb.
Item
Solenoid Valve
Valve Design
4-Way/2-Position
Maximum Fluid Temperature
180°F
Voltage
120 VAC
Media Type
Air/Inert Gas, Light Oil and Water
orifice Dia._spec_s
3/8 in.
Mfr. Part Number
8344G001
General
Body Material - Valves
Brass
Max. Operating Pressure Differential Water
250 psi
Center Line Pipe Center Size
2 3/16 in
Media - Valves
Air, Inert Gases, Light Oil, Water
Coil Enclosure
Watertight No Junction Box
Min. Operating Pressure Differential
10 psi
Coil Insulation Class
F
Pipe Size - Valves
3/8 in
Environmental Rating - Valves
Indoor, Outdoor
Seal Material - Valves
NBR
Max. Operating Pressure Differential Air/Inert Gas
250 psi
Solenoid Valve Product Group
Solenoid Valve
Max. Operating Pressure Differential Light Oil
250 psi
Valve Ways and Positions
4-Way/2-Position
Product Description
This solenoid valve is suitable for use with air and inert gases. It is rated for indoor and outdoor installation.
Item Barcode
Solenoid Valve,Brass,Universal,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 24W670 | Solenoid Valve,Brass, |
 | UNSPSC CODES | 40141605 | |
 | VMRS (ATA) CODES | 053-006-009 | Solenoid Valve,Brass, |
