SQUARE D

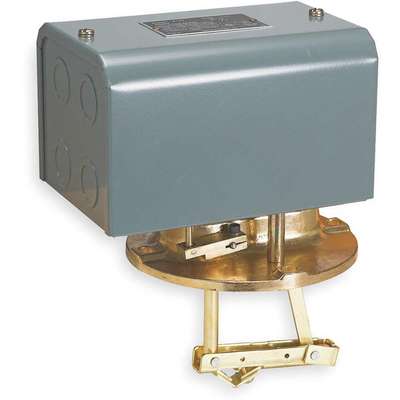

Square D Vertical Open Tank Mechanical Alternator Close Tank, Close On Rise, 5-1/8
Hover over image to magnify
#924663-9 | Pkg Qty: 1
$687.84 pkg | $687.84 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
10 A
Length
6.84 in.
Amps
1899-12-31 10:00:00
Maximum Current
600A
Body Material
Steel
Maximum Pressure
50 psi
Brand
SQUARE D
Maximum Voltage
600 V
Conduit Size
1/2 in. to 3/4 in.
Mfr. Part Number
9038DG8
Contact Form
DPST
Mounting
Vertical Open Tank
Contact Type
2 Pole, Close On Rise
Mounts
Top
Electrical Connections
Screw Clamp
NEMA Rating
1
Float Position
Below
Operating Temperature Range
-2 deg. F to 220 deg. F
Float Travel
8-3/4 in.
Overall Length
3.86 in.
HP @ 1 Phase - 115 V
2
Package Quantity
1
HP @ 1 Phase - 120 V
2
Shipping Weight
9.04 lb.
HP @ 1 Phase - 230 V
3
Switch Function
Close On Rise
HP @ 1 Phase - 240 V
3
Tank Connection Size
5-1/8 in.
HP @ 3 Phase - 230 V
5
Type
NEMA 1
HP @ 3 Phase - 240 V
5
Voltage
600
Height
9.82 in.
Warranty
2ACD1
Item
Mechanical Alternator Close Tank
Width
6-1/2 in.
General
Ambient Temp. Range
-22 To 220
Standards
UL, CSA
Float Rod Angle
45░
Product Description
This float switch is designed to control small motor loads directly. It helps to provide a simple, positive means of mechanically altering two pumps or motors. Class 9036 switches are single-lever operated. Rod and float sold separately.
Item Barcode
Mechanical Alternator Close
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2FJ16 | Mechanical Alternator |
 | UNSPSC CODES | 39122219 | |
 | VMRS (ATA) CODES | 053-006-009 | Mechanical Alternator |
